- Power & Speed: With 34 NM max torque and 280 rpm free speed, you can count on the 105 Series to deliver impressive power.
- Access & Reach: The 105 Series mini ratchet wrenches are small and nimble enough to tackle jobs in both tight and hard to reach places.
- Durable: With an aluminum housing and steel head construction, the 105 Series has improved durability and consistent performance.
- Increased Safety: The ball dent anvil found on each member of the 105 Series provides a more secure link to the socket, increasing operator safety.

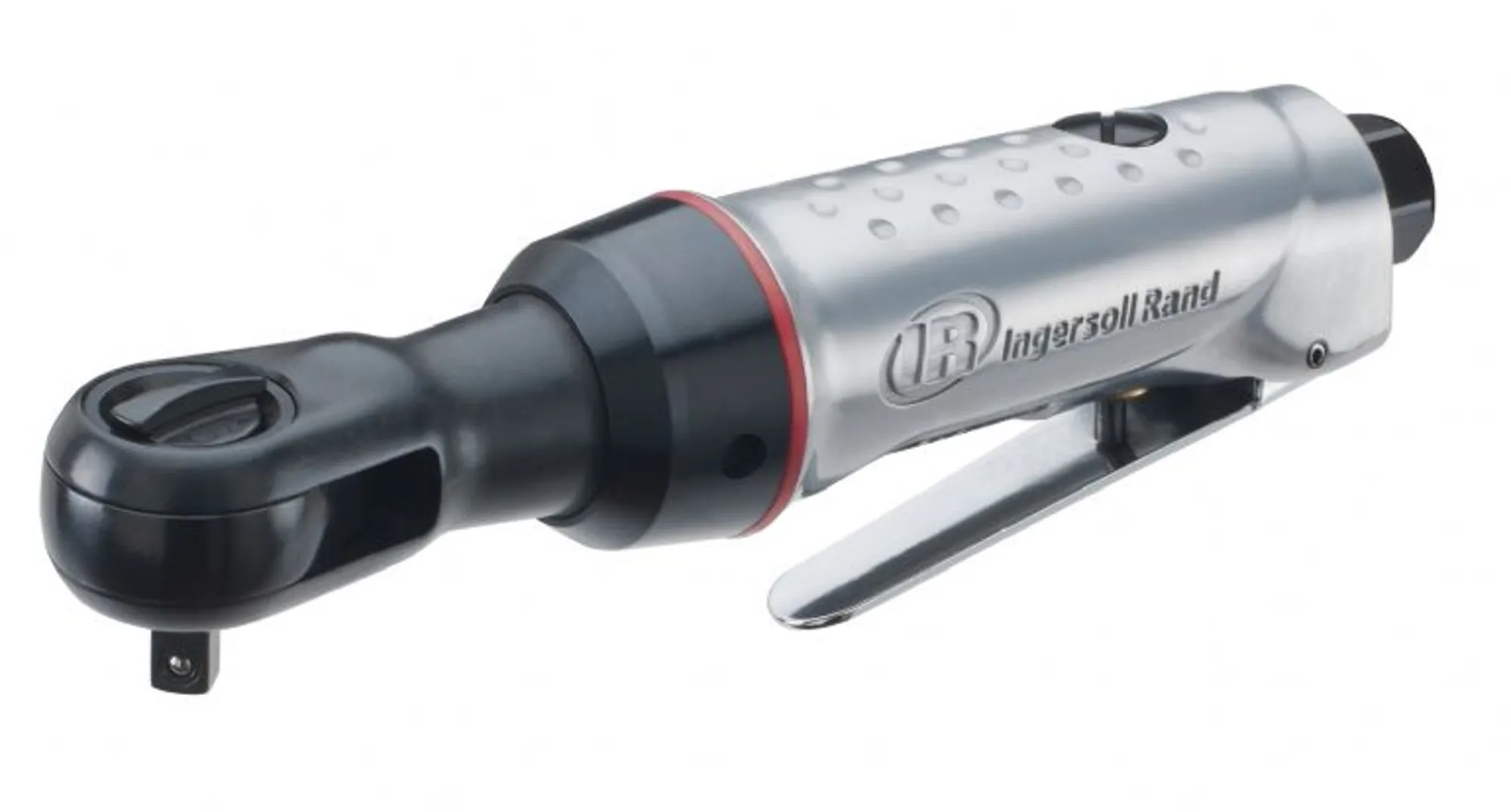

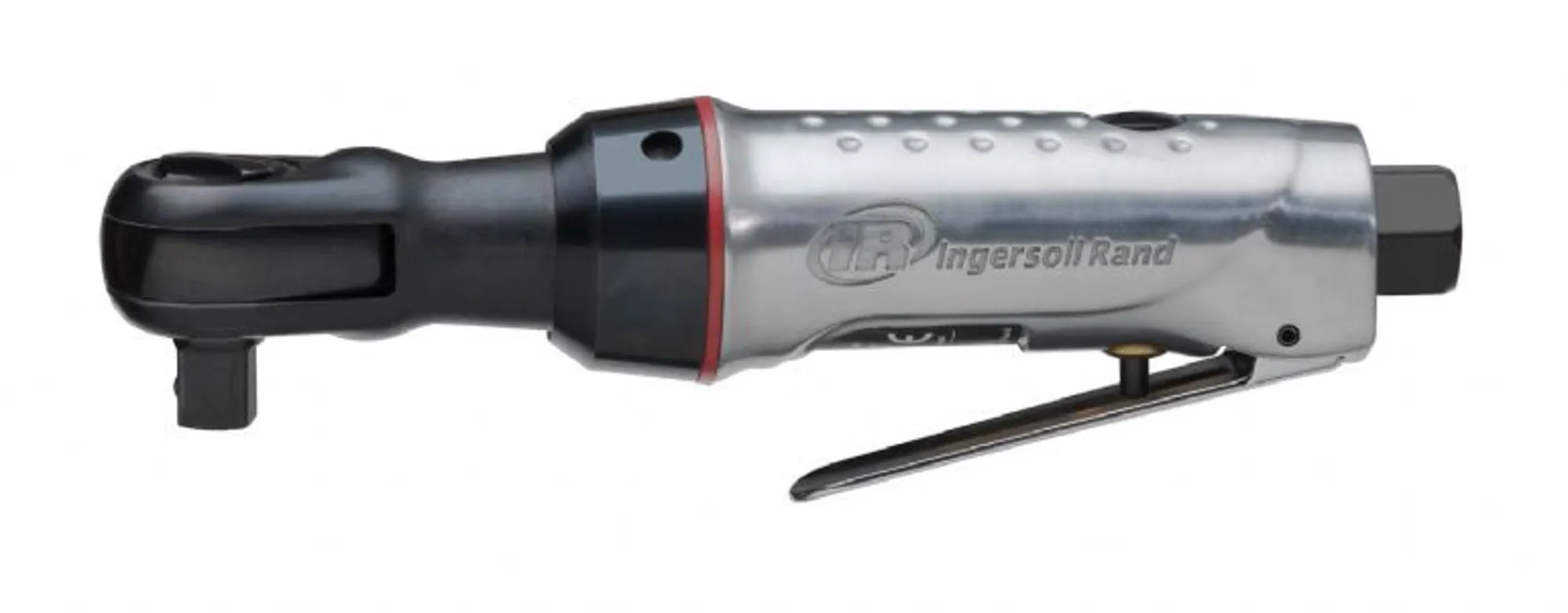

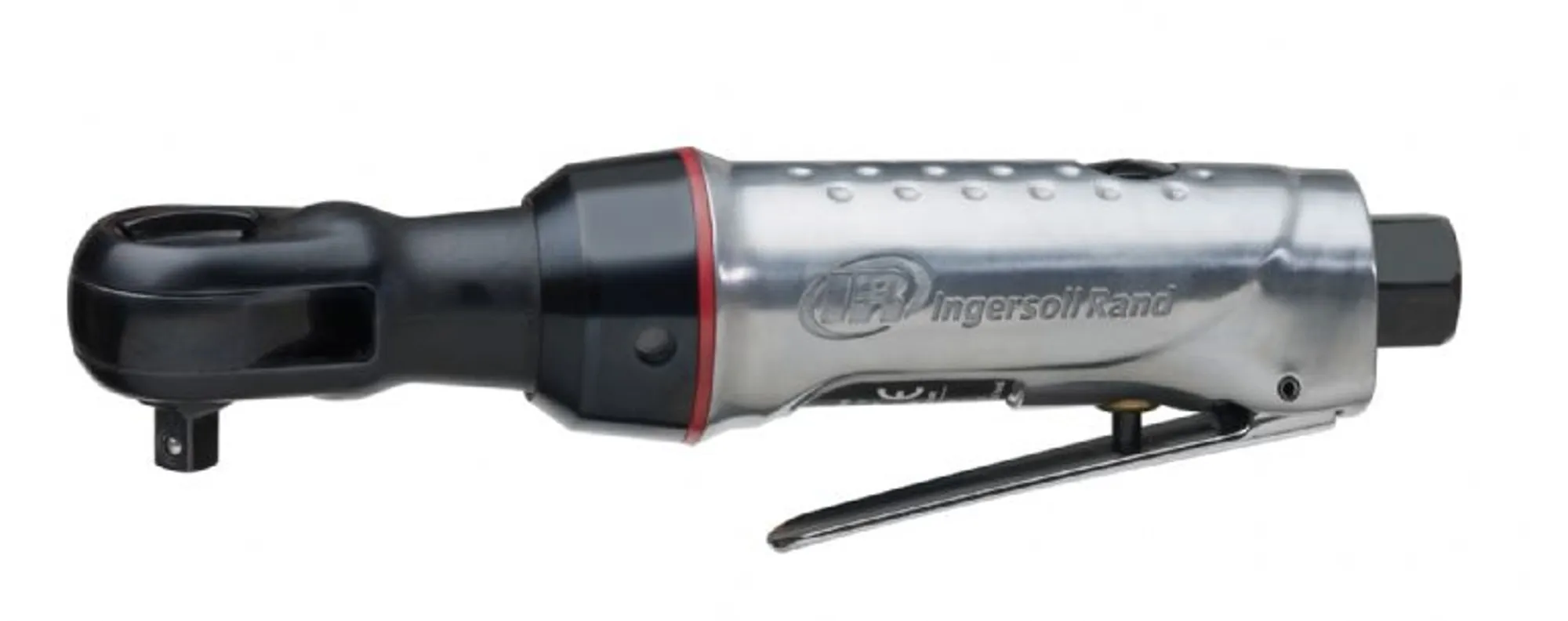

105 Series Mini Air Ratchet Wrench

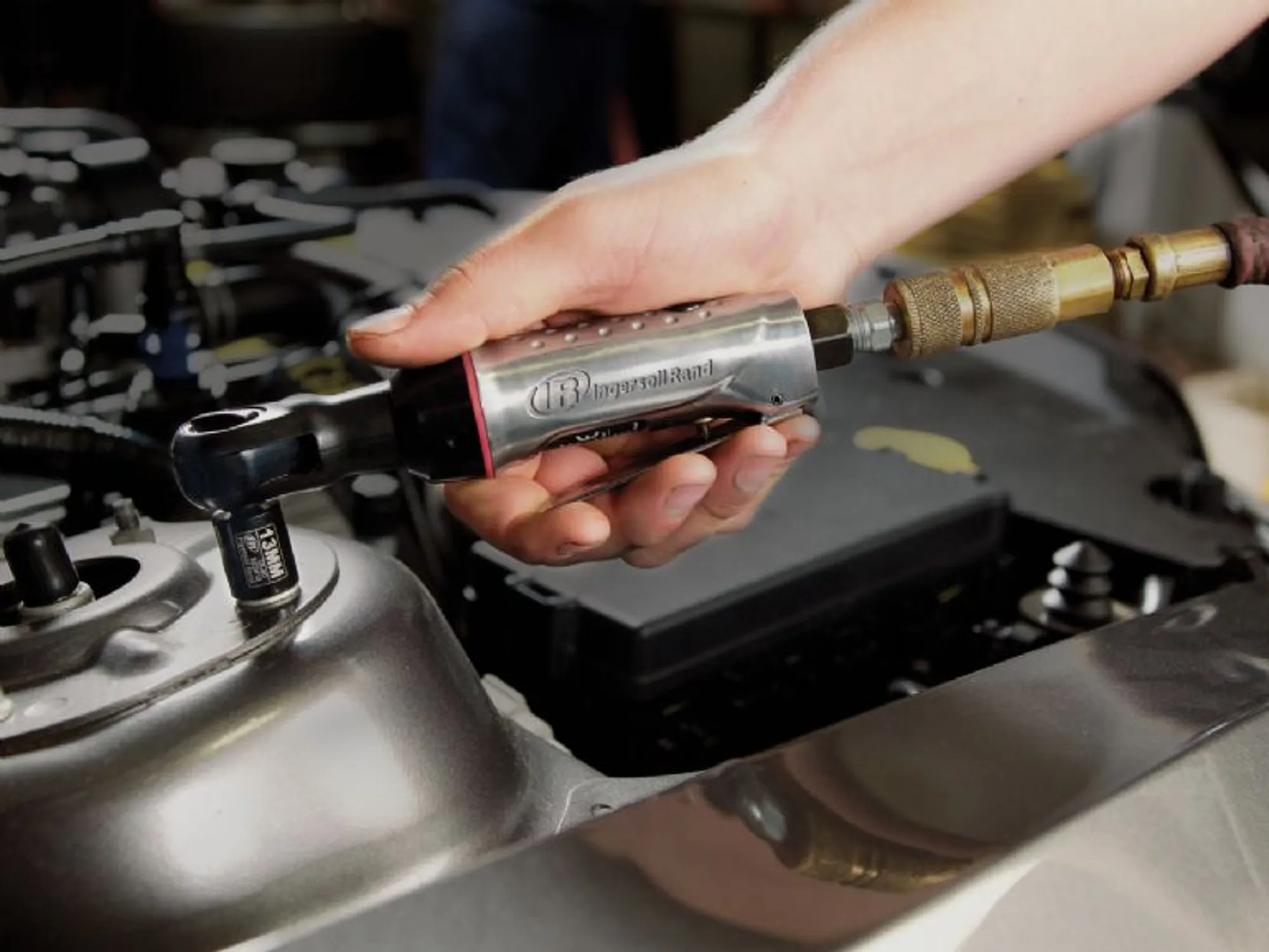

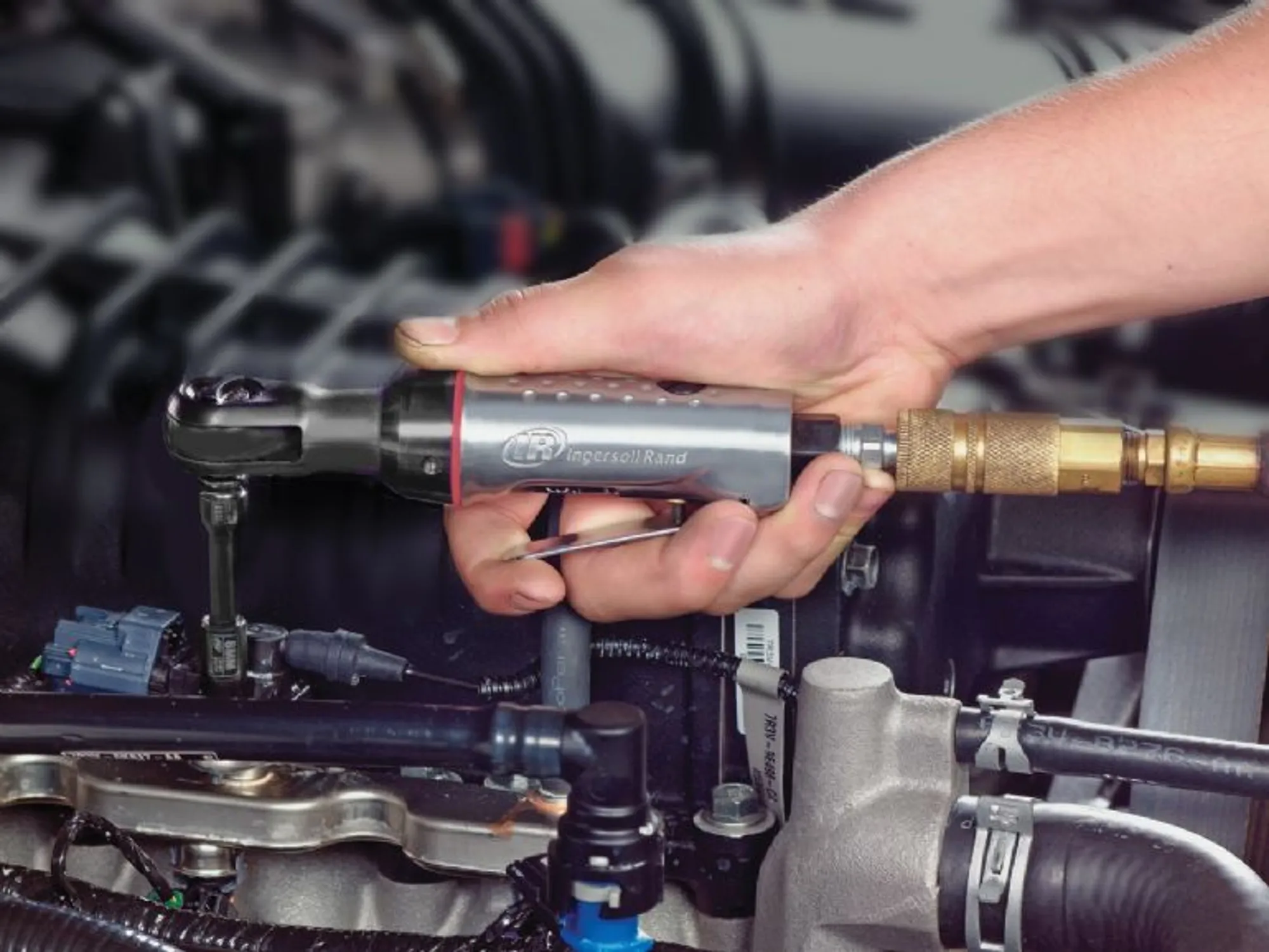

The 105 Series air ratchets are small, durable, and easy to handle for vehicle repair technicians. The low profile forward/reverse control has a wide diameter for easy gripping and increased control in confined spaces.
Model | Drive Size (in) | Switch Type (actuation) | Free Speed (rpm) | Recomm. Torque Range (ft-lb) | Recomm. Torque Range (Nm) | Max Torque (ft-lb) | Max Torque (Nm) | Free Speed Sound Level (dBA) | Vibration Level m/s2 (K) | Weight (lb) | Weight (kg) | Length (in) | Length (mm) | Average Air Consumption (cfm) | Average Air Consumption (L/min) | Free Speed Air Consumption (cfm) | Free Speed Air Consumption (L/min) | Air Inlet NPTF (in) | Min Hose Size (in) | Min Hose Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
105-D2 | 1/4 | Lever actuation; variable speed | 250 | 5-20 | 7-27 | 25 | 34 | 81.8 | 5.1 (0.9) | 1.4 | 0.64 | 7.3 | 186 | 3 | 85 | 18 | 510 | 1/4 | 3/8 | 10 |
105-D3 | 3/8 | Lever actuation; variable speed | 250 | 5-20 | 7-27 | 25 | 34 | 81.8 | 5.1 (0.9) | 1.4 | 0.64 | 7.3 | 186 | 3 | 85 | 18 | 510 | 1/4 | 3/8 | 10 |

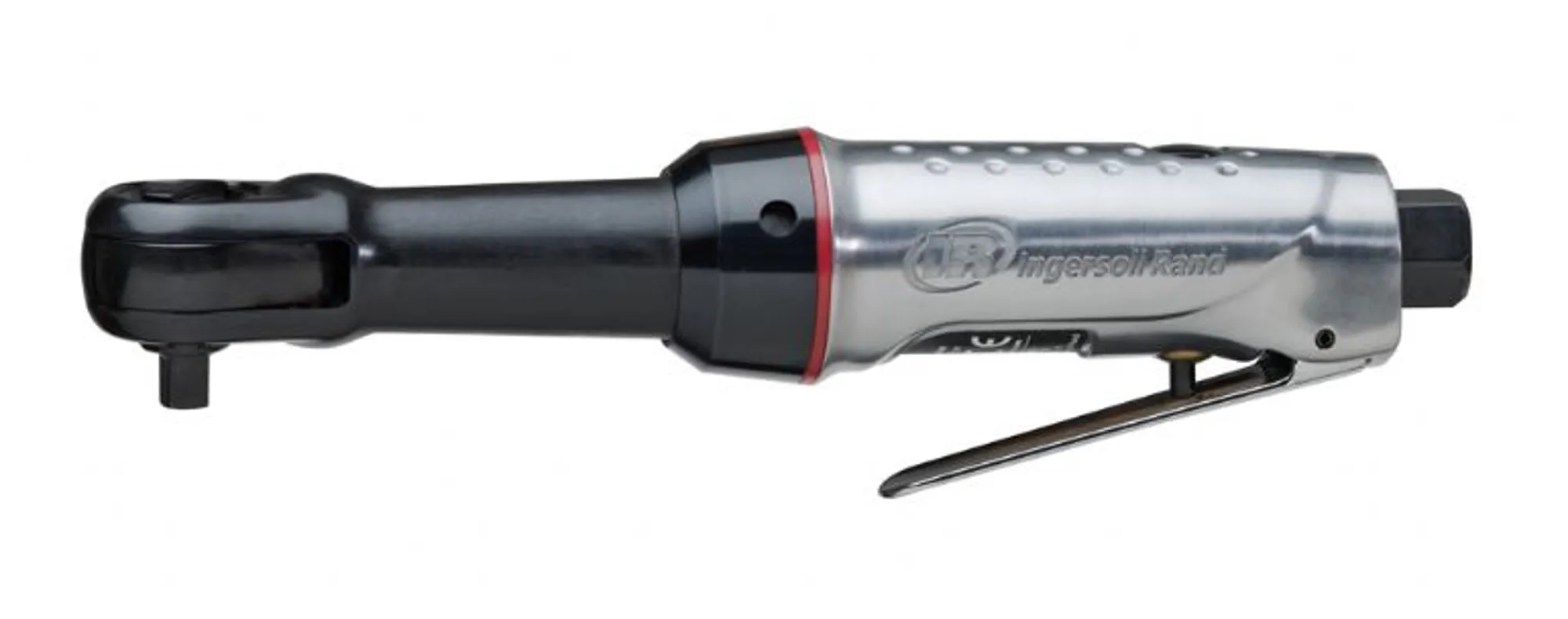

105-L2 | 1/4 | Lever actuation; variable speed | 250 | 5-20 | 7-27 | 25 | 34 | 81.6 | 3.7 (0.9) | 1.56 | 0.71 | 8.41 | 214 | 3 | 85 | 18 | 510 | 1/4 | 3/8 | 10 |
107XPA - 1077XPA Air Ratchet Wrench
- 73.2 Nm (54 ft-lbs) of MAX Torque
- 1/2" and 3/8" Drive Size Options
- 1.25 kg (2.75 lbs)

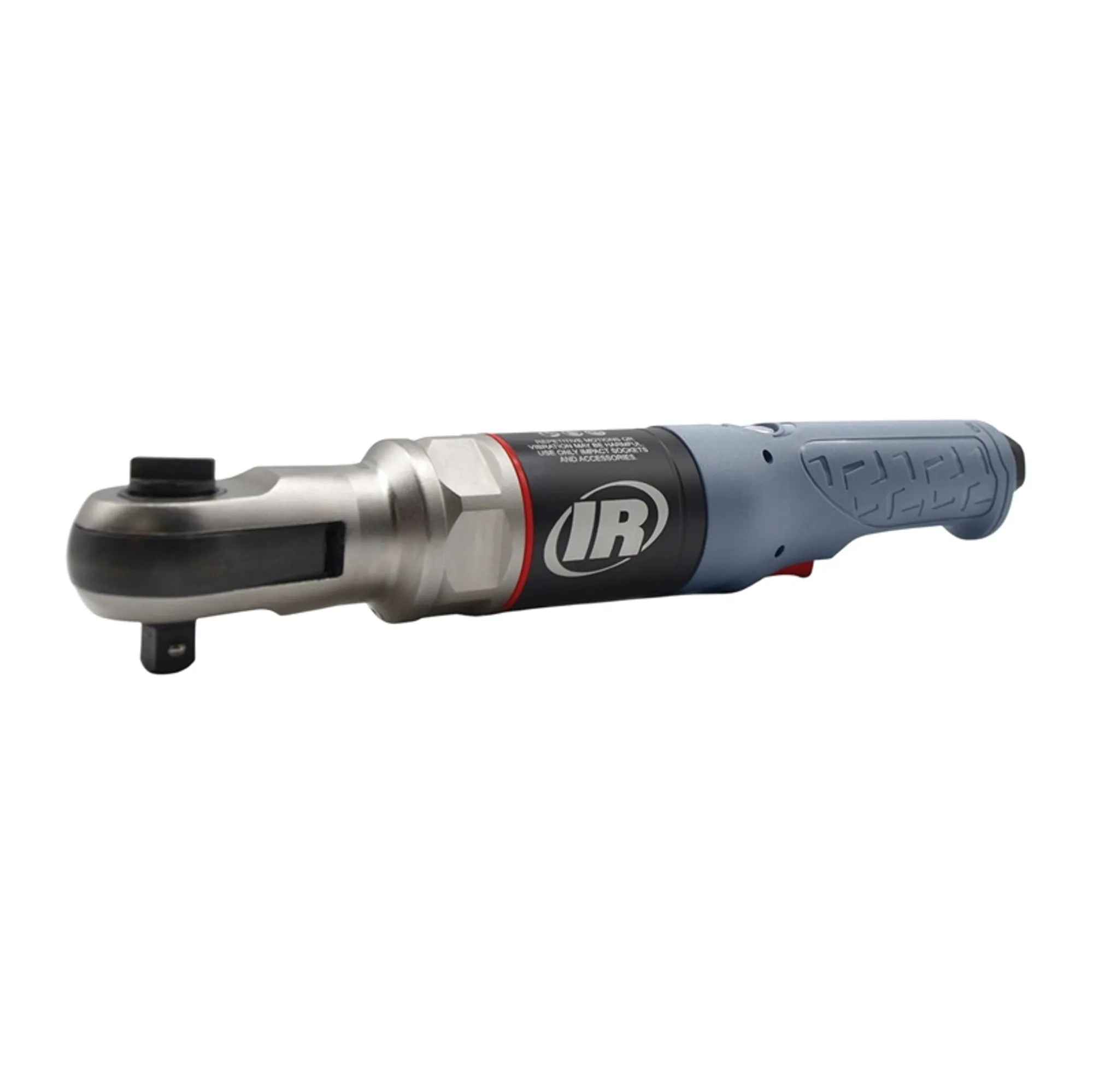

1211MAX Series High Speed Air Ratchet
- 89.5 Nm (66 ft-lbs) of MAX Torque
- 1/2" and 3/8" Drive Size Options
- 1.36 kg (3 lbs)
R3130 & R3150
- 73.2 Nm (54 ft-lbs) of MAX Torque
- 3/8" and 1/2" Drive Size Options
- 1.58 kg (3.5 lbs)
1105MAX Series Premium Mini Ratchet Wrench
- 40.6 Nm (30 ft-lb) of MAX Torque
- 1/4" and 3/8" Drive Size Options
- 0.65 kg (1.43 lbs)
