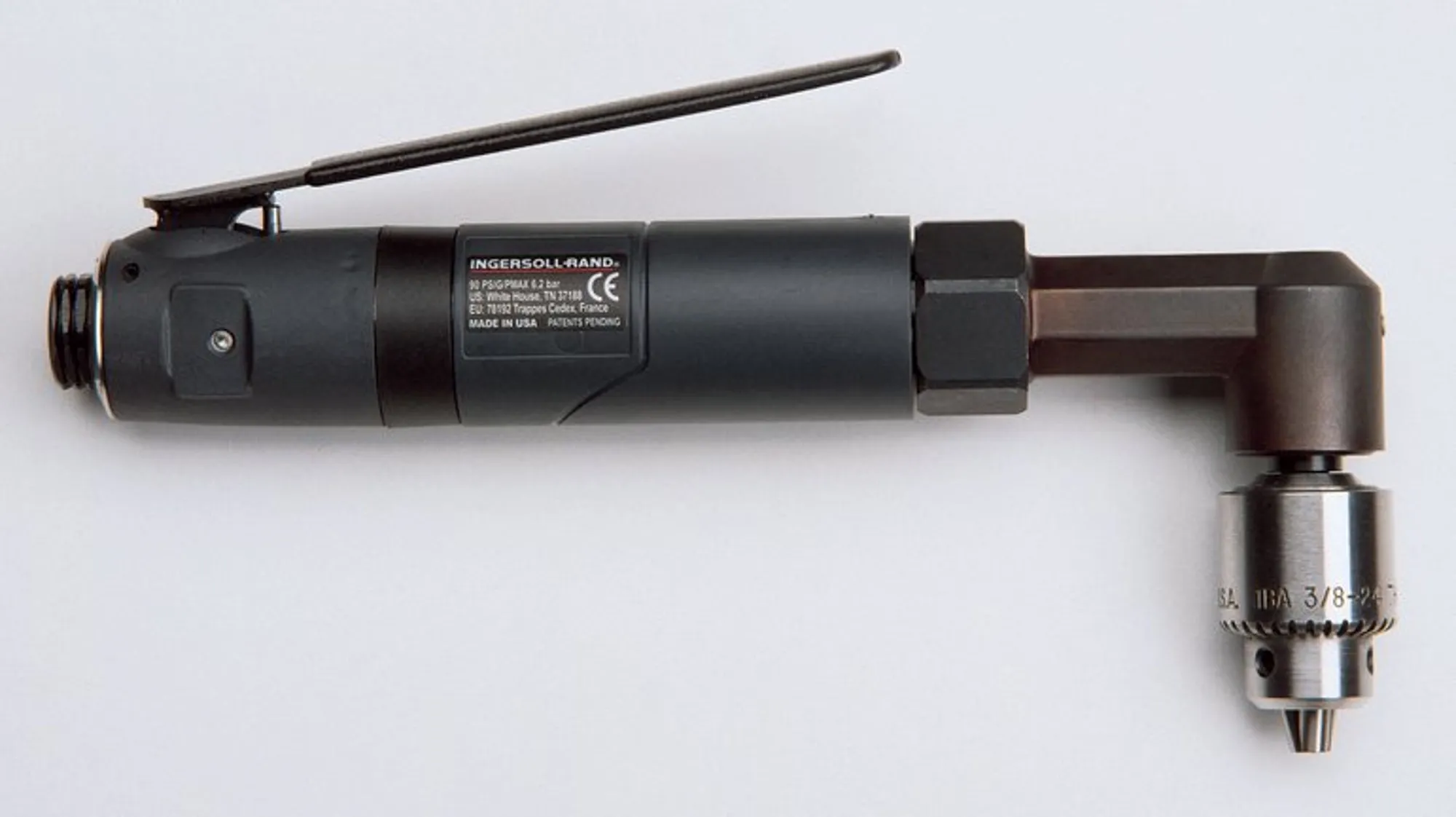

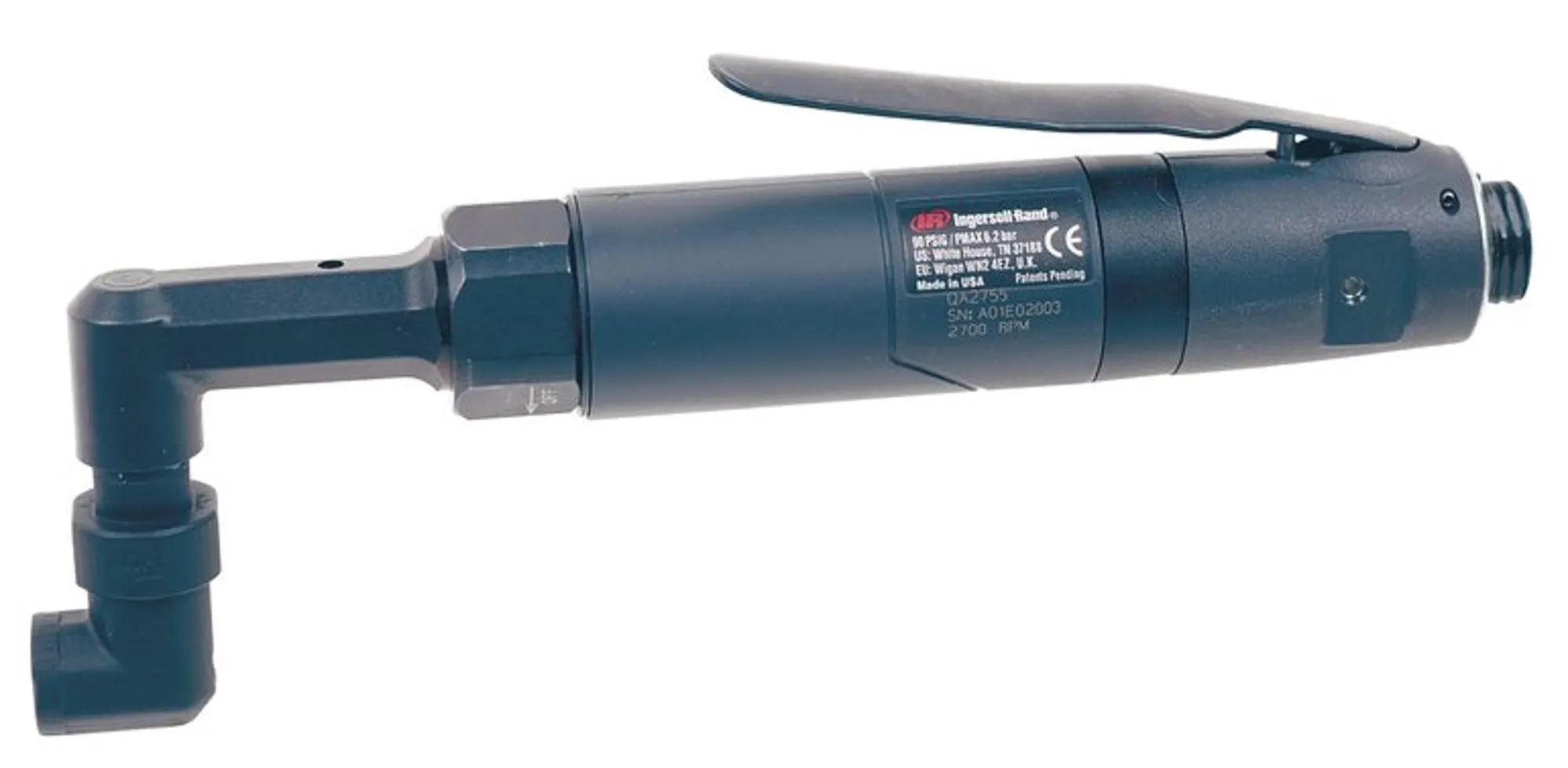

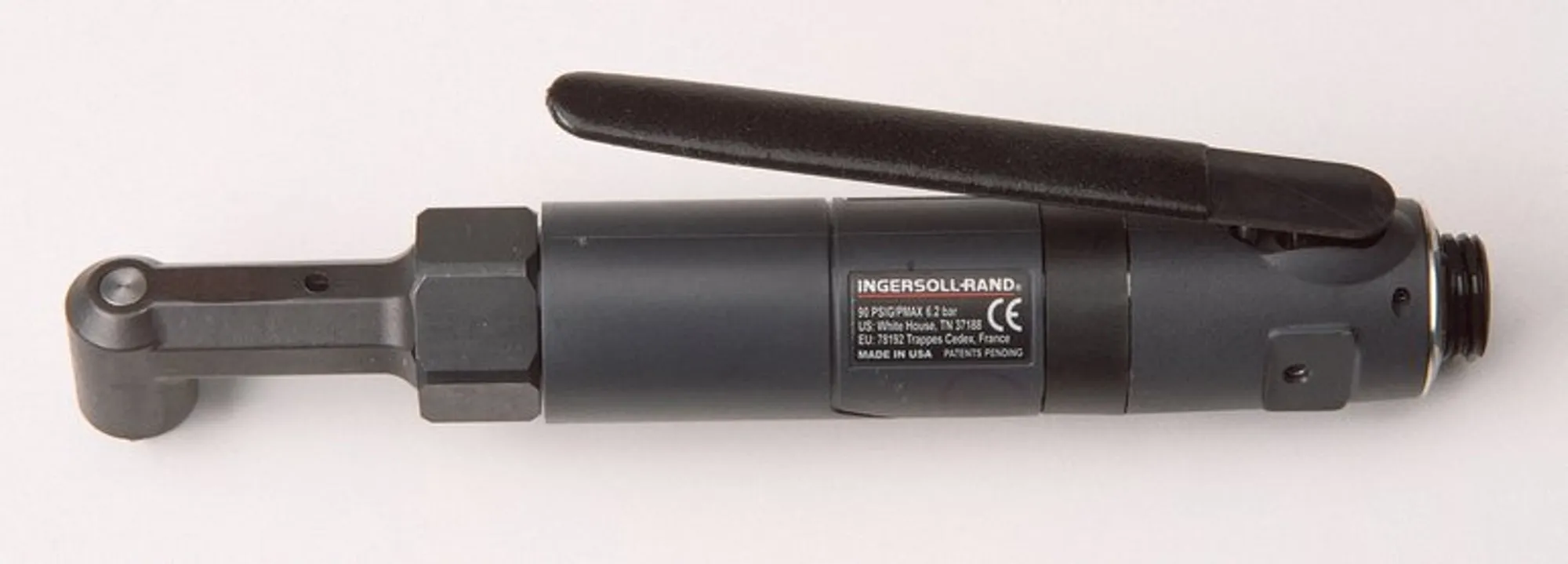

Q2 系列弯角钻

PTL-En-Product-Photo-q2-angle

PTL-En-Product-Photo-q2-angle-V2

PTL-En-Product-Photo-q2-angle-V3

PTL-En-Product-Photo-q2-angle

PTL-En-Product-Photo-q2-angle-V2

PTL-En-Product-Photo-q2-angle-V3

尺寸紧凑、重量轻。这款工具尺寸更小但动力更强劲，能够用更少的时间完成工作。生产用弯角钻提供 360 度头旋转，方便工具、任务和用户调整到理想方向。

需求服务、备件或支持

人机工程学设计外壳提供可靠的操作员握柄。
具有无级变速功能，可实现慢速开始和高速钻孔
最大 TIR 达 0.005”，确保关键应用精确钻孔。
速度：500 至 3500 RPM
最大堵转扭矩：110.1 in.-lbs./ 12.5 Nm
弯角头可 360 度旋转，允许将节流阀调节到最佳方向
模块化设计，最大限度提升零件互换性，维护方便、成本低

Model	Actuation	Reversible	Max. Working Torque (Nm)	Max. Working Torque (in-lb)	Free Speed (rpm)	Weight with Chuck (kg)	Weight with Chuck (lb)	Length with Chuck (mm)	Length with Chuck (in)	Bit Holder Capacity (in)	Bit Holder Capacity (mm)	Angle Head Heights w/ Collet (mm)	Angle Head Heights w/ Chuck (mm)	Angle Head Heights w/ Collet (in)	Angle Head Heights w/ Chuck (in)	Side to Center (mm)	Side to Center (in)	Sound Level dB(A)	Rated Power (hp)	Head Style	Air Inlet	cfm
QA0539D	Lever Start	No	12.5	110	500	0.6	1.4	221	8.7	3/16 collet w/ 9/32-40 Thread	N/A	27	N/A	1.1	N/A	10	0.4	75	0.25	90 Degree Small Head	1/4 in. NPT	16
QA0559D	Lever Start	No	12.5	110	500	0.6	1.4	221	8.7	1/4 in.- 28 Female Thread	N/A	27	N/A	1.1	N/A	10	0.4	75	0.25	90 Degree Small Head	1/4 in. NPT	16
QA0579D	Lever Start	No	12.5	110	500	0.6	1.4	221	8.7	3/8 in. -28 Male Thread		27	N/A	1.1	N/A	10	0.4	75	0.25	90 Degree Small Head	1/4 in. NPT	16
QA0854D	Lever Start	No	6.4	57	850	0.67	1.47	268	10.55	1/4 in.- 28 Female Thread	N/A	34	N/A	1.3	N/A	8.3	0.3	75	0.25	45 Degree Small Head	1/4 in. NPT	16
QA0859D	Lever Start	No	7.6	67	850	0.6	1.4	221	8.7	1/4 in.- 28 Female Thread	N/A	27	N/A	1.1	N/A	10	0.4	75	0.25	90 Degree Small Head	1/4 in. NPT	16
QA1219D	Lever Start	No	4.9	43	1270	0.94	2.07	238	9.35	1/4	6	N/A	76	N/A	3	13.6	0.54	75	0.25	90 Degree Chuck	1/4 in. NPT	16
QA1239D	Lever Start	No	4.5	39	1270	0.6	1.4	221	8.7	3/16 collet w/ 9/32-40 Thread	N/A	27	N/A	1.1	N/A	10	0.4	75	0.25	90 Degree Small Head	1/4 in. NPT	16
QA1739D	Lever Start	No	3.6	32	1750	0.6	1.4	221	8.7	3/16 collet w/ 9/32-40 Thread	N/A	27	N/A	1.1	N/A	10	0.4	75	0.25	90 Degree Small Head	1/4 in. NPT	16
QA2119D	Lever Start	No	2.8	24	2100	0.94	2.07	238	9.35	1/4	6	N/A	76	N/A	3	13.6	0.54	75	0.25	90 Degree Chuck	1/4 in. NPT	16
QA2719D	Lever Start	No	2.2	19	2700	0.94	2.07	238	9.35	1/4	6	N/A	76	N/A	3	13.6	0.54	75	0.25	90 Degree Chuck	1/4 in. NPT	16
QA2739D	Lever Start	No	2.3	20	2700	0.6	1.4	221	8.7	3/16 collet w/ 9/32-40 Thread	N/A	27	N/A	1.1	N/A	10	0.4	75	0.25	90 Degree Small Head	1/4 in. NPT	16
QA2754D	Lever Start	No	1.9	17	2700	0.67	1.47	268	10.55	1/4 in.- 28 Female Thread	N/A	34	N/A	1.3	N/A	8.3	0.3	75	0.25	45 Degree Small Head	1/4 in. NPT	16
QA2759D	Lever Start	No	2.3	20	2700	0.6	1.4	221	8.7	1/4 in.- 28 Female Thread	N/A	27	N/A	1.1	N/A	10	0.4	75	0.25	90 Degree Small Head	1/4 in. NPT	16
QA3519D	Lever Start	No			3500			238	9.35	1/4	6.35							75	0.25	Chuck	1/4 in. NPT	16
QA3555D	Lever Start	No			3500			229	9.03	1/4 in.- 28 Female Thread	N/A							75	0.25	90 x 90 Small Head	1/4 in. NPT	16
QA3559D	Lever Start	No	1.8	16	3500	0.6	1.4	221	8.7	1/4 in.- 28 Female Thread	N/A	27	N/A	1.1	N/A	10	0.4	75	0.25	90 Degree Small Head	1/4 in. NPT	16
