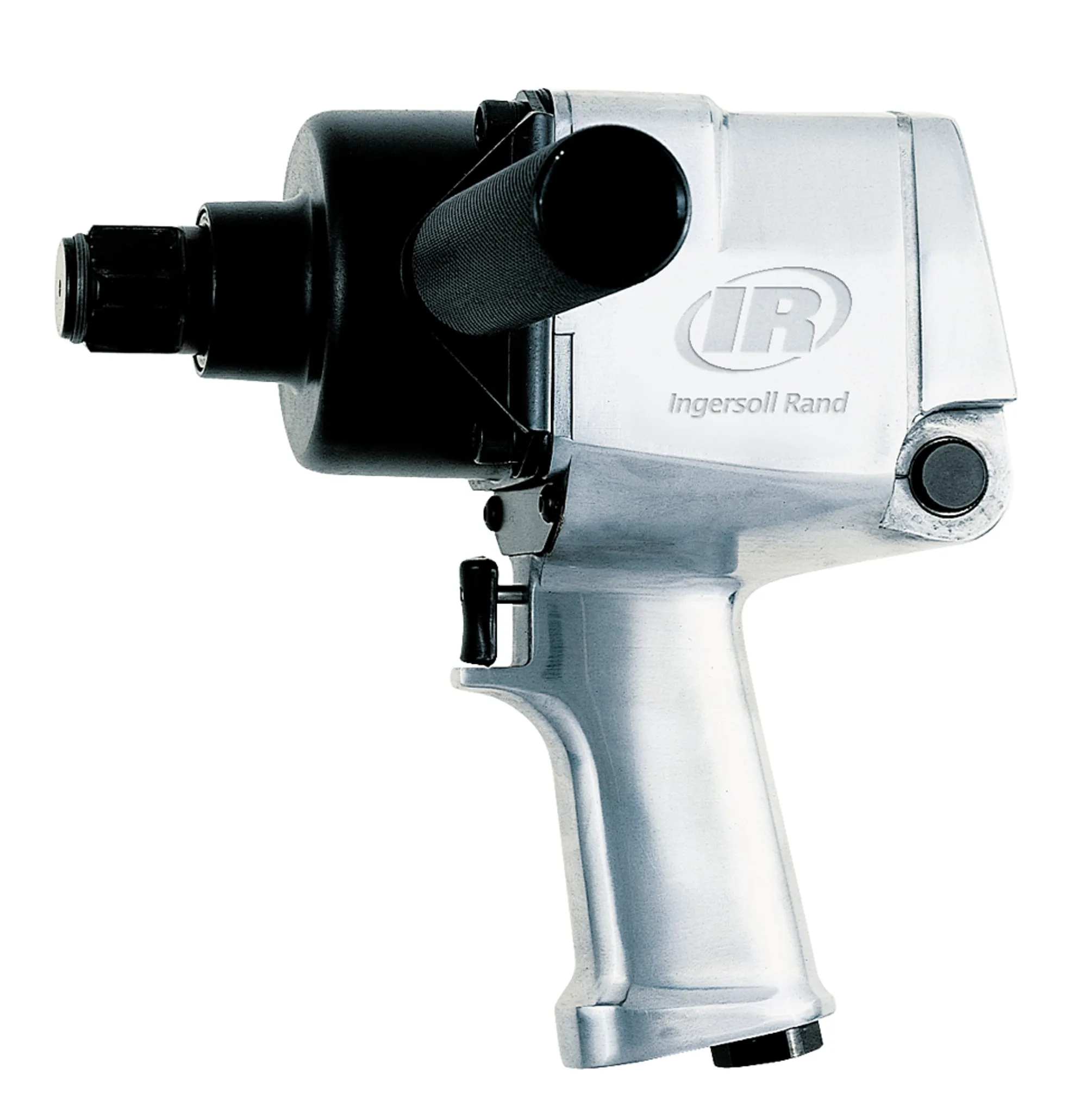

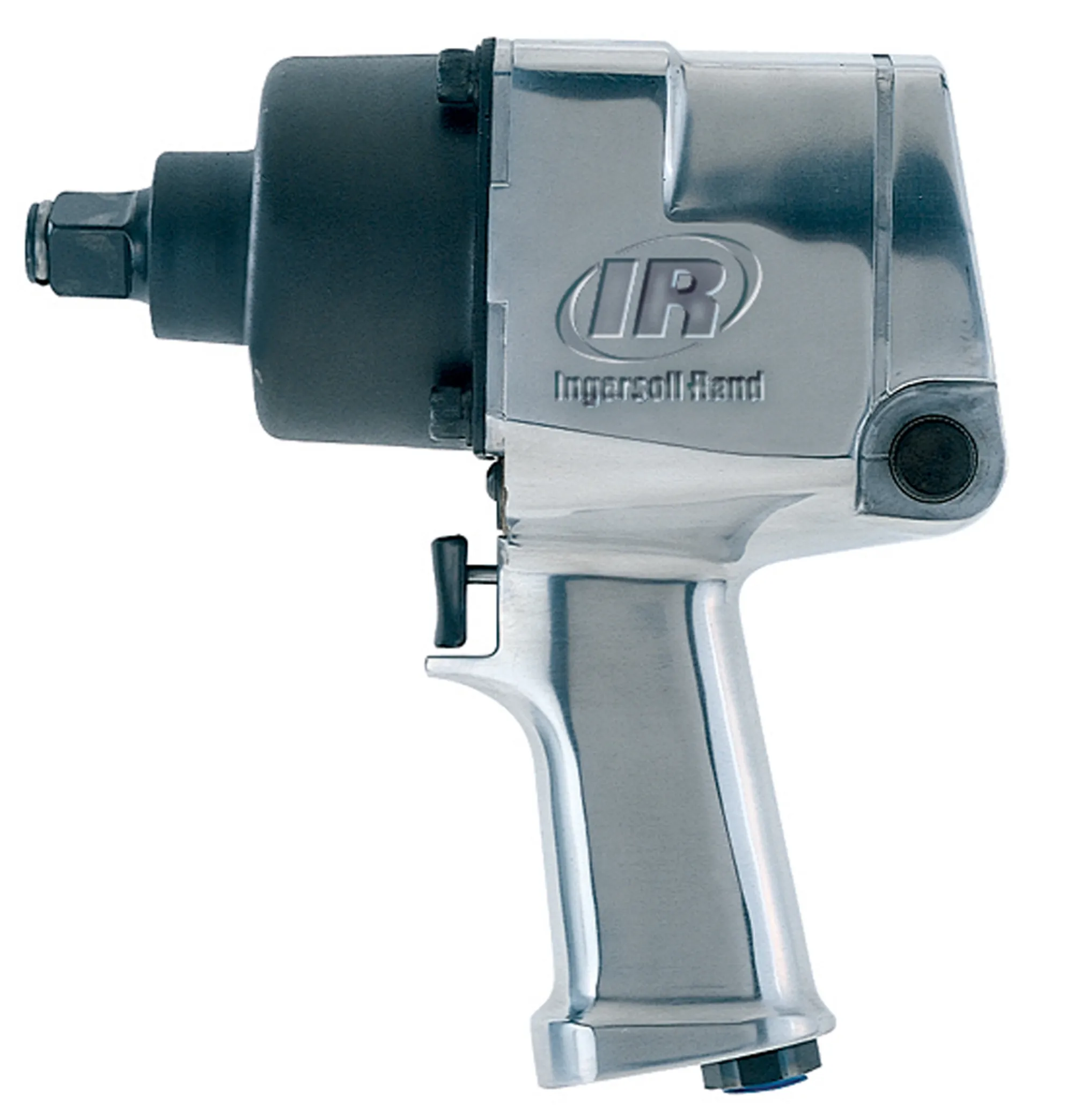

261 | 271 系列冲击扳手

261（3/4" 驱动头）和 271（1" 驱动头）冲击扳手非常适合车辆维修与重型卡车以及机械作业，方头套筒固定环和动力强劲的叶片马达将给您带来更多优势。扳机操作和功率调节器让您更好地控制工具，轻松完成项目。

Model	Configuration	Actuation	Drive Size	Drive Type	Forward Torque (ft-lbs)	Forward Torque (Nm)	Max Reverse Torque (ft-lbs)	Max Reverse Torque (Nm)	Blows per minute	Free Speed (RPM)	Impacting Sound Level dB(A) -- ISO15744 (pressure/power)	Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power)	Vibration Level m/s2 (K)	Weight (lbs)	Weight (kg)	Width (in)	Width (mm)	Height (in)	Height (mm)	Length (in)	Length (mm)	Air Inlet	Min Hose Size (in)	Min Hose Size (mm)	Air Consumption @ Load (cfm)	Air Consumption @ Load (L/min)	Average Air Consumption (cfm)	Average Air Consumption (L/min)	PSI	Bar
261	Pistol	Trigger	3/4 in.	Square, Hog-Ring	N/A	N/A	1200	1627	1000	5500	98.4 / 109.4	100.3 / 111.3	10.4 (1.3)	12.4	5.62	4.7	119.4	10.3	261.6	8.8	224	3/8 in.	1/2	13	38	1076	9.5	269	90	6.2
261-3	Pistol	Trigger	3/4 in.	Square, Hog-Ring, 3 in. Ext	N/A	N/A	1200	1627	1000	5500	98.4 / 109.4	100.3 / 111.3	10.4 (1.3)	13	5.9	4.7	119	10.3	262	11.8	300	3/8 in.	1/2	13	38	1076	9.5	269	90	6.2
261-6	Pistol	Trigger	3/4 in.	Square, Hog-Ring, 6 in. Ext	N/A	N/A	1200	1627	1000	5500	98.4 / 109.4	100.3 / 111.3	10.4 (1.3)	13.7	6.21	4.7	119	10.3	262	14.8	376	3/8 in.	1/2	13	38	1076	9.5	269	90	6.2
271	Pistol	Trigger	1 in.	Square, Hog-Ring	N/A	N/A	1200	1627	1000	5500	98.5 / 109.5	100.5 / 111.5	13.2 (1.1)	12.5	5.67	8	203.2	8	203.2	8.9	226	3/8 in.	1/2	13	39	1104	9.5	269	90	6.2
