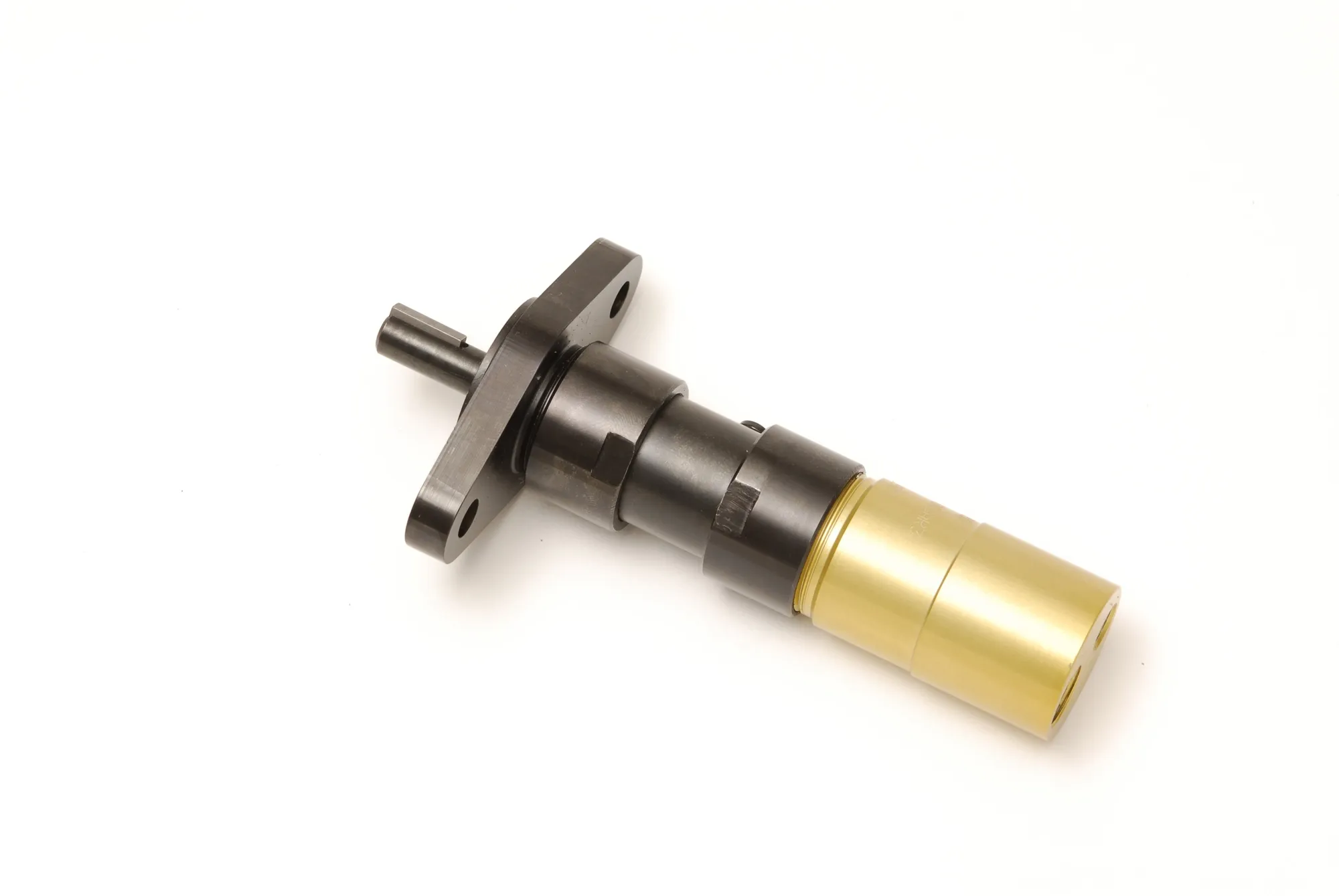

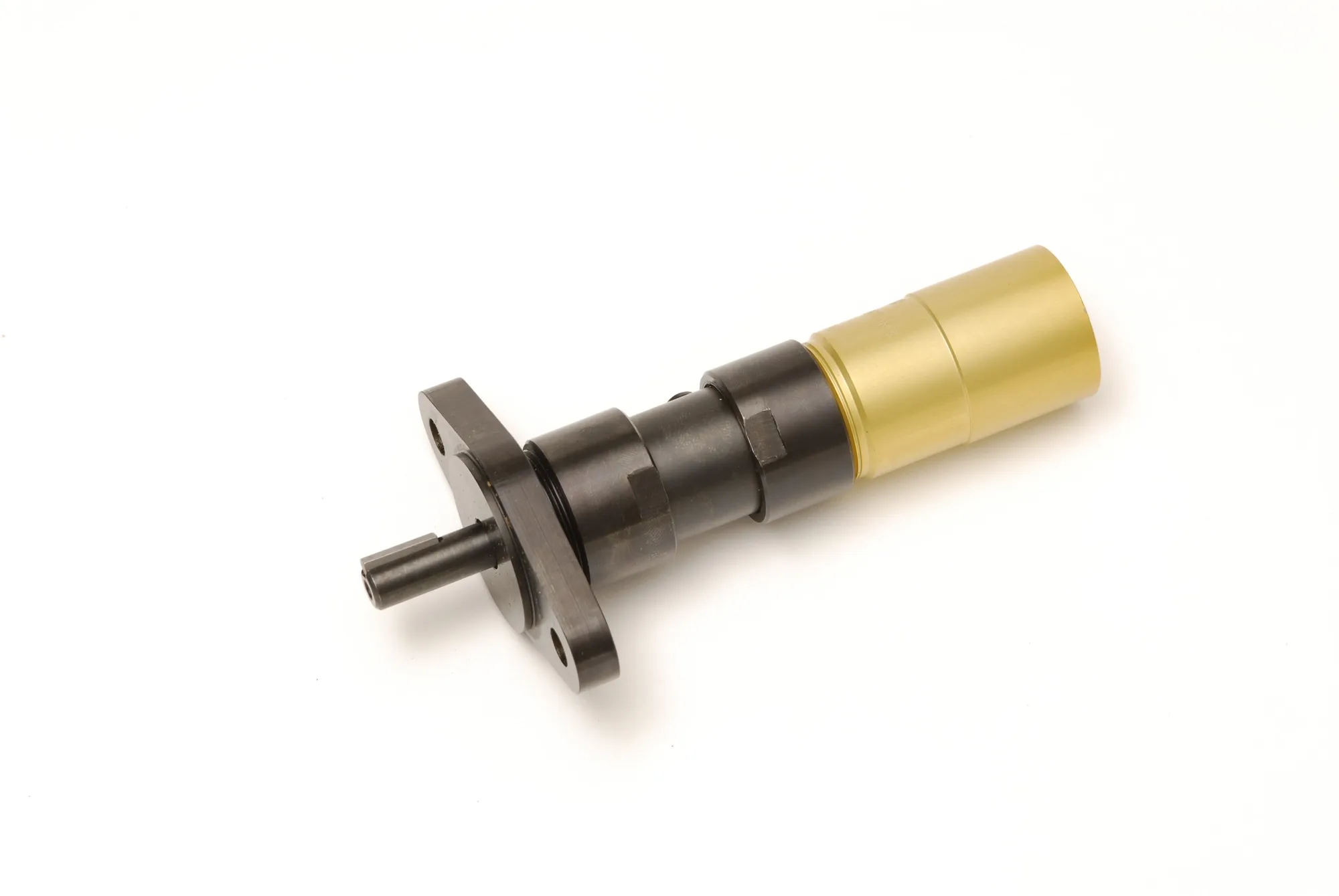

M004 系列气动马达

M004 系列可采用表面式和法兰式安装选项，适合各种应用。此系列还支持可变速度和扭矩，并能即时起动和反转，而不会产生过热。

联系我们

获取报价

需求服务、备件或支持

安全性好

符合 ATEX 标准

耐用性好

能够抵御恶劣的环境，适合众多应用。

生产率高

得益于简便的保养，您根本无需长时间停下来修复设备

Model	Max. Power (hp)	Max. Power (kw)	Reversible	Torque Stall (ft-lb)	Torque Stall (Nm)	Free Speed (rpm)	Torque Output @ Max. H.P. (ft-lb)	Torque Output @ Max. H.P. (Nm)	Speed at Max. Power (rpm)	Starting Torque (ft-lb)	Starting Torque (Nm)	Spindle	Air Consumption at Max. Power (scfm)	Air Consumption at Max. Power (m^3/m)	Weight (lb)	Weight (kg)	Length (in)	Length (mm)	Diameter/Width (in)	Diameter/Width (mm)	In Line Motor
M004RHR000AR3	0.5	0.37	No	0.53	0.72	18000	0.27	0.37	9000	0.4	0.54	3/8 in. Round Keyed	20	0.57	2.0625	0.95	6.25	158.7	1.5	38.1	Yes
M004RHR004AR3	0.47	0.35	No	1.94	2.63	4450	0.97	1.32	2225	1.46	1.98	3/8 in. Round Keyed	19.5	0.55	2.1875	1	6.25	158.7	1.5	38.1	Yes
M004RHR006AR3	0.47	0.35	No	3.22	4.37	2680	1.61	2.18	1340	2.42	3.28	3/8 in. Round Keyed	19.5	0.55	2.1875	1	6.25	158.7	1.5	38.1	Yes
M004RHR011AR3	0.44	0.33	No	5.22	7.08	1490	2.61	3.54	745	3.92	5.32	3/8 in. Round Keyed	19	0.54	2.375	1.09	6.98	177.4	1.5	38.1	Yes
M004RHR015AR3	0.44	0.33	No	7.1	9.63	1095	3.55	4.81	547.5	5.32	7.21	3/8 in. Round Keyed	19	0.54	2.375	1.09	6.98	177.4	1.5	38.1	Yes
M004RHR023AR3	0.44	0.33	No	10.8	14.6	715	5.4	7.32	357.5	8.1	11	3/8 in. Round Keyed	19	0.54	2.375	1.09	6.98	177.4	1.5	38.1	Yes
M004RHR033AR3	0.44	0.33	No	15.4	20.8	505	7.7	10.44	252.5	11.5	15.6	3/8 in. Round Keyed	19	0.54	2.375	1.09	6.98	177.4	1.5	38.1	Yes
M004RHR050AR3	0.41	0.31	No	22.1	30	315	11.05	14.98	157.5	16.5	22.4	3/8 in. Round Keyed	18.5	0.52	2.6875	1.22	7.75	196.7	1.5	38.1	Yes
M004RHR083AR3	0.41	0.31	No	36.7	49.7	190	18.35	24.88	95	27.5	37.3	3/8 in. Round Keyed	18.5	0.52	2.6875	1.22	7.75	196.7	1.5	38.1	Yes
M004RHR167AR3	0.41	0.31	No	73.3	99.4	95	36.65	49.69	47.5	55	74.5	3/8 in. Round Keyed	18.5	0.52	2.6875	1.22	7.75	196.7	1.5	38.1	Yes
M004RVR000AR3	0.4	0.3	Yes	0.42	0.57	16000	0.21	0.28	8000	0.32	0.43	3/8 in. Round Keyed	19	0.54	2.0625	0.95	6.25	158.7	1.5	38.1	Yes
M004RVR004AR3	0.37	0.28	Yes	1.51	2.05	3955	0.755	1.02	1977.5	1.13	1.53	3/8 in. Round Keyed	18.5	0.52	2.1875	1	6.25	158.7	1.5	38.1	Yes
M004RVR006AR3	0.37	0.28	Yes	2.51	3.4	2380	1.255	1.7	1190	1.88	2.55	3/8 in. Round Keyed	18.5	0.52	2.1875	1	6.25	158.7	1.5	38.1	Yes
M004RVR011AR3	0.34	0.25	Yes	4	5.42	1325	2	2.71	662.5	3	4.07	3/8 in. Round Keyed	18	0.51	2.375	1.09	6.98	177.4	1.5	38.1	Yes
M004RVR015AR3	0.34	0.25	Yes	5.43	7.36	975	2.715	3.68	487.5	4.07	5.52	3/8 in. Round Keyed	18	0.51	2.375	1.09	6.98	177.4	1.5	38.1	Yes
M004RVR023AR3	0.34	0.25	Yes	8.3	11.2	635	4.15	5.63	317.5	6.23	8.45	3/8 in. Round Keyed	18	0.51	2.375	1.09	6.98	177.4	1.5	38.1	Yes
M004RVR033AR3	0.34	0.25	Yes	11.8	16	450	5.9	8	225	8.85	12	3/8 in. Round Keyed	18	0.51	2.375	1.09	6.98	177.4	1.5	38.1	Yes
M004RVR050AR3	0.31	0.23	Yes	16.5	22.4	280	8.25	11.19	140	12.3	16.7	3/8 in. Round Keyed	17.5	0.5	2.6875	1.22	7.75	196.7	1.5	38.1	Yes
M004RVR083AR3	0.31	0.23	Yes	27.5	37.3	169	13.75	18.64	84.5	20.6	27.9	3/8 in. Round Keyed	17.5	0.5	2.6875	1.22	7.75	196.7	1.5	38.1	Yes
M004RVR167AR3	0.31	0.23	Yes	55	74.5	85	27.5	37.28	42.5	41.3	56	3/8 in. Round Keyed	17.5	0.5
