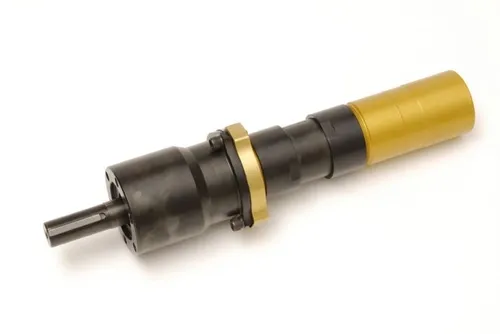

M007 系列气动马达

M007 系列配备直连式行星齿轮和叶片马达，支持范围极广的扭矩和速度。它还可采用表面和法兰式安装选项，并能即时起动和反转，而不会产生过热。

安全性好
符合 ATEX 标准

耐用性好
M007 系列是您坚实的后盾。它能够承受恶劣的工作环境。

生产率高
由于这种工具保养简便，您无需长时间停下来维修设备。这样，您就可以将精力放在工作上。

Model	Max. Power (hp)	Max. Power (kw)	Reversible	Torque Stall (ft-lb)	Torque Stall (Nm)	Free Speed (rpm)	Torque Output @ Max. H.P. (ft-lb)	Torque Output @ Max. H.P. (Nm)	Speed at Max. Power (rpm)	Starting Torque (ft-lb)	Starting Torque (Nm)	Spindle	Air Consumption at Max. Power (scfm)	Air Consumption at Max. Power (m^3/m)	Weight (lb)	Weight (kg)	Length (in)	Length (mm)	Diameter/Width (in)	Diameter/Width (mm)	In Line Motor
M007RHR000AR4	0.85	0.63	No	0.77	1.04	22000	0.385	0.52	11000	0.58	0.79	1/2 in. Round Keyed	36	1.02	3.0625	1.4	7.36	187	1.5	38.1	Yes
M007RHR004AR4	0.82	0.61	No	3.19	4.33	4890	1.595	2.16	2445	2.39	3.24	1/2 in. Round Keyed	36	1.02	3.0625	1.4	7.36	187	1.5	38.1	Yes
M007RHR006AR4	0.82	0.61	No	4.66	6.32	3350	2.33	3.16	1675	3.5	4.75	1/2 in. Round Keyed	36	1.02	3.0625	1.4	7.36	187	1.5	38.1	Yes
M007RHR009AR4	0.82	0.61	No	6.34	8.6	2460	3.17	4.3	1230	4.76	6.45	1/2 in. Round Keyed	36	1.02	3.0625	1.4	7.36	187	1.5	38.1	Yes
M007RHR012AR4	0.79	0.59	No	8.25	11.2	1740	4.125	5.59	870	6.19	6.39	1/2 in. Round Keyed	36	1.02	3.5	1.6	8.13	206.5	1.5	38.1	Yes
M007RHR015AR4	0.79	0.59	No	10.4	14.1	1370	5.2	7.05	685	7.8	10.6	1/2 in. Round Keyed	36	1.02	3.5	1.6	8.13	206.5	1.5	38.1	Yes
M007RHR021AR4	0.79	0.59	No	15.3	20.7	940	7.65	10.37	470	11.5	15.6	1/2 in. Round Keyed	36	1.02	3.5	1.6	8.13	206.5	1.5	38.1	Yes
M007RHR027AR4	0.79	0.59	No	19.3	26.2	740	9.65	13.1	370	14.5	19.7	1/2 in. Round Keyed	36	1.02	3.5	1.6	8.13	206.5	1.5	38.1	Yes
M007RHR037AR4	0.79	0.59	No	26.3	35.7	540	13.15	17.83	270	19.7	26.7	1/2 in. Round Keyed	36	1.02	3.5	1.6	8.13	206.5	1.5	38.1	Yes
M007RHR044AR4	0.79	0.59	No	30.9	41.9	465	15.45	20.95	232.5	23.2	31.5	1/2 in. Round Keyed	36	1.02	7.125	1.6	8.13	206.5	1.5	38.1	Yes
M007RHR063BR6	0.79	0.59	No	44.7	60.6	321	22.35	30.3	160.5	33.5	45.4	3/4 in. Round Keyed	36	1.02	7.375	3.2	9.34	237.3	1.5	38.1	Yes
M007RHR086BR6	0.79	0.59	No	60.9	82.6	236	30.45	41.28	118	45.7	62	3/4 in. Round Keyed	36	1.02	7.375	3.2	9.34	237.3	1.5	38.1	Yes
M007RHR119BR6	0.76	0.57	No	80.7	109	163	40.35	54.71	81.5	60.5	82	3/4 in. Round Keyed	36	1.02	7.375	3.4	10.94	277.9	1.5	38.1	Yes
M007RHR151BR6	0.76	0.57	No	102	138	129	51	69.15	64.5	76.5	104	3/4 in. Round Keyed	36	1.02	7.375	3.4	10.94	277.9	1.5	38.1	Yes
M007RHR188BR6	0.76	0.57	No	128	174	103	64	86.77	51.5	96	130	3/4 in. Round Keyed	36	1.02	7.375	3.4	10.94	277.9	1.5	38.1	Yes
M007RHR275BR6	0.76	0.57	No	187	254	70	93.5	126.77	35	140	190	3/4 in. Round Keyed	36	1.02	7.375	3.4	10.94	277.9	1.5	38.1	Yes
M007RHR374BR6	0.76	0.57	No	254	344	52	127	172.19	26	191	259	3/4 in. Round Keyed	36	1.02	7.375	3.4	10.94	277.9	1.5	38.1	Yes
M007RVR000AR4	0.7	0.52	Yes	0.63	0.85	20000	0.315	0.43	10000	0.47	0.64	1/2 in. Round Keyed	33	0.93	3.0625	1.4	7.36	187	1.5	38.1
M007RVR004AR4	0.67	0.5	Yes	2.59	3.51	4450	1.295	1.76	2225	1.94	2.63	1/2 in. Round Keyed	33	0.93	3.0625	1.4	7.36	187	1.5	38.1	Yes
M007RVR006AR4	0.67	0.5	Yes	3.78	5.13	3045	1.89	2.56	1522.5	2.84	3.85	1/2 in. Round Keyed	33	0.93	3.0625	1.4	7.36	187	1.5	38.1	Yes
M007RVR009AR4	0.67	0.5	Yes	5.14	6.97	2240	2.57	3.48	1120	3.86	5.23	1/2 in. Round Keyed	33	0.93	3.0625	1.4	7.36	187	1.5	38.1	Yes
M007RVR012AR4	0.64	0.48	Yes	6.63	8.99	1580
