以下调整套件可用于英格索兰 1“ 冲击扳手。 请参阅工具的零件清单，了解正确的调整套件。
1“ 冲击扳手调整套件
使用原装英格索兰维修套件和更换零件延长 1“ 空气冲击扳手的使用寿命。 即使是最耐用和最可靠的工具也需要预防性维护，每个 Ingersoll Rand 零件都经过专门设计，以提高工具的耐用性和生产率。 同样节省资金 - 套件的成本低于单个零件。
这些调整套件包含维护 1“ 空气冲击扳手所需的所有组成部分。 英格索兰工程师建议每年对中等使用量进行一次调整。
Model | Description | Includes |
|---|---|---|

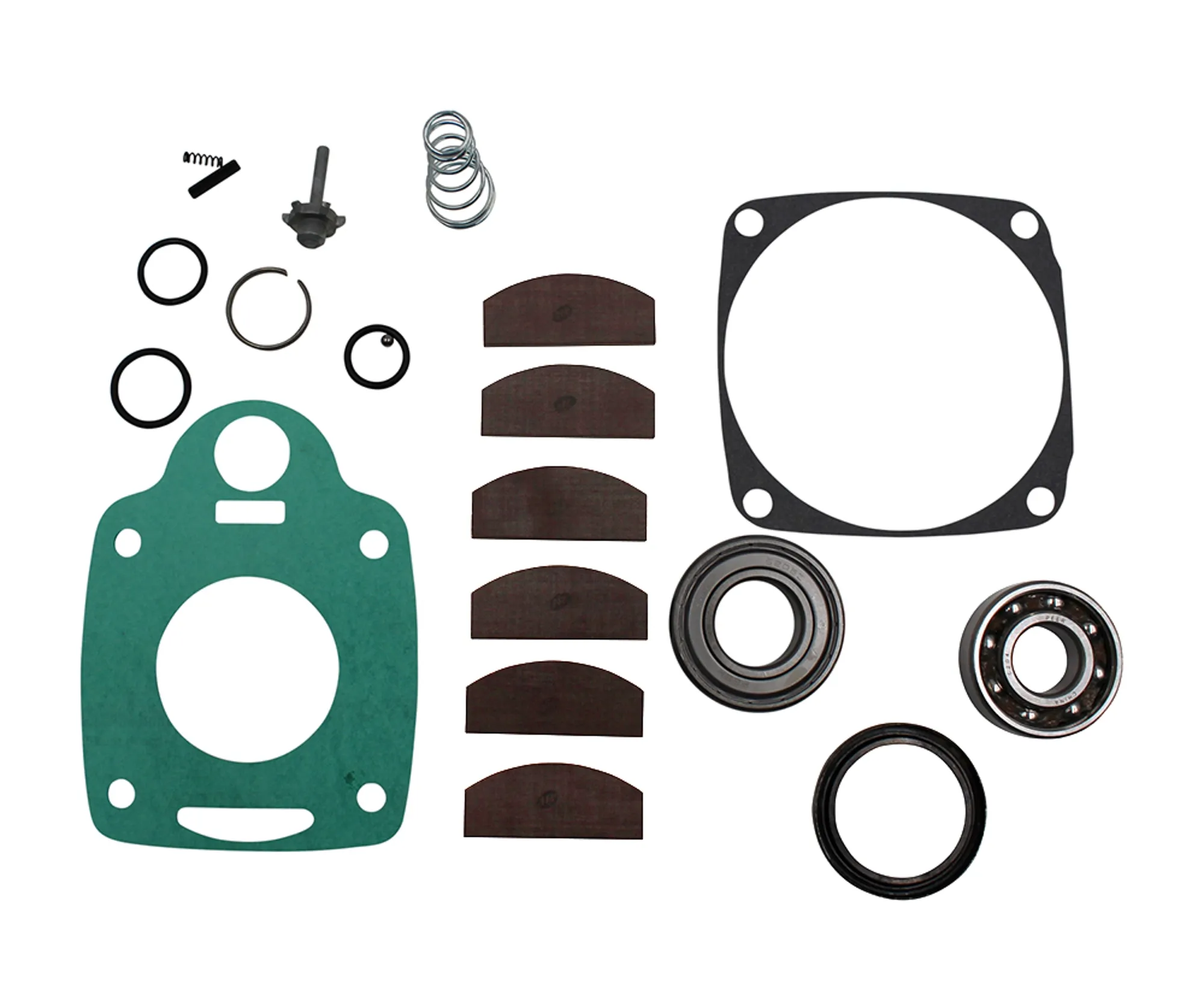

285B-TK1 | Tune-up Kit for Ingersoll Rand 285B Series Impact Wrenches | Slot cover, Throttle Valve Plunger, Throttle Valve, Throttle Valve Spring, (2) O-rings, Stop Pin, Spring, Ball, Reverse Valve Seal, Spring Pin, Handle Gasket, Hammer Case Gasket, Front Rotor Bearing, Rear Rotor Bearing, Vane Pack (set of 6), Retainer Ring, Oil Seal |
290-TK2 | Tune-up Kit for Ingersoll Rand 290 Series Impact Wrenches | Throttle Valve Plunger, Stop Pin, Oiler Felt, Seal, Vane Pack, Bearings, Handle Gasket, O-rings, Spring Pack, Ball |
295A-TK1 | Tune-up Kit for Ingersoll Rand 295 Series Impact Wrenches | (1) Vane pack, (3) Springs, (1) Front Rotor Bearing, (1) Rear Rotor Bearing, (1) Oil Sealing, (2) Gasket, (2) O-Ring, (1) Throttle Valve, (1) Ball |
2190-TK1 | Tune-up Kit for Ingersoll Rand 2190 Series Impact Wrenches | (1) Vane pack, (1) Spring, (1) Front Rotor Bearing, (1) Rear Rotor Bearing, (2) Gasket, (2) O-Ring, (2) Snap Ring, (1) Spring pack |
2925B-TK2 | Tune-up Kit for Ingersoll Rand 2925B Series Impact Wrenches | (1) Vane pack, (1) Spring (1) Front Rotor Bearing, (1) Rear Rotor Bearing, (2) Gasket, (2) O-Ring, (1) Throttle Valve Seat, (1) Throttle Valve, (1) Inlet Screen, (1) Seal, (1) Muffler |
2925-TK2 | Tune-Up Kit for Ingersoll Rand 2925 Series Impact Wrenches | (1) Vane pack, (1) Spring (1) Front Rotor Bearing, (1) Rear Rotor Bearing, (2) Gasket, (2) O-Ring, (1) Throttle Valve Seat, (1) Throttle Valve, (1) Inlet Screen, (1) Seal, (1) Muffler |
3940P-TK1 | Tune-Up Kit for Ingersoll Rand 3940P Series Impact Wrenches | Air Port Gasket, Bearings, Gasket Retainer, Hammer Case Gasket, Housing Cover Gasket, O-Ring; Plunger, Seal, Muffler, Throttle Valve Seal, Vane Pack |
3940-TK1 | Tune-up Kit for Ingersoll Rand 3940 Series Impact Wrenches | (2) Seals, (1) Throttle Valve Spring, (1) Air Strainer Screen, (4) Gasket, (1) Rear Motor Bearning, (1) Front Motor Bearing, Vane pack, (3) Springs, (1) Ball, (1) Pin |
3942-TK1 | Tune-up Kit for Ingersoll Rand 3942 Series Impact Wrenches | (2) Seals, (1) Throttle Valve Spring, (1) Air Strainer Screen, (4) Gasket, (1) Rear Motor Bearning, (1) Front Motor Bearing, Vane pack, (3) Springs, (1) Ball, (1) Pin |
3955-TK1 | Tune-up Kit for Ingersoll Rand 3955 Series Impact Wrenches | (2) Seals, (1) Throttle Valve Spring, (1) Air Strainer Screen, (4) Gasket, (1) Rear Motor Bearning, (1) Front Motor Bearing, Vane pack, (3) Springs, (1) Ball, (1) Pin |
