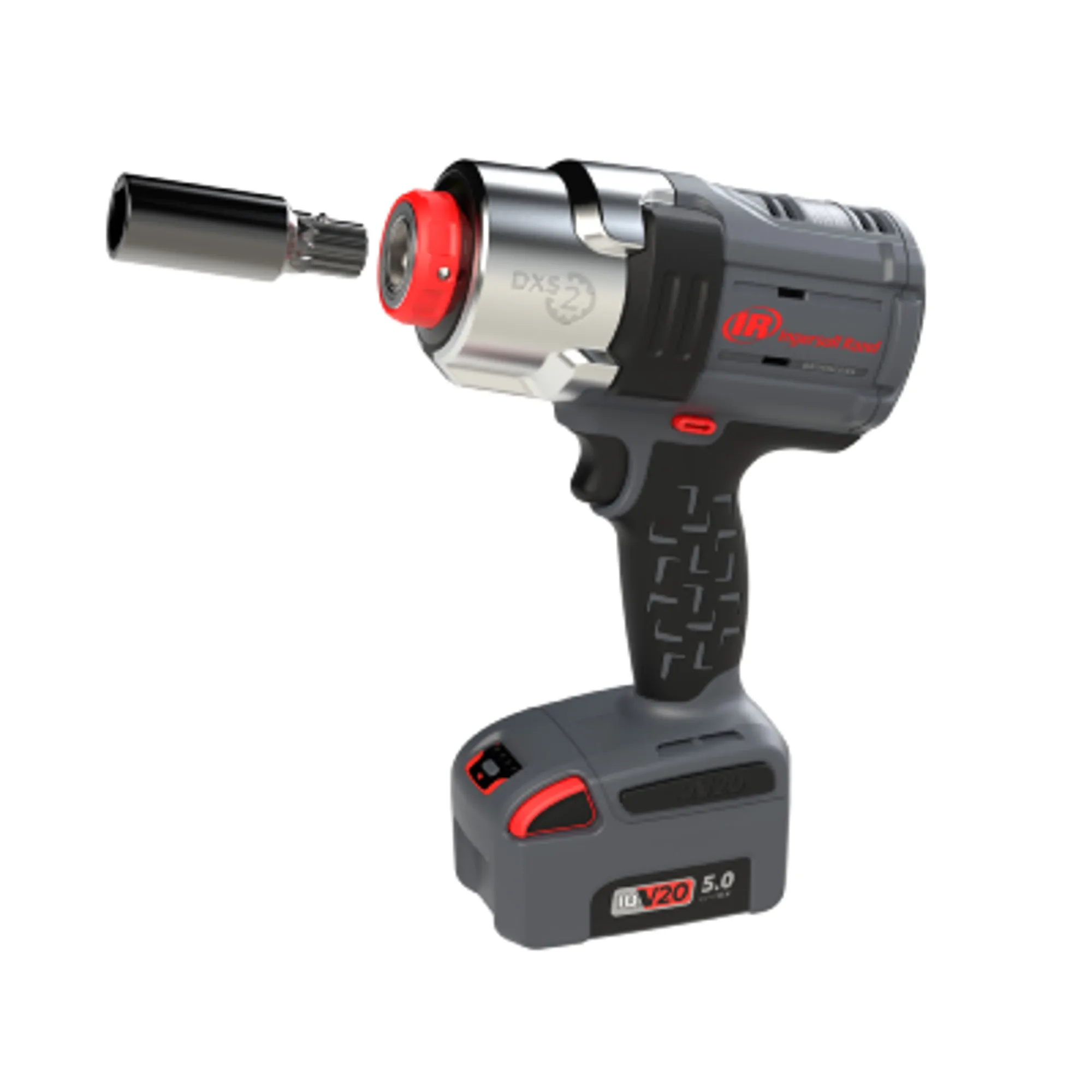

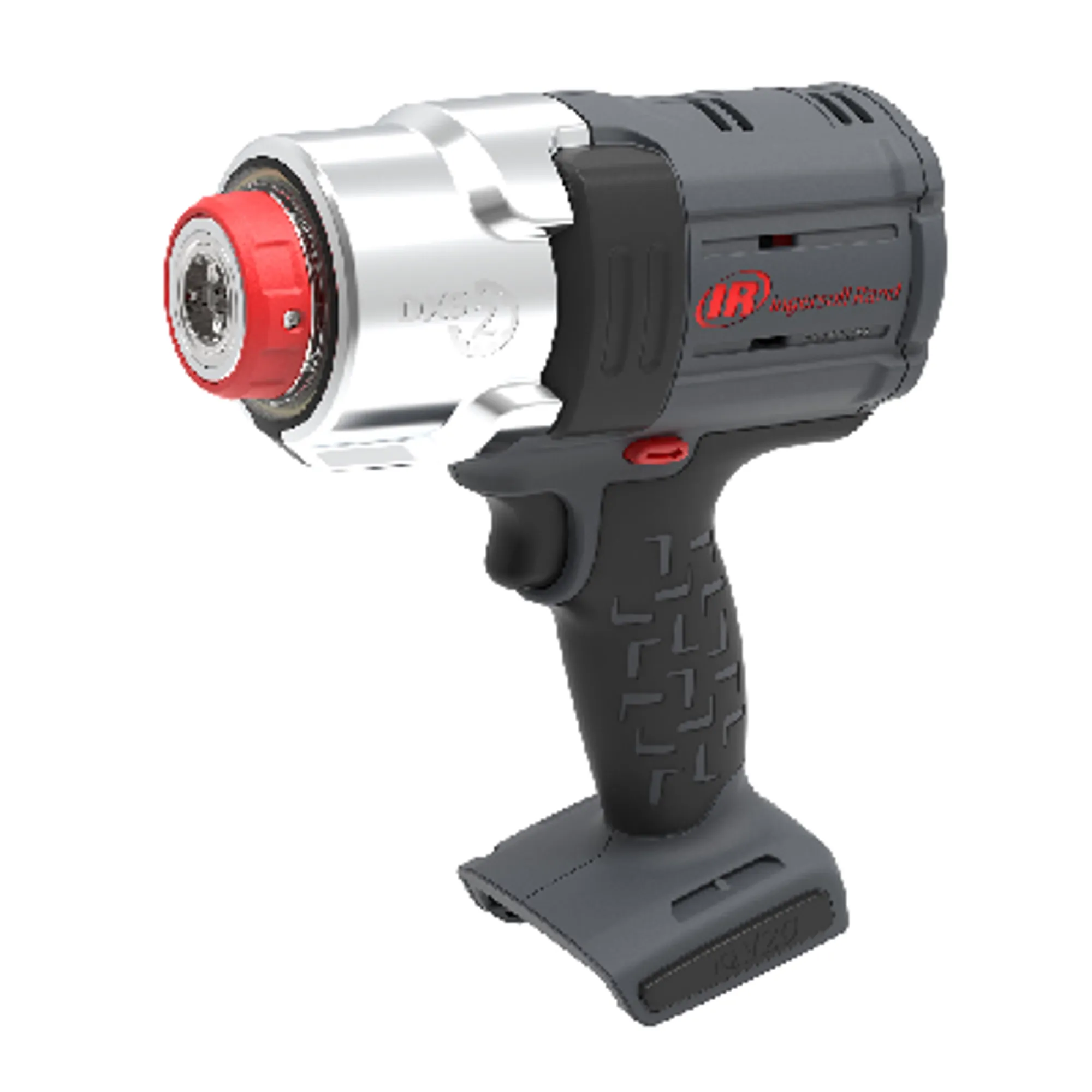

The new W7253-TL Forward Torque Limited Impact Wrench is purpose-built for passenger tire service applications. Features one fixed forward tightening mode set at 76 ft-lbs to prevent accidental overtightening of tire lug nuts that can lead to costly damage to wheel rotors. The target torque is set to near specification for a wide variety of passenger tires and at a level that allows for a quick final tightening with a manually calibrated torque wrench. Compatible with all DXS® Drive Xchange System™ extended anvils and direct drive sockets.

Request a Quote

Find a Distributor

Best In Class Power-To-Weight Ratio:

Powerful brushless motor and ball and cam impact mechanism are finely tuned for best in class power-to-weight ratio. 1600 ft-lbs of nut-busting torque (when used with ¾” DXS® drive accessories) and 76 ft-lbs of forward tightening torque.

Rugged Durability:

Withstand the rigors of a busy shop with steel reinforced frame, chemical and impact resistant housing, and IPX6-certified environmental rating for protection against water ingress

Frustration-Free Productivity:

Compact design lets you maneuver tight spaces more easily

Cordless Convenience:

Cut the cord and take it anywhere with a lightweight build that enables comfortable all-day use

Our Best Warranty Ever:

NEW 5 yr. Limited Warranty stands behind our legendary quality and durability

Model	Forward Torque ft-lbs (Nm)	Breakaway Torque ft-lb (Nm)	Max Free Speed (rpm)	Blows per Minute	Weight lbs (kg)	Length in (mm)	Configuration	Light	Voltage
W7253-TL	76 (103)	1601 (2170)	1900	2450	6.2	10.2	Pistol	360 degree LED	20V
