- 360-Degree Exhaust: The adjustable exhaust on the 109XPA and 1099XPA high torque ratchet wrenches directs air flow away from you and your workspace.
- Low Profile Forward/Reverse Control: The 109XPA and 1099XPA forward/reverse control has a wide diameter for increased ease of use in confined spaces.
- Increased Reach: Enjoy easier access to deep, hard to reach spaces with these high torque ratchet wrenches.
- Drilling and Bolting Tools
- Ratchet Wrenches

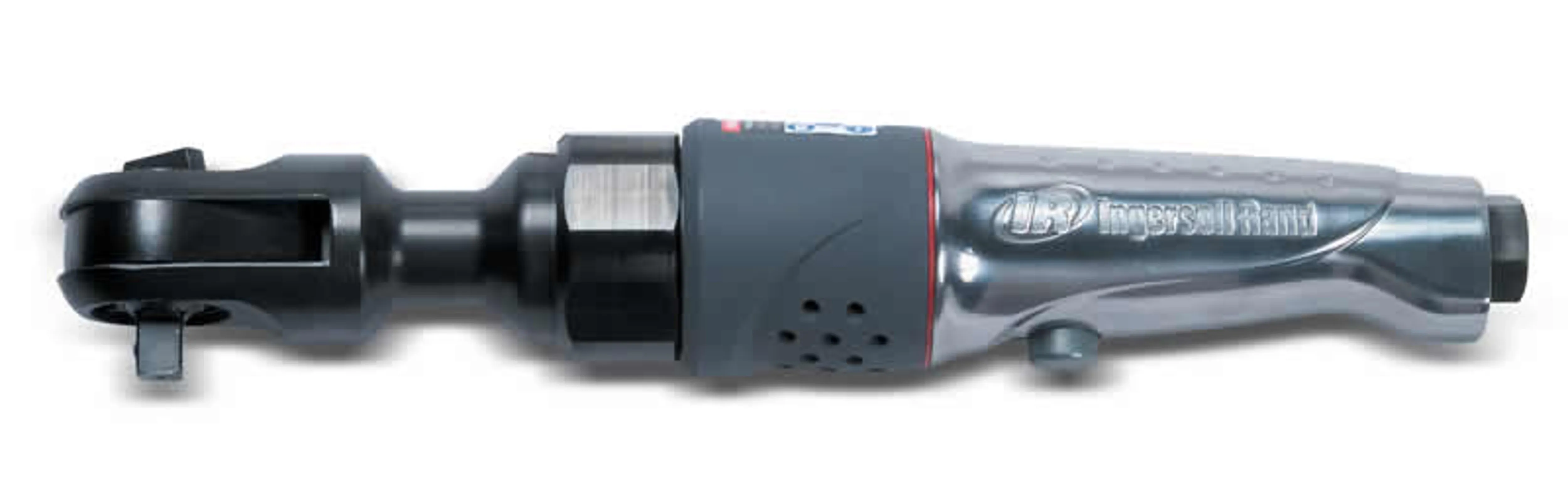

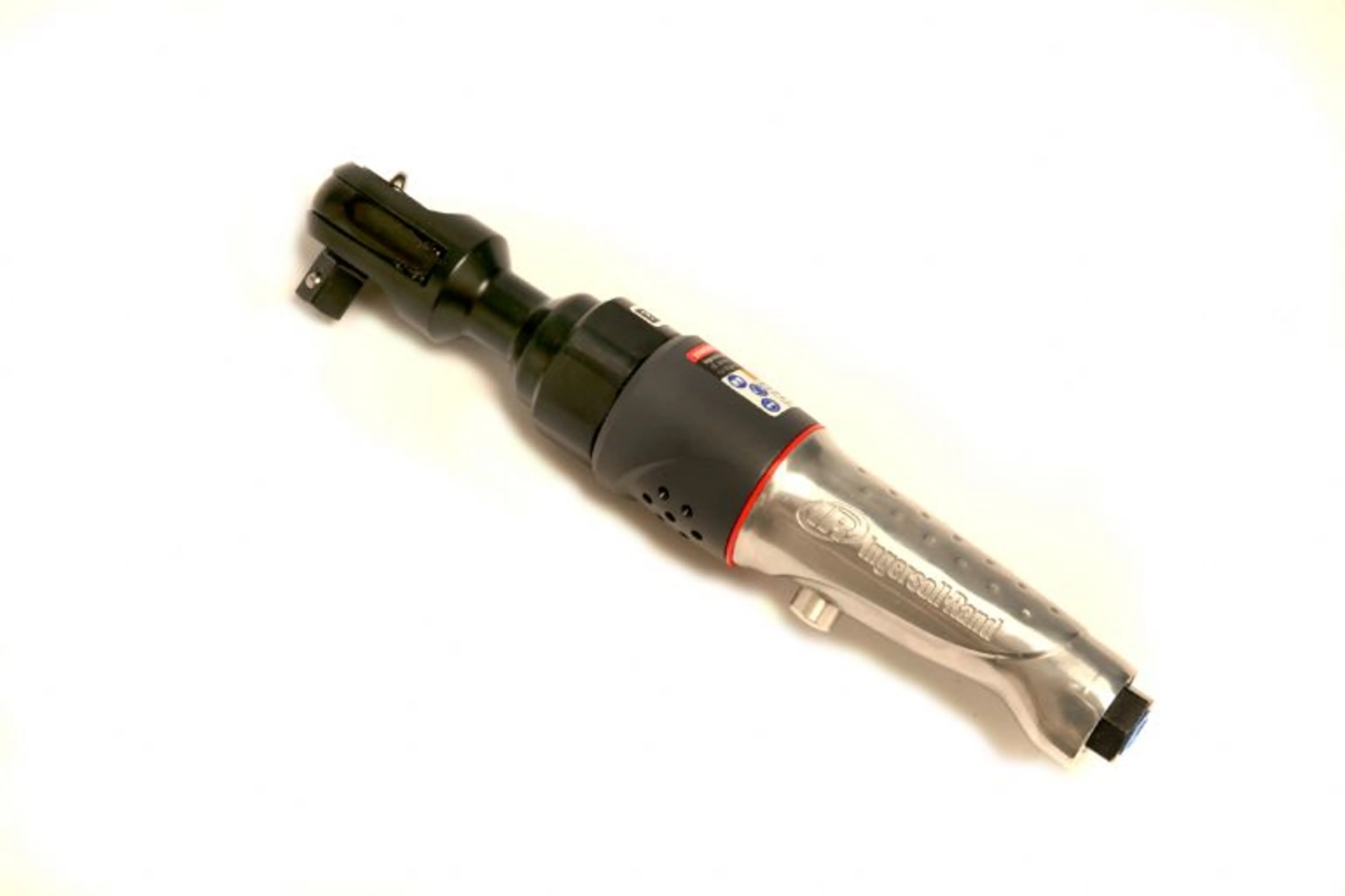

109XPA & 1099XPA High Torque Air Ratchet Wrench
109XPA & 1099XPA High Torque Air Ratchet Wrench




The 109XPA and 1099XPA ratchet wrenches provide an optimized gear ratio and airflow for exceptional performance and durability with 76 ft-lb maximum torque. The 109 model offers a 3/8” drive, while the 1099 model sports a 1/2” version.
Model | Drive Size (in) | Switch Type (actuation) | Free Speed (rpm) | Recomm. Torque Range (ft-lb) | Recomm. Torque Range (Nm) | Max Torque (ft-lb) | Max Torque (Nm) | Free Speed Sound Level (dBA) | Vibration Level m/s2 (K) | Weight (lb) | Weight (kg) | Length (in) | Length (mm) | Average Air Consumption (cfm) | Average Air Consumption (L/min) | Free Speed Air Consumption (cfm) | Free Speed Air Consumption (L/min) | Air Inlet NPTF (in) | Min Hose Size (in) | Min Hose Size (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1099XPA | 1/2 | Button actuation; variable speed | 220 | 10-60 | 14-81 | 76 | 103 | 92.4 | 2.5 (0.7) | 3.3 | 1.5 | 12 | 305 | 4 | 113 | 24 | 680 | 1/4 | 3/8 | 10 | |
109XPA | 3/8 | Button actuation; variable speed | 220 | 10-60 | 14-81 | 76 | 103 | 92.4 | 2.5 (0.7) | 3.3 | 1.5 | 12 | 305 | 4 | 113 | 24 | 680 | 1/4 | 3/8 | 10 |

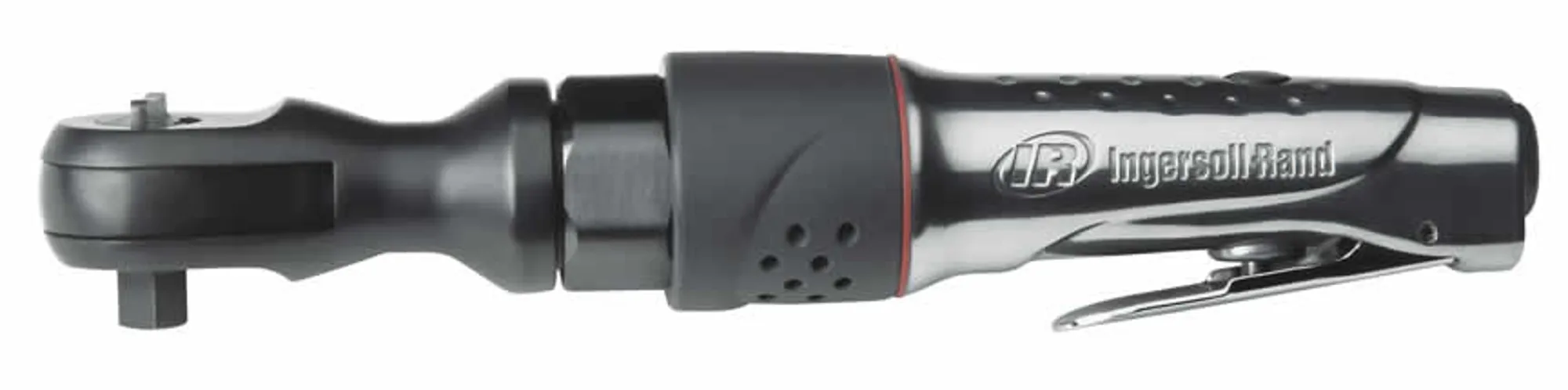

107XPA - 1077XPA Air Ratchet Wrench
- 73.2 Nm (54 ft-lbs) of MAX Torque
- 1/2" and 3/8" Drive Size Options
- 1.25 kg (2.75 lbs)

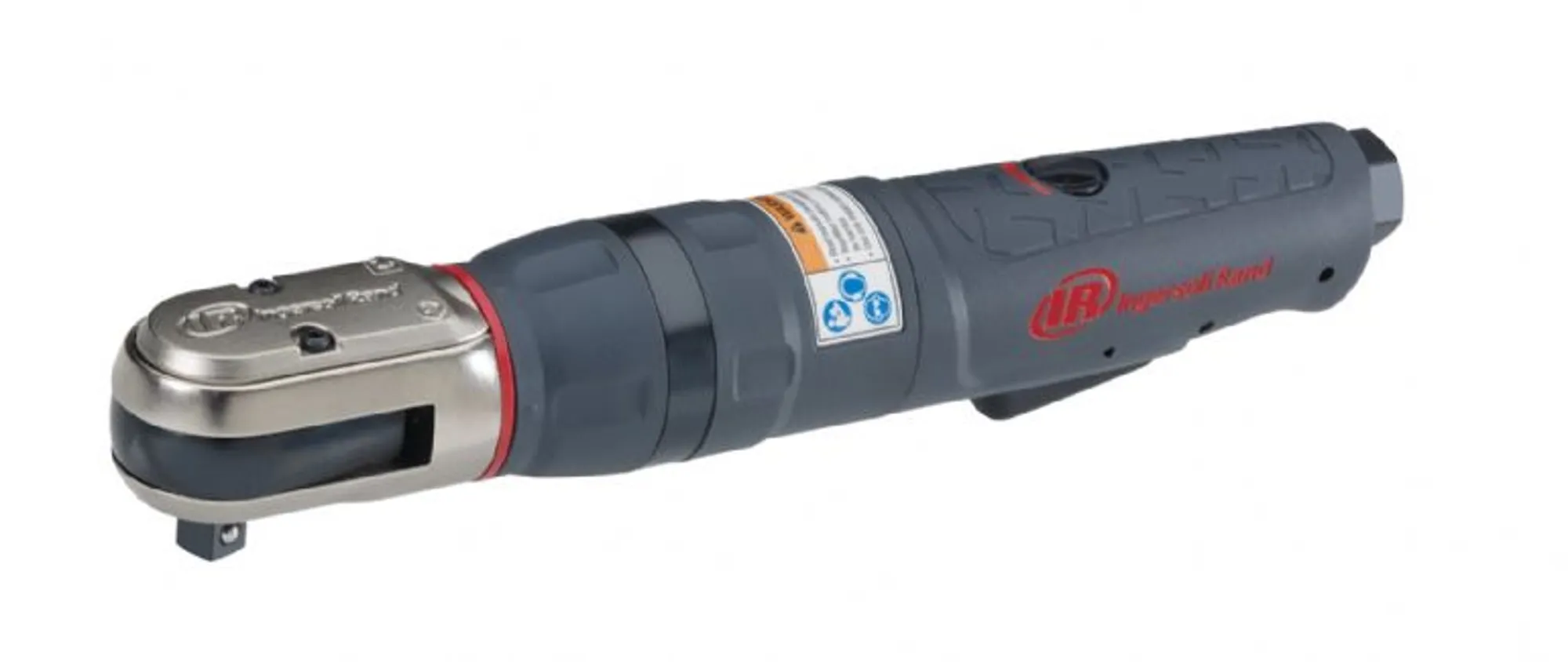

1207MAX Series Premium Ratchet Wrench
- 88 Nm (65 ft-lbs) of MAX Torque
- 3/8" and 1/2" Drive Size Options
- 1.4 kg (3.1 lbs)

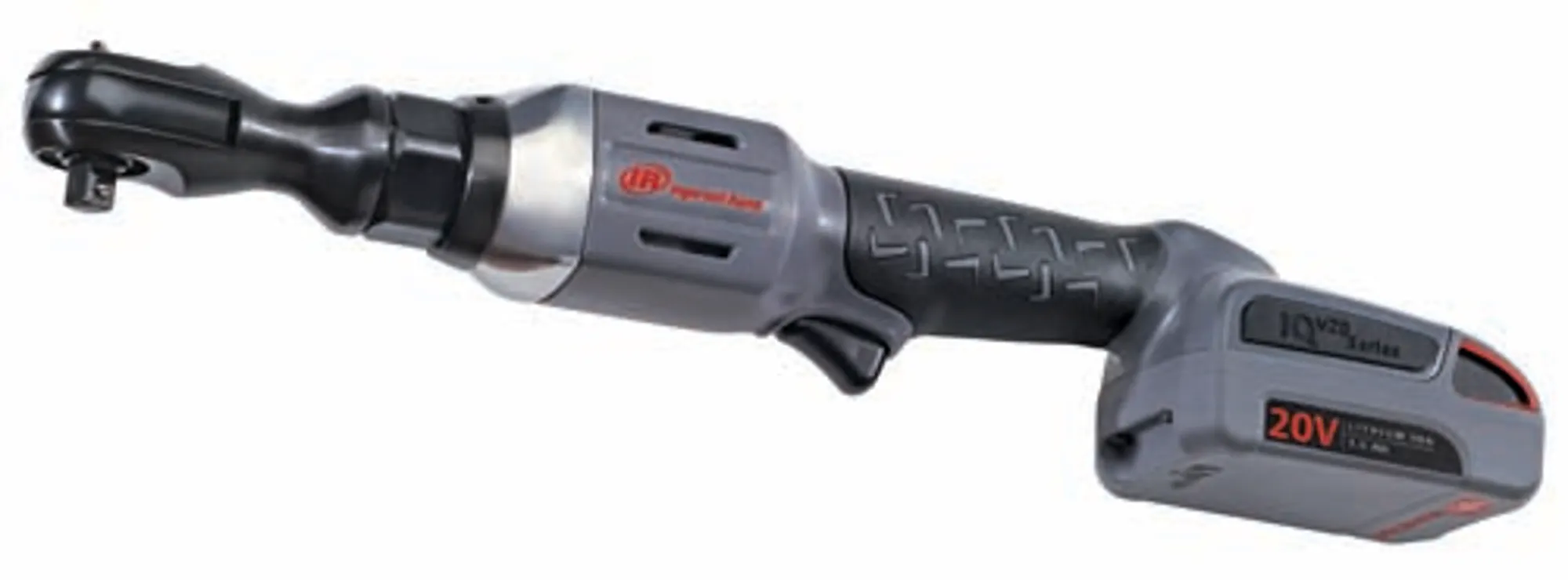

R3130 & R3150
- 73.2 Nm (54 ft-lbs) of MAX Torque
- 3/8" and 1/2" Drive Size Options
- 1.58 kg (3.5 lbs)

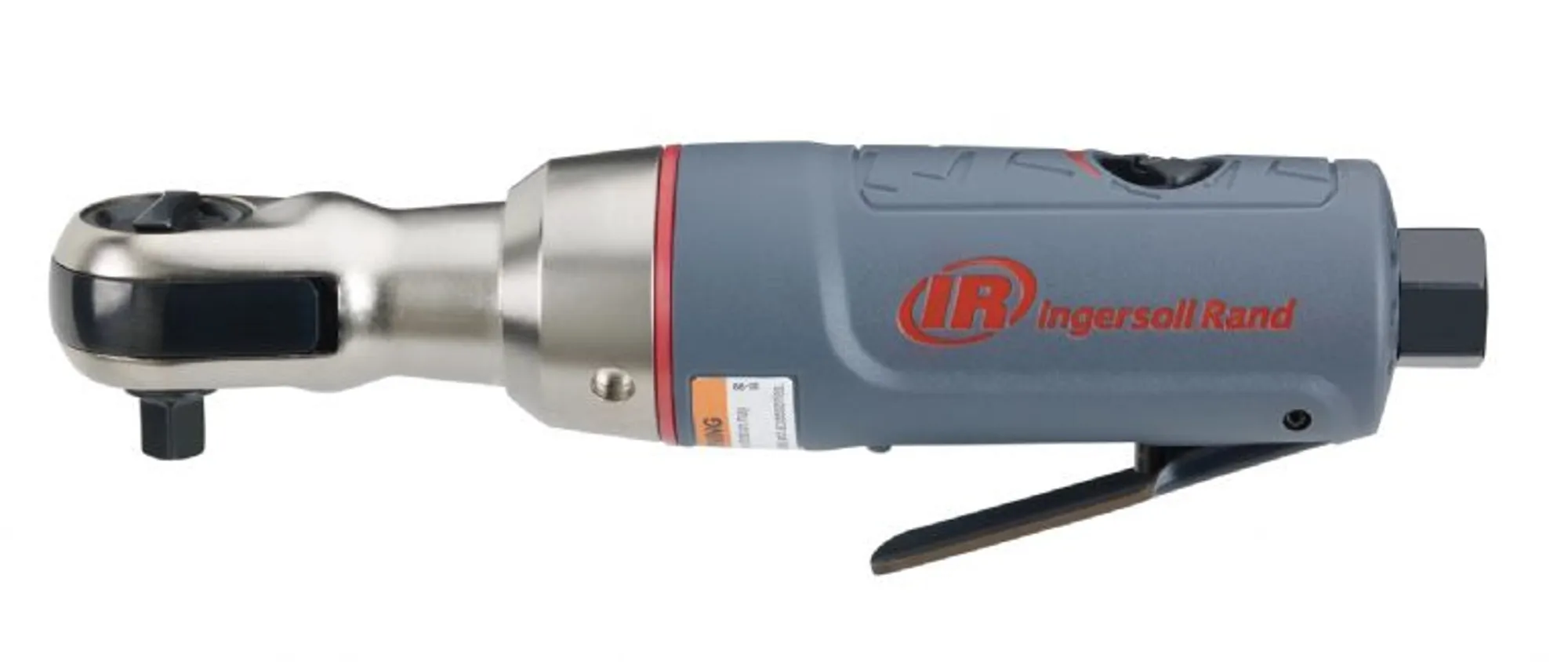

1105MAX Series Premium Mini Ratchet Wrench
- 40.6 Nm (30 ft-lb) of MAX Torque
- 1/4" and 3/8" Drive Size Options
- 0.65 kg (1.43 lbs)

2235TiMAX Visibility Series 1/2" Drive Air Impact Wrenches
- 1,262 Nm (930 ft-lbs) MAX Torque
- ½” Drive Size
- 2.08 kg (4.6 lbs)
