360 度排气
109XPA 和 1099XPA 大扭矩棘轮扳手可调节排气，让气流远离您和您的工作空间。
小型正反方向控制装置
109XPA 和 1099XPA 的正反方向控制装置直径大，更容易在狭小空间使用。
更容易进入狭小空间
这些大扭矩棘轮扳手更容易进入纵深、难以够及的空间。

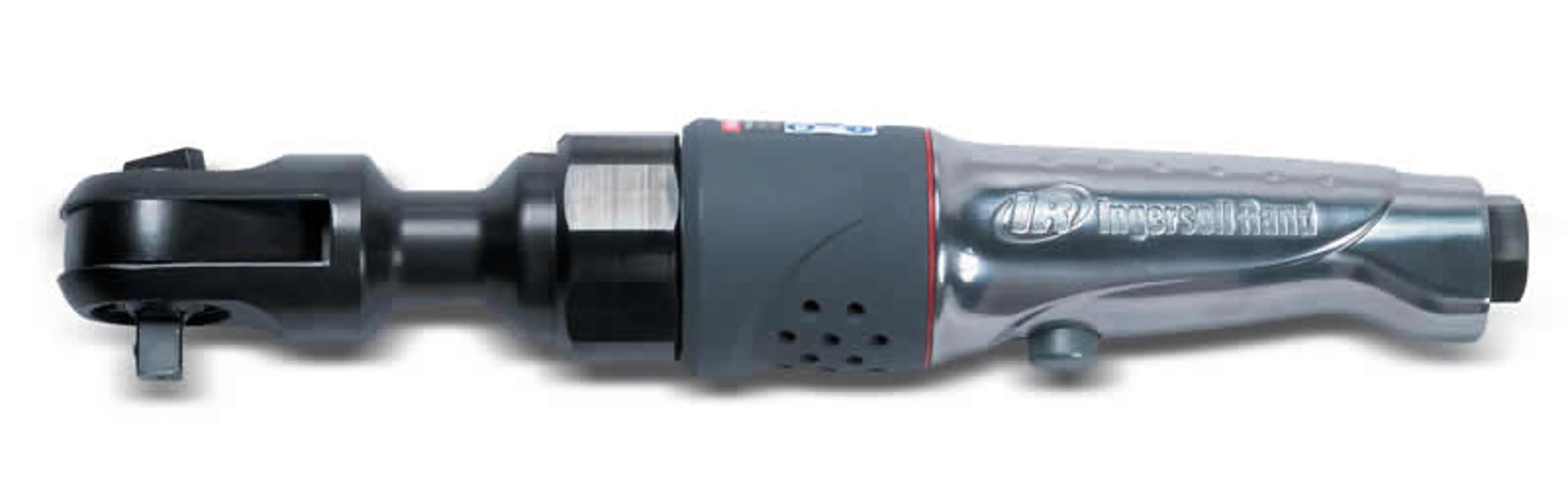

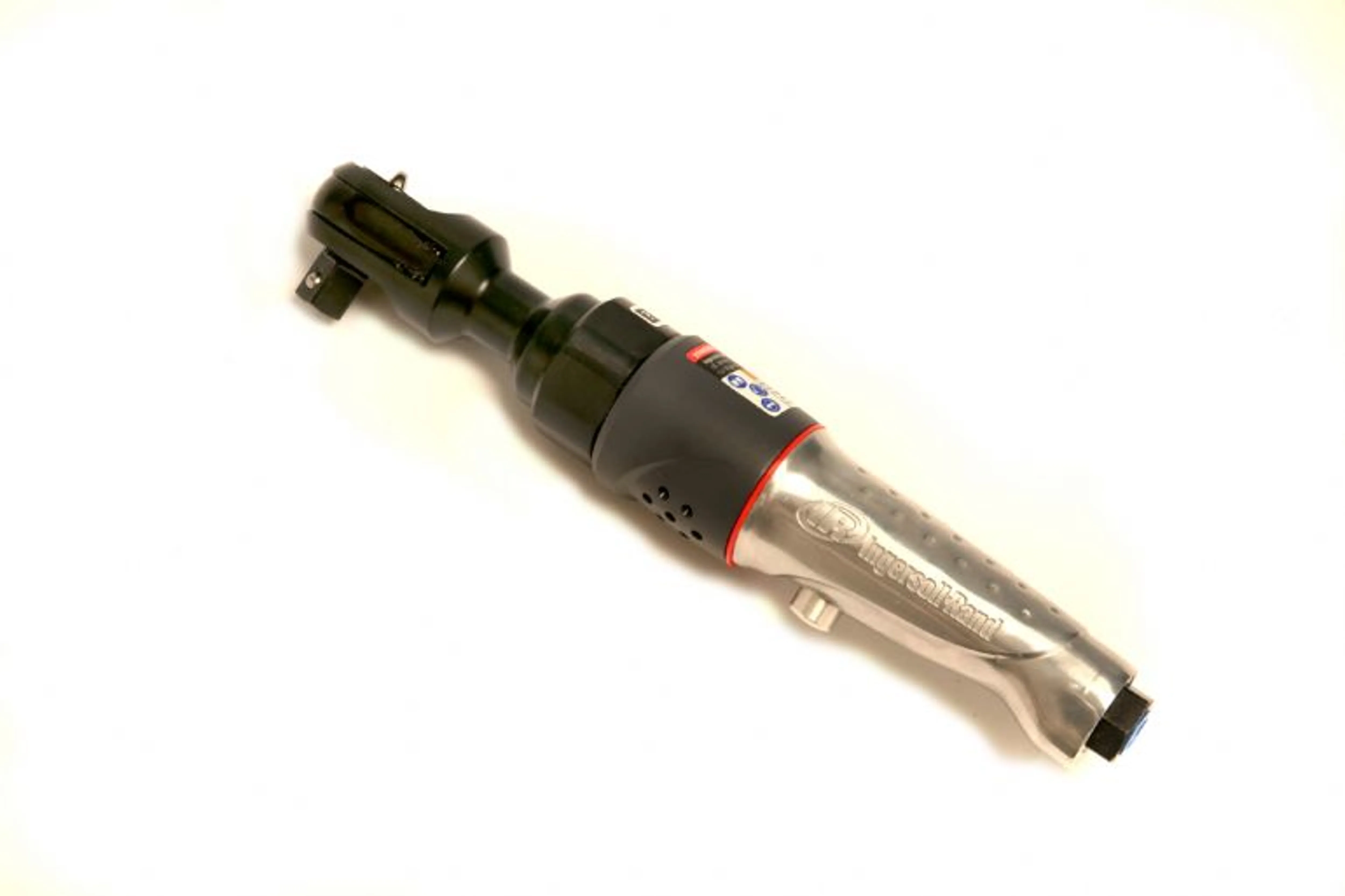

109XPA | 1099XPA 大扭矩棘轮扳手
109XPA 和 1099XPA 棘轮扳手的传动比和气流经过优化，性能和耐用性出众，最大扭矩达 76 ft-lb。109 型工具采用 3/8”驱动头，而 1099 型工具采用 1/2”版本。
<table>
<thead>
<tr>
<th>Model</th>
<th>Drive Size (in)</th>
<th>Switch Type (actuation)</th>
<th>Free Speed (rpm)</th>
<th>Recomm. Torque Range (ft-lb)</th>
<th>Recomm. Torque Range (Nm)</th>
<th>Max Torque (ft-lb)</th>
<th>Max Torque (Nm)</th>
<th>Free Speed Sound Level (dBA)</th>
<th>Vibration Level m/s2 (K)</th>
<th>Weight (lb)</th>
<th>Weight (kg)</th>
<th>Length (in)</th>
<th>Length (mm)</th>
<th>Average Air Consumption (cfm)</th>
<th>Average Air Consumption (L/min)</th>
<th>Free Speed Air Consumption (cfm)</th>
<th>Free Speed Air Consumption (L/min)</th>
<th>Air Inlet NPTF (in)</th>
<th>Min Hose Size (in)</th>
<th>Min Hose Size (mm)</th>
<th></th>
</tr>
</thead>
<tbody>
<tr>
<td>1099XPA</td>
<td>1/2</td>
<td>Button actuation; variable speed</td>
<td>220</td>
<td>10-60</td>
<td>14-81</td>
<td>76</td>
<td>103</td>
<td>92.4</td>
<td>2.5 (0.7)</td>
<td>3.3</td>
<td>1.5</td>
<td>12</td>
<td>305</td>
<td>4</td>
<td>113</td>
<td>24</td>
<td>680</td>
<td>1/4</td>
<td>3/8</td>
<td>10</td>
<td></td>
</tr>
<tr>
<td>109XPA</td>
<td>3/8</td>
<td>Button actuation; variable speed</td>
<td>220</td>
<td>10-60</td>
<td>14-81</td>
<td>76</td>
<td>103</td>
<td>92.4</td>
<td>2.5 (0.7)</td>
<td>3.3</td>
<td>1.5</td>
<td>12</td>
<td>305</td>
<td>4</td>
<td>113</td>
<td>24</td>
<td>680</td>
<td>1/4</td>
<td>3/8</td>
<td>10</td>
<td></td>
</tr>
</tbody>
</table>
