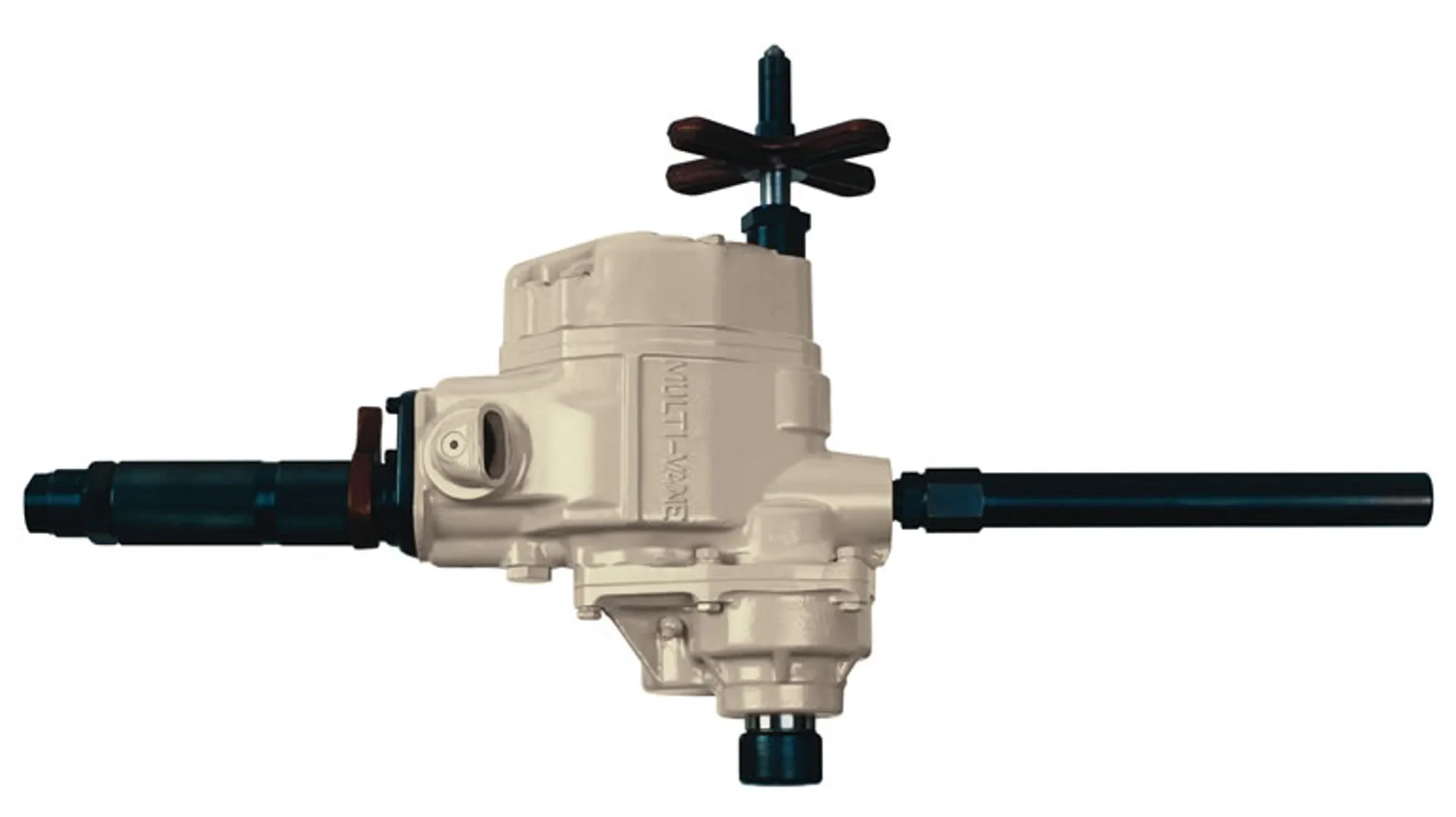

22、33、44 和 551 系列大型钻

Model

Max Power (hp)

Max Power (kw)

Capacity in Steel Reaming (in)

Capacity in Steel Reaming (mm)

Capacity in Steel Drilling (in)

Capacity in Steel Drilling (mm)

Length of Feed (in)

Length of Feed (mm)

Free Speed (rpm)

Air Consumption (cfm)

Air Consumption (L/min)

Spindle

Spindle Attachment

Height Over Spindle (in)

Height Over Spindle (mm)

Side to Center Distance (in)

Side to Center Distance (mm)

Weight w/o Accessory (lb)

Weight w/o Accessory (kg)

Air Inlet NPT (in)

Minimum Hose Size (in)

Minimum Hose Size (mm)

22JA1

1.75

1.31

3/8

10

9/16

14

2.5

63

1025

55

1558

Stub taper

threaded chuck

5/64-1/2 in.

16.38

416

1.44

36

15

6.8

1/2

3/4

22KA1

1.75

1.31

7/16

11

9/16

14

2.5

63

725

55

1558

Stub taper

threaded chuck

5/64 - 1/2 in.

17.63

448

1.44

36

15.25

6.92

1/2

3/4

22KWA1

1.75

1.31

N/A

N/A

N/A

NA

2.5

63

725

55

1558

Stub taper

threaded wood

1/2 in. shank

17.25

438

1.44

36

14.25

6.46

1/2

3/4

22MA2

1.75

1.31

5/8

16

7/8

22

2.5

63

350

55

1558

No.2 Morse Taper

N/A

18.63

473

1.44

36

14.25

6.46

1/2

3/4

19

22NA1

1.65

1.23

5/8

16

7/8

22

2.5

63

280

55

1558

Stub taper

threaded drive

5/8 in. square

20.38

517

1.44

36

16.5

7.48

1/2

3/4

33SJA

3

2.24

15/16

24

1

25

4.25

108

450

85

2407

No. 3 Morse Taper

N/A

14

355

1.88

47

25.75

11.7

1/2

3/4

19

33SKA

3

2.24

1

25

1-1/4

32

4.25

108

300

85

2407

No. 3 Morse Taper

N/A

14

355

1.88

47

25.75

11.7

1/2

3/4

19

33SMA

2.9

2.16

1-1/4

32

1-1/4

32

4.25

108

185

85

2407

No. 3 Morse Taper

N/A

16.81

427

1.94

49

31

14.1

1/2

3/4

19

44SMA

3.6

2.69

2

51

2

51

4.25

108

155

102

2889

No. 4 Morse Taper

N/A

18.25

463

2.31

59

43.75

19.8

1/2

3/4

19

551SMA

5.6

4.18

2-1/2

64

3

76

5

127

120

160

4531

No. 5 Morse Taper

N/A

21.88

556

2.94

75

69

31.3

1

1

25
