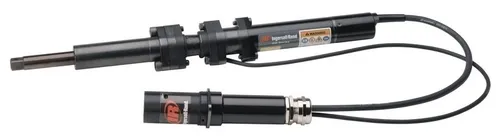

QM3 系列固定式拧紧轴

精确度高
闭环转换控制提供优异的精确度和可追溯性，实现高级扭矩控制策略。

外部电子装置盒
在 QM3 系列上配备，这些盒可简化集成、安装和连接，工作应用容易。

可靠性高
采用重型齿轮传动机构和无刷直流电机，QM3 系列值得信赖、效率高。具有预防性维护提醒，您始终知道您的工具何时需要维护。

<table>

<thead>

<tr>

<th>Model</th>

<th>Torque Range (Nm)</th>

<th>Torque Range (in-lbs)</th>

<th>Torque Range (ft-lbs)</th>

<th>Max Torque (Nm)</th>

<th>Free Speed (rpm)</th>

<th>Spindle Length (mm)</th>

<th>Float (mm)</th>

<th>Length (mm)</th>

<th>Length (in)</th>

<th>Weight (kg)</th>

<th>Weight (lbs)</th>

<th>C-C (mm)</th>

<th>Bolt Size</th>

<th>Square Drive (in)</th>

</tr>

</thead>

<tbody>

<tr>

<td>QM3SS008H22S06</td>

<td>0.8-8</td>

<td>7.08-70.8</td>

<td>0.59 - 5.9</td>

<td>8</td>

<td>1382</td>

<td>318.6</td>

<td>50</td>

<td>599</td>

<td>23.582677165354333</td>

<td>2.7</td>

<td>5.95</td>

<td>34</td>

<td>M4 - M5</td>

<td>3/8</td>

</tr>

<tr>

<td>QM3SS008H22S08</td>

<td>0.8-8</td>

<td>7.08-70.8</td>

<td>0.59 - 5.9</td>

<td>8</td>

<td>1382</td>

<td>318.6</td>

<td>50</td>

<td>599</td>

<td>23.582677165354333</td>

<td>2.7</td>

<td>5.95</td>

<td>34</td>

<td>M4 - M5</td>

<td>1/2</td>

</tr>

<tr>

<td>QM3SS008H62S06</td>

<td>0.8-8</td>

<td>7.08-70.8</td>

<td>0.59 - 5.9</td>

<td>8</td>

<td>1382</td>

<td>168.6</td>

<td>50</td>

<td>449</td>

<td>17.67716535433071</td>

<td>2.4</td>

<td>5.29</td>

<td>34</td>

<td>M4 - M5</td>

<td>3/8</td>

</tr>

<tr>

<td>QM3SS008H62S08</td>

<td>0.8-8</td>

<td>7.08-70.8</td>

<td>0.59 - 5.9</td>

<td>8</td>

<td>1382</td>

<td>168.6</td>

<td>50</td>

<td>449</td>

<td>17.67716535433071</td>

<td>2.4</td>

<td>5.29</td>

<td>34</td>

<td>M4 - M5</td>

<td>1/2</td>

</tr>

<tr>

<td>QM3SS008H92S06</td>

<td>0.8-8</td>

<td>7.08-70.8</td>

<td>0.59 - 5.9</td>

<td>8</td>

<td>1382</td>

<td>243.6</td>

<td>50</td>

<td>524</td>

<td>20.629921259842522</td>

<td>2.4</td>

<td>5.29</td>

<td>34</td>

<td>M4 - M5</td>

<td>3/8</td>

</tr>

<tr>

<td>QM3SS008H92S08</td>

<td>0.8-8</td>

<td>7.08-70.8</td>

<td>0.59 - 5.9</td>

<td>8</td>

<td>1382</td>

<td>243.6</td>

<td>50</td>

<td>524</td>

<td>20.629921259842522</td>

<td>2.5</td>

<td>5.51</td>

<td>34</td>

<td>M4 - M5</td>

<td>1/2</td>

</tr>

<tr>

<td>QM3SS012H22S06</td>

<td>1.2-12</td>

<td>10.62-106.2</td>

<td>0.9 - 8.8</td>

<td>12</td>

<td>927</td>

<td>318.6</td>

<td>50</td>

<td>599</td>

<td>23.582677165354333</td>

<td>2.7</td>

<td>5.95</td>

<td>34</td>

<td>M4 - M6</td>

<td>3/8</td>

</tr>

<tr>

<td>QM3SS012H22S08</td>

<td>1.2-12</td>

<td>10.62-106.2</td>

<td>0.9 - 8.8</td>

<td>12</td>

<td>927</td>

<td>318.6</td>

<td>50</td>

<td>599</td>

<td>23.582677165354333</td>

<td>2.7</td>

<td>5.95</td>

<td>34</td>

<td>M4 - M6</td>

<td>1/2</td>

</tr>

<tr>

<td>QM3SS012H62S06</td>

<td>1.2-12</td>

<td>10.62-106.2</td>

<td>0.9 - 8.8</td>

<td>12</td>

<td>927</td>

<td>168.6</td>

<td>50</td>

<td>449</td>

<td>17.67716535433071</td>

<td>2.4</td>

<td>5.29</td>

<td>34</td>

<td>M4 - M6</td>

<td>3/8</td>

</tr>

<tr>

<td>QM3SS012H62S08</td>

<td>1.2-12</td>

<td>10.62-106.2</td>

<td>0.9 - 8.8</td>

<td>12</td>

<td>927</td>

<td>168.6</td>

<td>50</td>

<td>449</td>

<td>17.67716535433071</td>

<td>2.4</td>

<td>5.29</td>

<td>34</td>

<td>M4 - M6</td>

<td>1/2</td>

</tr>

<tr>

<td>QM3SS012H92S06</td>

<td>1.2-12</td>

<td>10.62-106.2</td>

<td>0.9 - 8.8</td>

<td>12</td>

<td>927</td>

<td>243.6</td>

<td>50</td>

<td>524</td>

<td>20.629921259842522</td>

<td>2.5</td>

<td>5.51</td>

<td>34</td>

<td>M4 - M6</td>

<td>3/8</td>

</tr>

<tr>

<td>QM3SS012H92S08</td>

<td>1.2-12</td>

<td>10.62-106.2</td>

<td>0.9 - 8.8</td>

<td>12</td>

<td>927</td>

<td>243.6</td>

<td>50</td>

<td>524</td>

<td>20.629921259842522</td>

<td>2.5</td>

<td>5.51</td>

<td>34</td>

<td>M4 - M6</td>

<td>1/2</td>

</tr>

<tr>

<td>QM3SS016H22S06</td>

<td>1.6-16</td>

<td>14.16-141.6</td>

<td>1.2 - 11.7</td>

<td>16</td>

<td>686</td>

<td>318.6</td>

<td>50</td>

<td>599</td>

<td>23.582677165354333</td>

<td>2.7</td>

<td>5.95</td>

<td>34</td>

<td>M4 - M6</td>

<td>3/8</td>

</tr>

<tr>

<td>QM3SS016H22S08</td>

<td>1.6-16</td>

<td>14.16-141.6</td>

<td>1.2 - 11.7</td>

<td>16</td>

<td>686</td>

<td>318.6</td>

<td>50</td>

<td>599</td>

<td>23.582677165354333</td>

<td>2.7</td>

<td>5.95</td>

<td>34</td>

<td>M4 - M6</td>

<td>1/2</td>

</tr>

<tr>

<td>QM3SS016H62S06</td>

<td>1.6-16</td>

<td>14.16-141.6</td>

<td>1.2 - 11.7</td>

<td>16</td>

<td>686</td>

<td>168.6</td>

<td>50</td>

<td>449</td>

<td>17.67716535433071</td>

<td>2.4</td>

<td>5.29</td>

<td>34</td>

<td>M4 - M6</td>

<td>3/8</td>

</tr>

<tr>

<td>QM3SS016H62S08</td>

<td>1.6-16</td>

<td>14.16-141.6</td>

<td>1.2 - 11.7</td>

<td>16</td>

<td>686</td>

<td>168.6</td>

<td>50</td>

<td>449</td>

<td>17.67716535433071</td>

<td>2.4</td>

<td>5.29</td>

<td>34</td>

<td>M4 - M6</td>

<td>1/2</td>

</tr>

<tr>

<td>QM3SS016H92S06</td>

<td>1.6-16</td>

<td>14.16-141.6</td>

<td>1.2 - 11.7</td>

<td>16</td>

<td>686</td>

<td>243.6</td>

<td>50</td>

<td>524</td>

<td>20.629921259842522</td>

<td>2.5</td>

<td>5.51</td>

<td>34</td>

<td>M4 - M6</td>

<td>3/8</td>

</tr>

<tr>

<td>QM3SS016H92S08</td>

<td>1.6-16</td>

<td>14.16-141.6</td>

<td>1.2 - 11.7</td>

<td>16</td>

<td>686</td>

<td>243.6</td>

<td>50</td>

<td>524</td>

<td>20.629921259842522</td>

<td>2.5</td>

<td>5.51</td>

<td>34</td>

<td>M4 - M6</td>

<td>1/2</td>

</tr>

<tr>

<td>QM3SS020H22S06</td>

<td>2-20</td>

<td>17.7-177</td>

<td>1.5 - 14.7</td>

<td>20</td>

<td>545</td>

<td>318.6</td>

<td>50</td>

<td>599</td>

<td>23.582677165354333</td>

<td>2.7</td>

<td>5.95</td>

<td>34</td>

<td>M5 - M6</td>

<td>3/8</td>

</tr>

<tr>

<td>QM3SS020H22S08</td>

<td>2-20</td>

<td>17.7-177</td>

<td>1.5 - 14.7</td>

<td>20</td>

<td>545</td>

<td>318.6</td>

<td>50</td>

<td>599</td>

<td>23.582677165354333</td>

<td>2.7</td>

<td>5.95</td>

<td>34</td>

<td>M5 - M6</td>

<td>1/2</td>

</tr>

<tr>

<td>QM3SS020H62S06</td>

<td>2-20</td>

<td>17.7-177</td>

<td>1.5 - 14.7</td>

<td>20</td>

<td>545</td>

<td>168.6</td>

<td>50</td>

<td>449</td>

<td>17.67716535433071</td>

<td>2.4</td>

<td>5.29</td>

<td>34</td>

<td>M5 - M6</td>

<td>3/8</td>

</tr>

<tr>

<td>QM3SS020H62S08</td>

<td>2-20</td>

<td>17.7-177</td>

<td>1.5 - 14.7</td>

<td>20</td>

<td>545</td>

<td>168.6</td>

<td>50</td>

<td>449</td>

<td>17.67716535433071</td>

<td>2.4</td>

<td>5.29</td>

<td>34</td>

<td>M5 - M6</td>

<td>1/2</td>

</tr>

<tr>

<td>QM3SS020H92S06</td>

<td>2-20</td>

<td>17.7-177</td>

<td>1.5 - 14.7</td>

<td>20</td>

<td>545</td>

<td>243.6</td>

<td>50</td>

<td>524</td>

<td>20.629921259842522</td>

<td>2.5</td>

<td>5.51</td>

<td>34</td>

<td>M5 - M6</td>

<td>3/8</td>

</tr>

<tr>

<td>QM3SS020H92S08</td>

<td>2-20</td>

<td>17.7-177</td>

<td>1.5 - 14.7</td>

<td>20</td>

<td>545</td>

<td>243.6</td>

<td>50</td>

<td>524</td>

<td>20.629921259842522</td>

<td>2.5</td>

<td>5.51</td>

<td>34</td>

<td>M5 - M6</td>

<td>1/2</td>

</tr>

</tbody>

</table>
