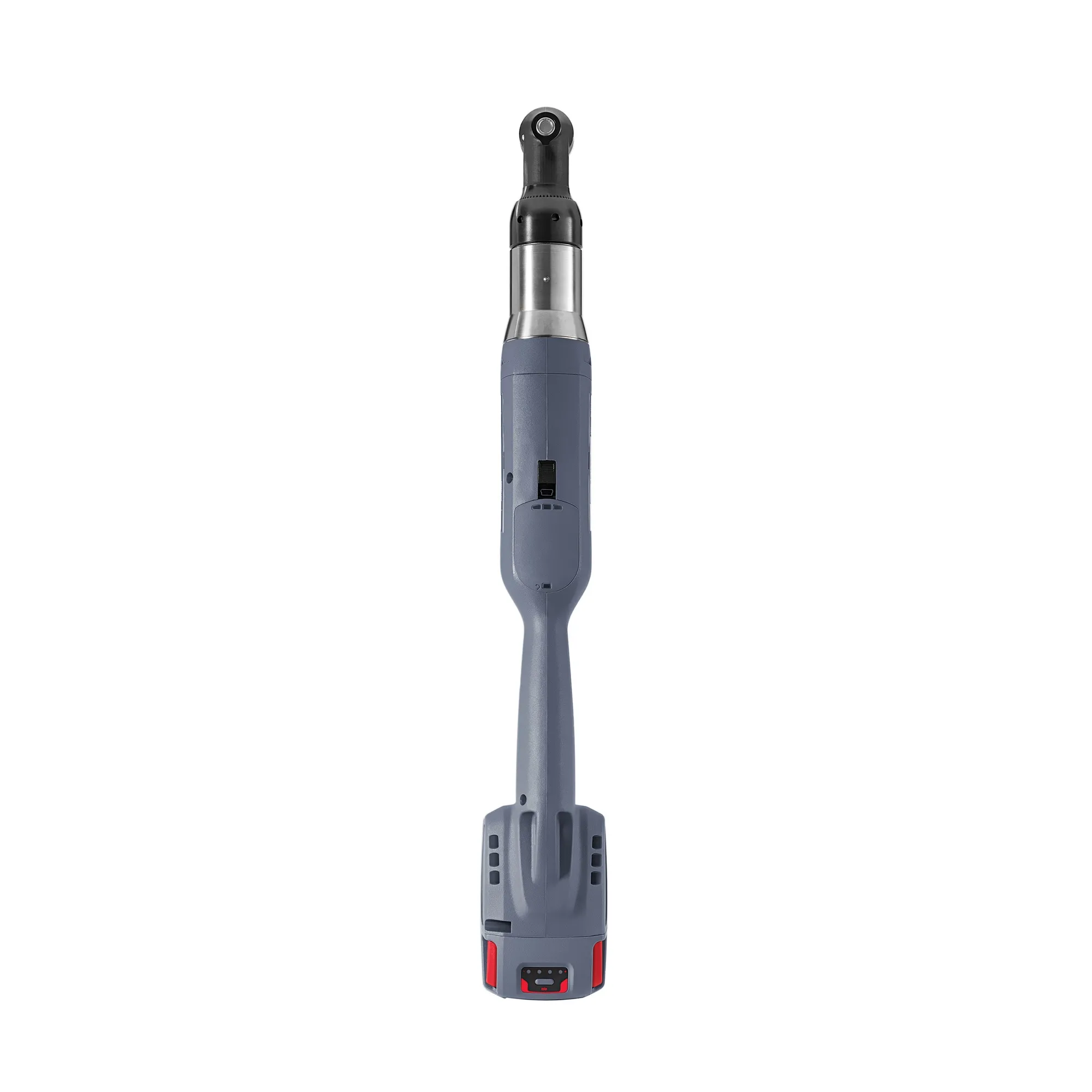

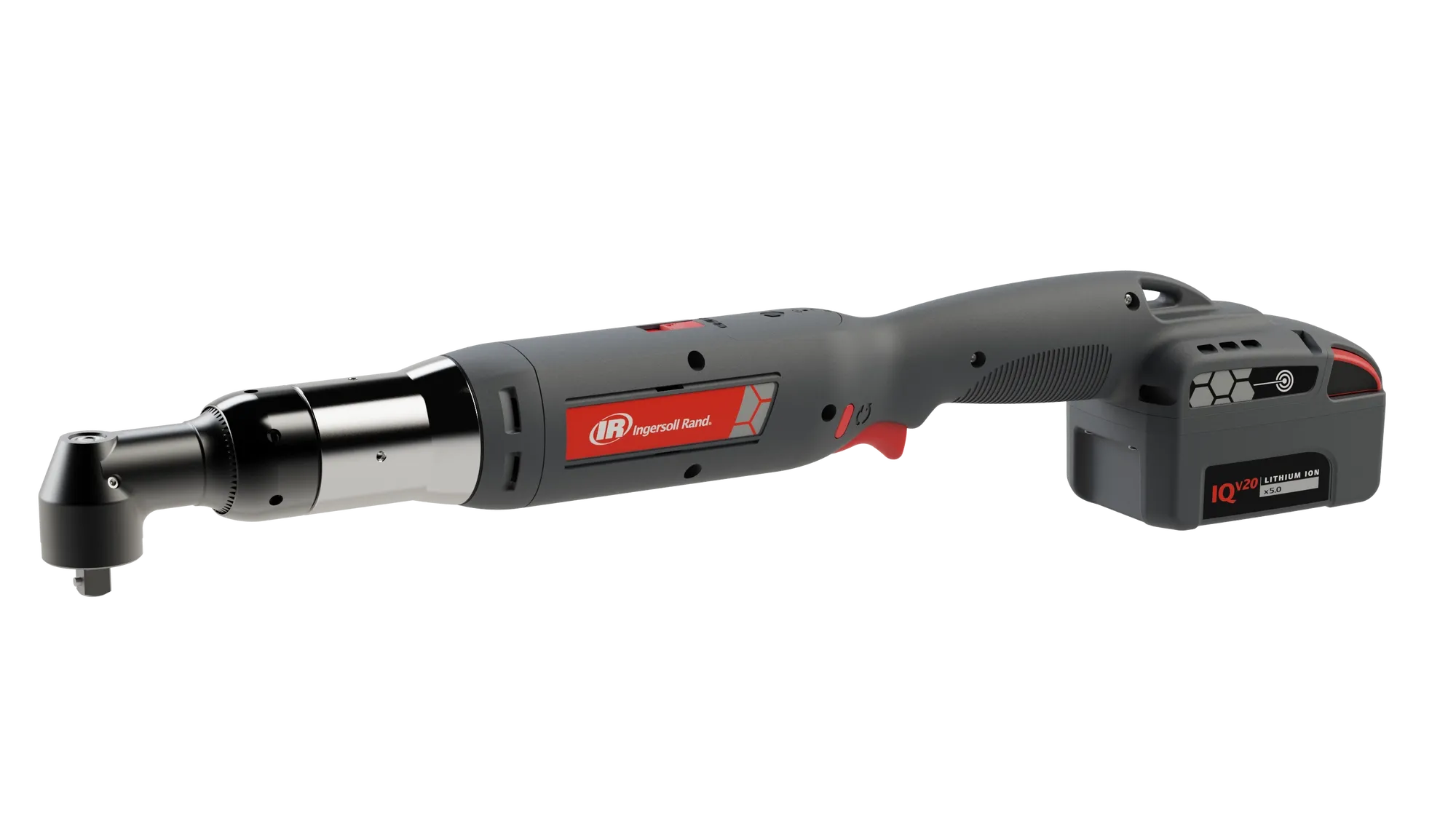

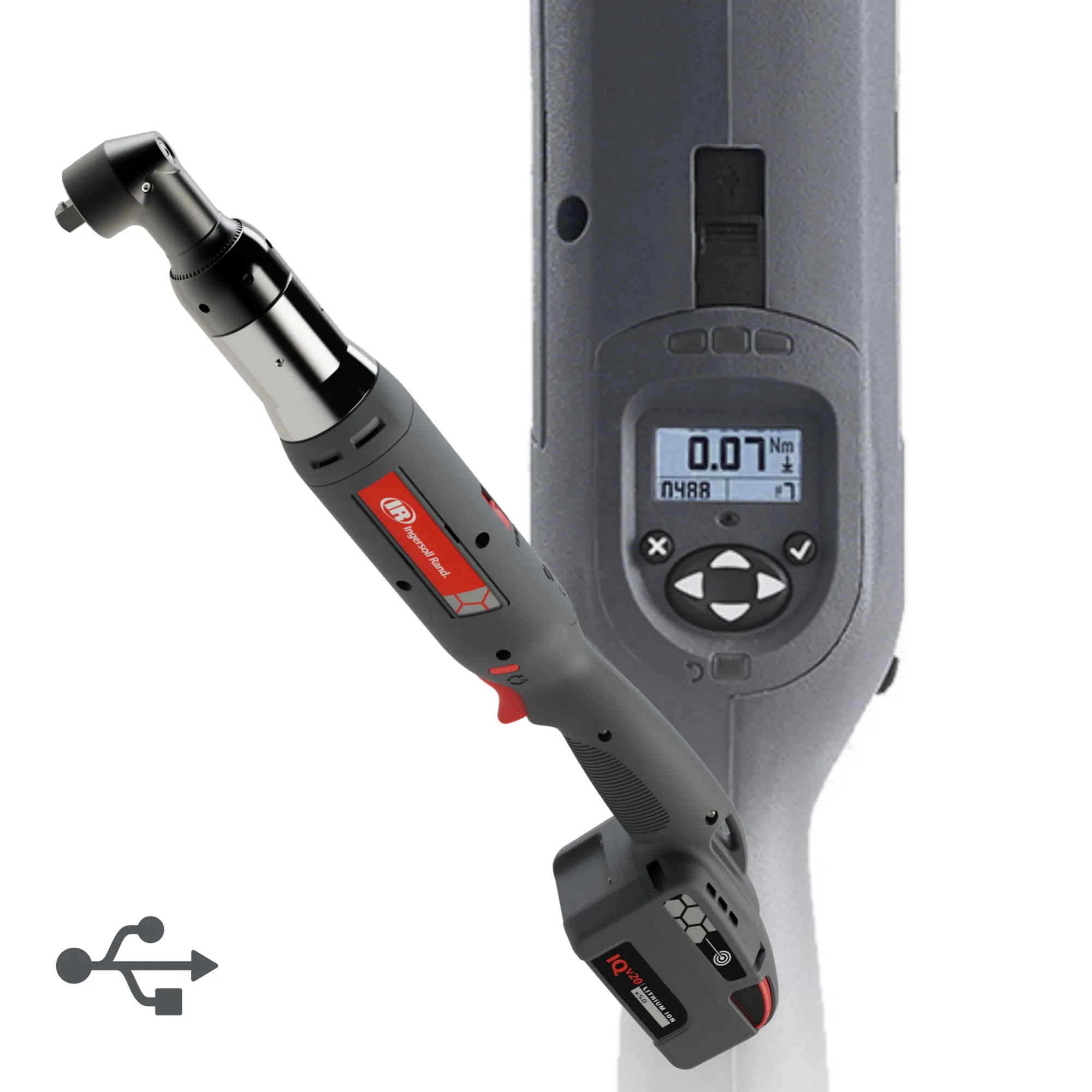

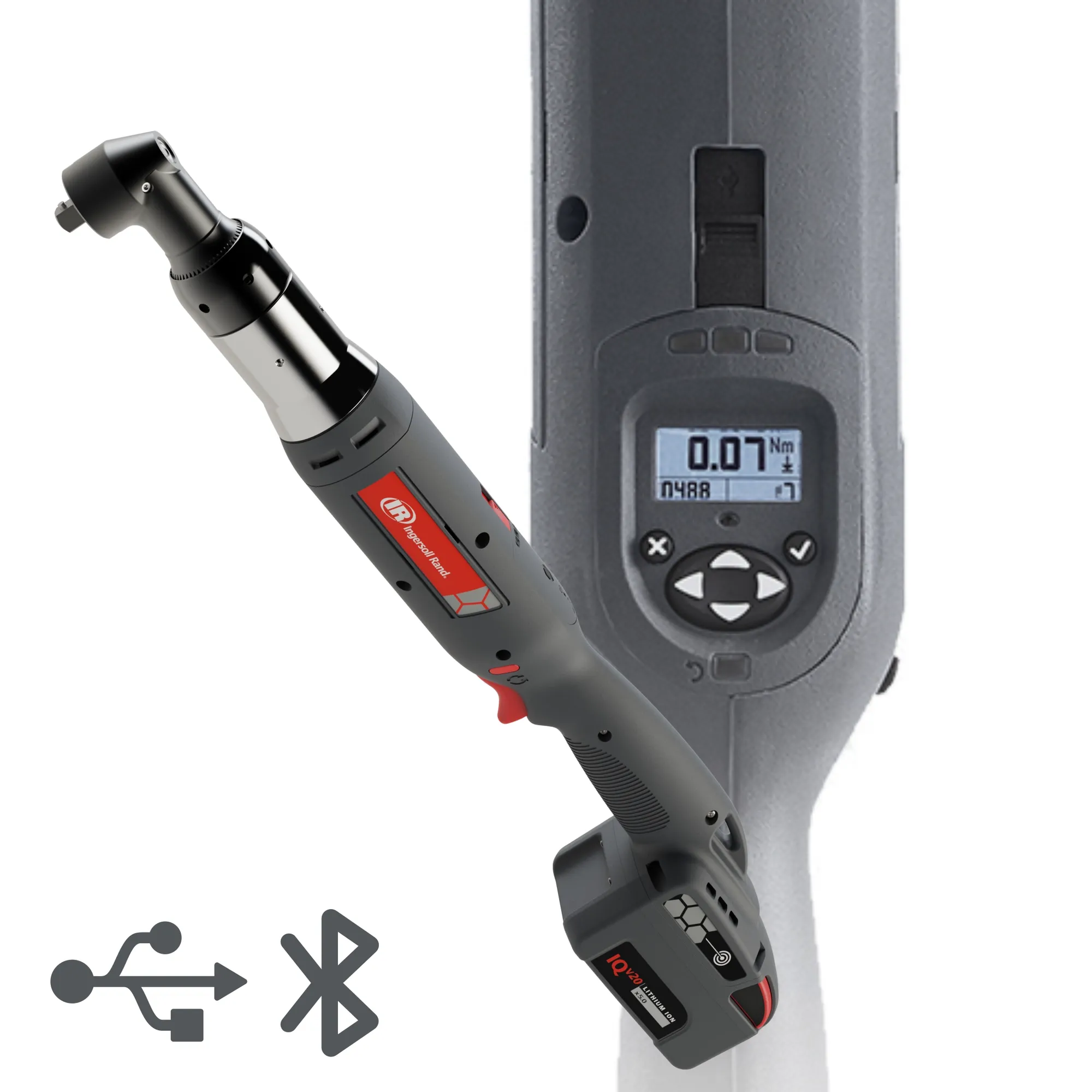

使用 20V 弯头 QXC 精密螺丝刀提高您组装生产线的生产率。这种弯头扳手通过增加长度和角度提高人体工程学效果，从而通过单个工具提供 8 种可编程配置。这一 QX 系列精密紧固系统的构件可以将您的操作简化到一种工具中，并且提供精确且可追踪的结果。使用 QX 系列符合人体工程学的拧紧系统，可以轻松减少扭矩反作用力。
使用 INSIGHT Connect 应用程序增加移动性并进一步增强 Ingersoll Rand QX 系列充电式装配工具的简单性和灵活性。
Model | Configuration | Torque Range (Nm) | Torque Range (in-lbs) | Free Speed (RPM) | Drive Size/Type | Communication | Battery Type | Weight w/out Battery (kg) | Weight w/out Battery (lbs) | Side to Center (mm) | Side To Center (in) | Length (mm) | Length (in) | Height with slim battery (mm) | Height with slim battery (in) | Height with large battery (mm) | Height with large battery (in) |
QXC2AT05PQ4 | Right Angle | 1.0-5 | 9-44 | 1213 | 1/4 in. Quick Change | USB Only | 20V Li-ion | 1.14 | 2.5 | 9.2 | 0.36 | 550.2 | 21.67 | 80.6 | 3.17 | 100 | 3.94 |
QXC2AT10PS6 | Right Angle | 2.0-10 | 18-89 | 936 | 3/8 in. Square | USB Only | 20V Li-ion | 1.18 | 2.6 | 12.5 | 0.49 | 525 | 20.67 | 80.6 | 3.17 | 100 | 3.94 |
QXC2AT15PS6 | Right Angle | 3.0-15 | 27-133 | 600 | 3/8 in. Square | USB Only | 20V Li-ion | 1.18 | 2.6 | 12.5 | 0.49 | 525 | 20.67 | 80.6 | 3.17 | 100 | 3.94 |
QXC2AT18PQ4 | Right Angle | 3.6-18 | 32-159 | 500 | 1/4 in. Quick Change | USB Only | 20V Li-ion | 1.27 | 2.8 | 13.3 | 0.52 | 542 | 21.34 | 80.6 | 3.17 | 100 | 3.94 |
QXC2AT18PS6 | Right Angle | 3.6-18 | 32-159 | 500 | 3/8 in. Square | USB Only | 20V Li-ion | 1.27 | 2.8 | 13.3 | 0.52 | 542 | 21.34 | 80.6 | 3.17 | 100 | 3.94 |
QXC2AT27ES6 | Right Angle-ETS | 5.4-27 | 48-239 | 330 | 3/8 in. Square | USB Only | 20V Li-ion | 1.68 | 3.7 | 17.2 | 0.67 | 552 | 21.73 | 80.6 | 3.17 | 100 | 3.94 |
QXC2AT27PS6 | Right Angle | 5.4-27 | 48-239 | 330 | 3/8 in. Square | USB Only | 20V Li-ion | 1.68 | 3.7 | 17.2 | 0.67 | 552 | 21.73 | 80.6 | 3.17 | 100 | 3.94 |
Cordless Screwdriver and Nutrunner

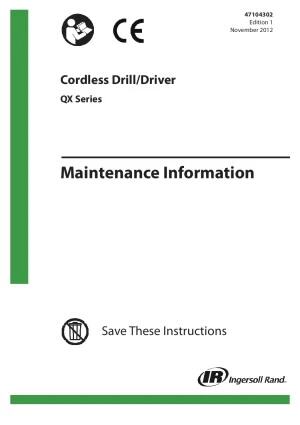

47104302, Maintenance, QX Series

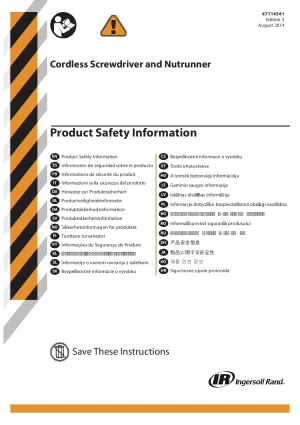

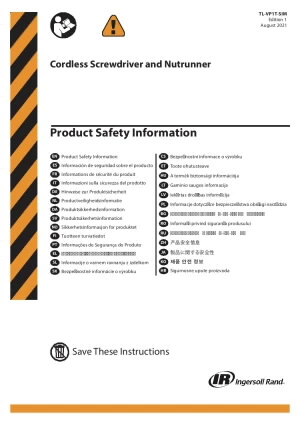

TL-VP1T-SIM_ED1, Product Safety Information, Cordless Screwdriver and Nutrunner

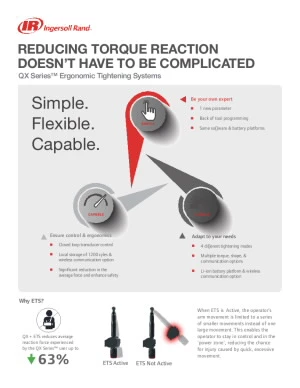

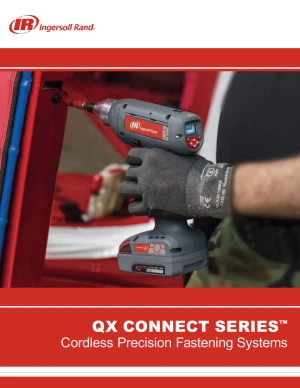

QX CONNECT SERIES™ FLYER
TL-VP1T-UIM_QSG_ED1, Quick Start Guide, QX Series

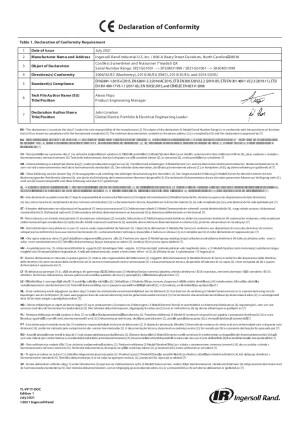

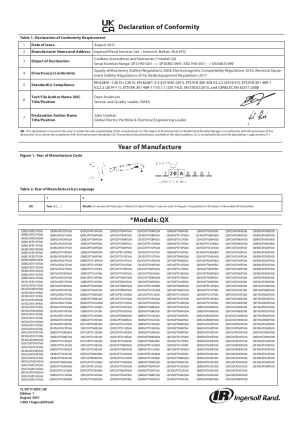

TL-VP1T-DOC_ED1, CE Declaration of conformity, July 2021

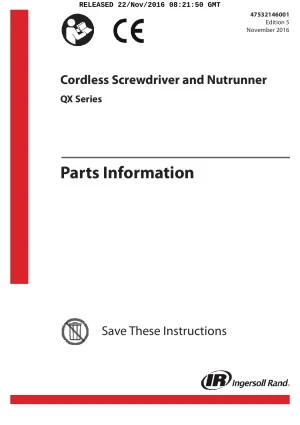

TL-VP1T-PIM_ed1_A, Product Information, QX Series
