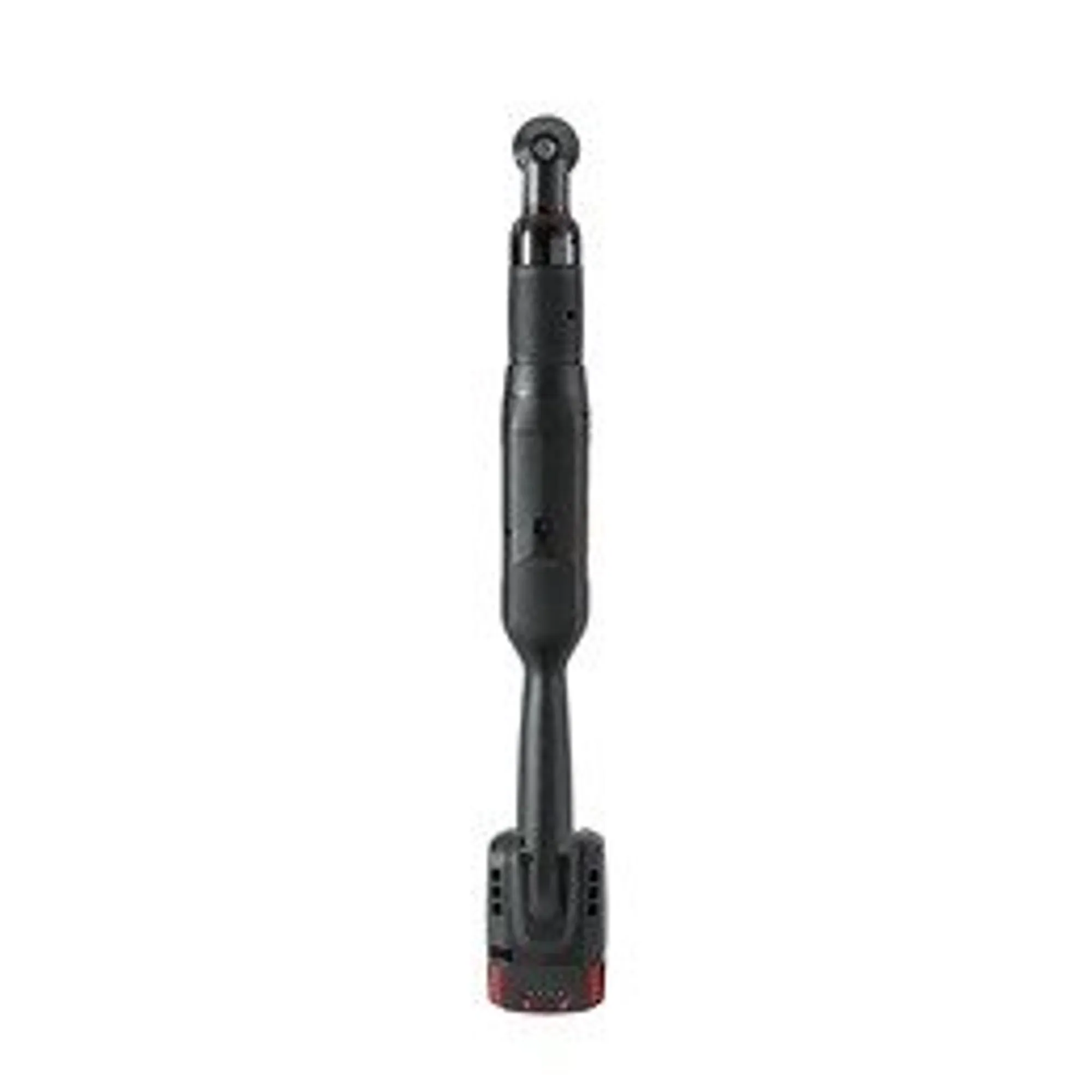

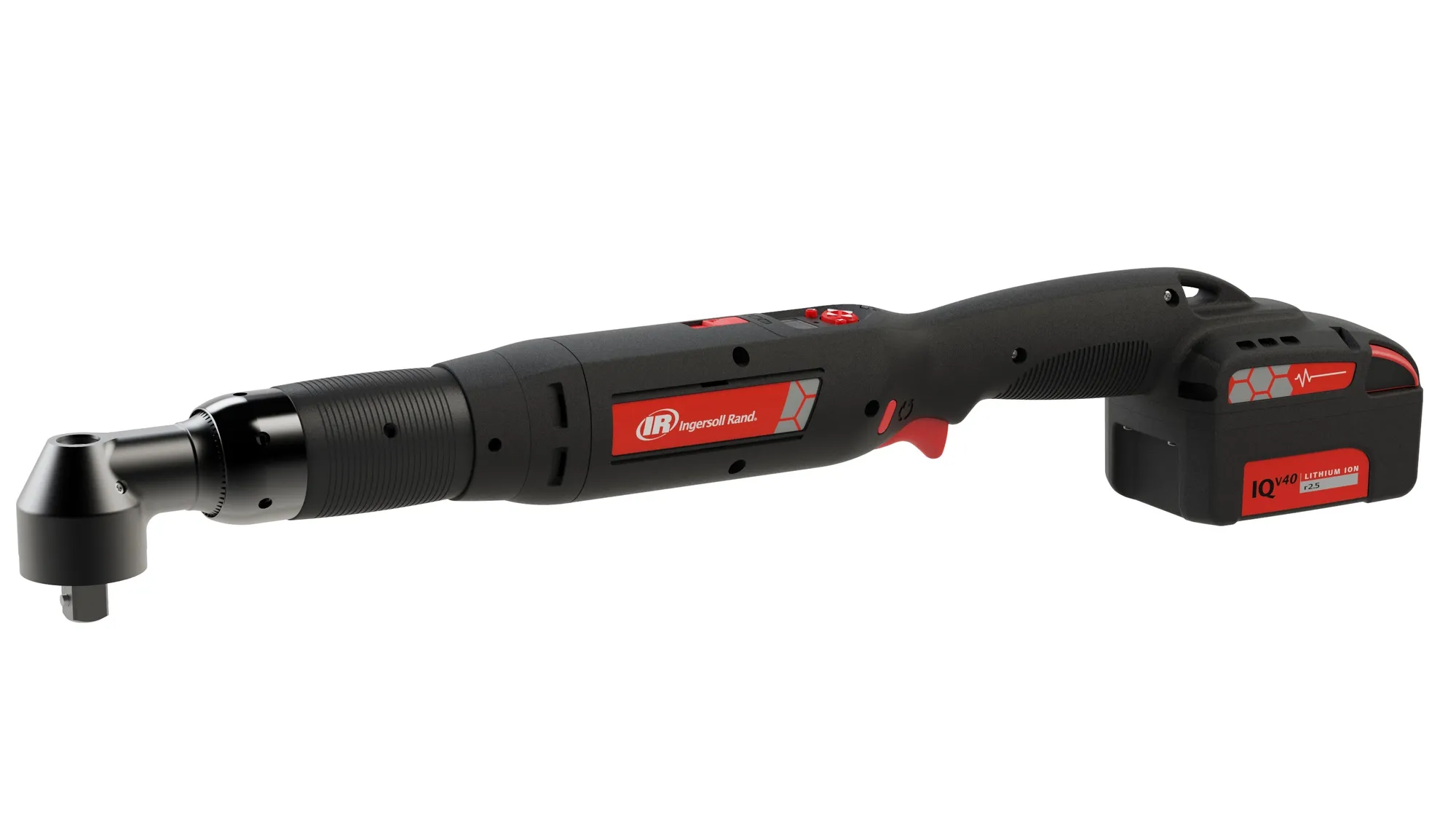

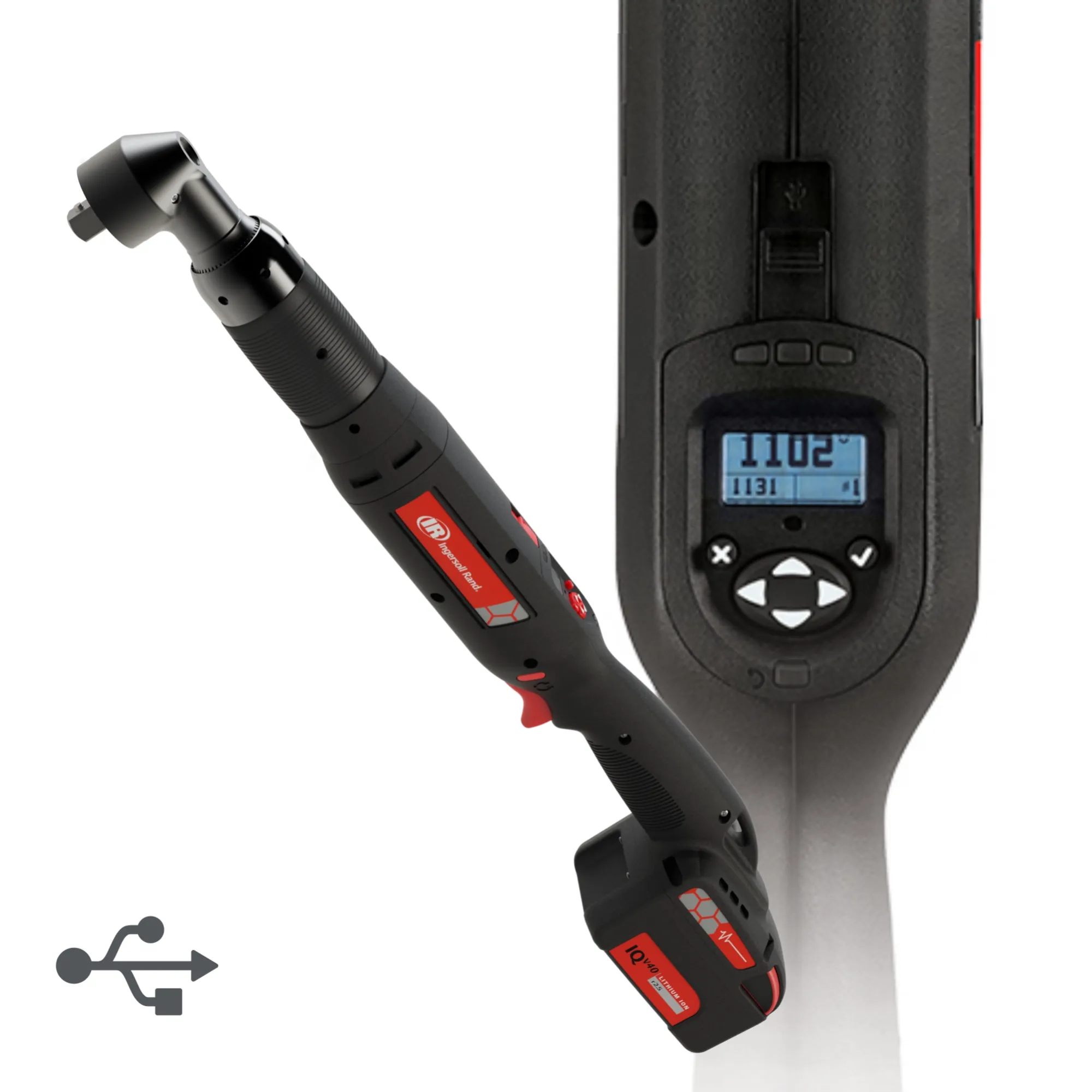

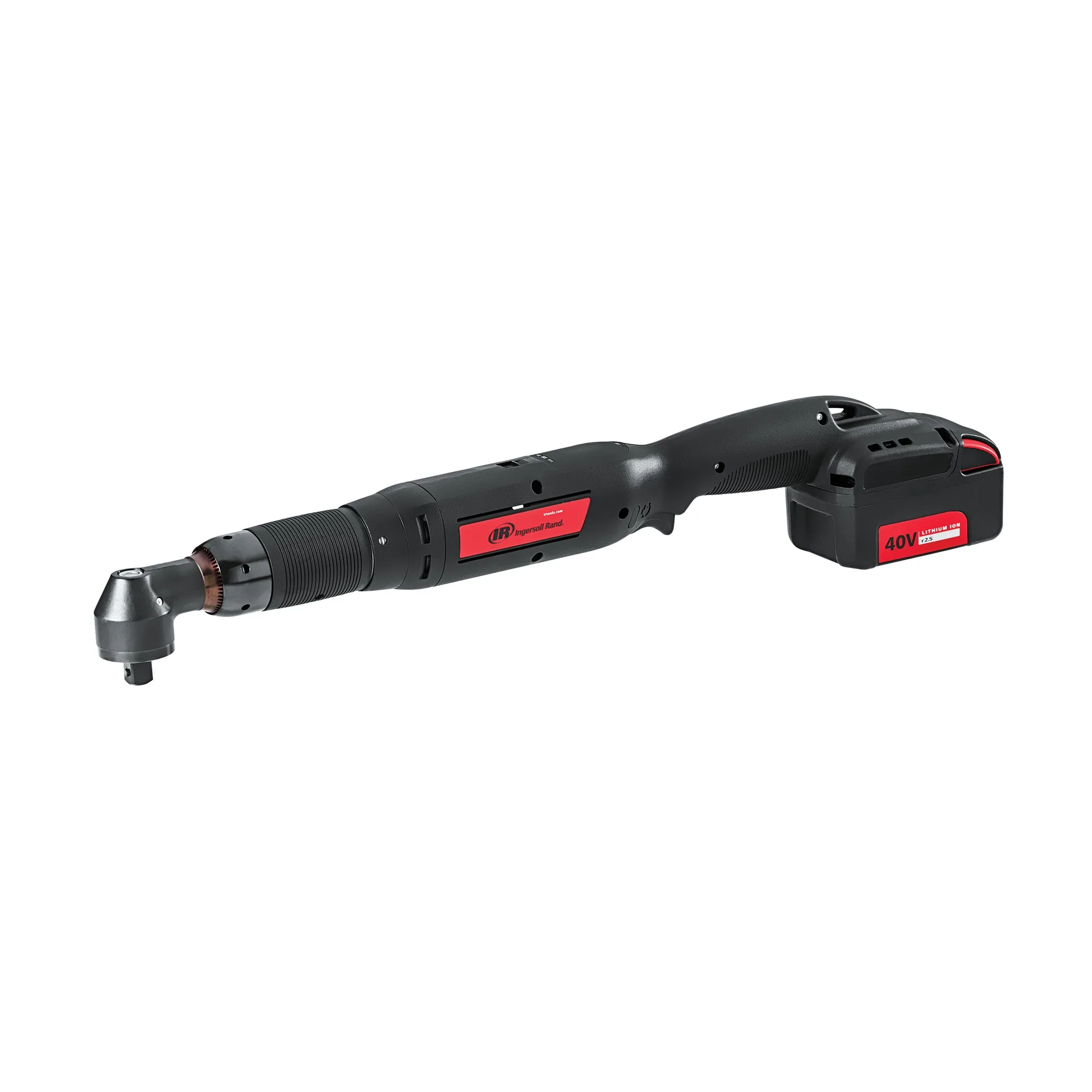

QXC 高扭矩弯头扳手

• 共提供 8 种可编程拧紧配置
• 通过绿色、红色和黄色指示灯提供直观的定性反馈
• 存储 1,200 个周期的本机拧紧数据
• 可使用 ICS 软件通过 USB 编程
• 可配置预防性维护警报
• 改进的定量反馈 – 显示实际测量的扭矩或角度结果
• 还可通过本机键盘/显示屏进行编程
• QX Series™ IQV40 高扭矩工具采用  BL4011 40V 2.5Ah 电池，可提高扭矩、增加运行时间。 BL4011 最适合长时间使用。这种 40 伏特电池采用我们的 IQv 系列 40V  2.5Ah 充电器 BC1161。

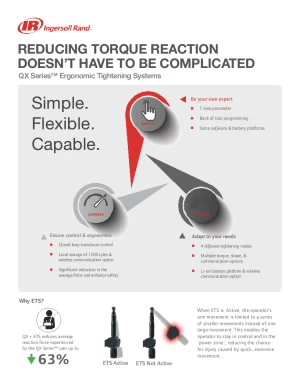

• 可选配符合人体工程学的拧紧系统，减少操作员感受到的扭矩反作用力。请访问  QX ETS 了解详情。

<table>

<thead>

<tr>

<th>Model</th>

<th>Configuration</th>

<th>Torque Range (Nm)</th>

<th>Torque Range (ft-lbs)</th>

<th>Free Speed (RPM)</th>

<th>Drive Size/Type</th>

<th>Communication</th>

<th>Battery Type</th>

<th>Weight w/out Battery (kg)</th>

<th>Weight w/out Battery (lbs)</th>

<th>Side to Center (mm)</th>

<th>Side To Center (in)</th>

<th>Length (mm)</th>

<th>Length (in)</th>

<th>Height (mm)</th>

<th>Height (in)</th>

</tr>

</thead>

<tbody>

<tr>

<td>QXC5AT20PS06</td>

<td>Right Angle</td>

<td>4.0-20</td>

<td>2.9 -14.8</td>

<td>1045</td>

<td>3/8 in. Square</td>

<td>USB Only</td>

<td>40V Li-ion</td>

<td>2.04</td>

<td>4.5</td>

<td>13.1</td>

<td>0.52</td>

<td>577.7</td>

<td>22.74</td>

<td>100</td>

<td>3.94</td>

</tr>

<tr>

<td>QXC5AT30PS06</td>

<td>Right Angle</td>

<td>6.0-30</td>

<td>4.4-22.1</td>

<td>775</td>

<td>3/8 in. Square</td>

<td>USB Only</td>

<td>40V Li-ion</td>

<td>2.18</td>

<td>4.8</td>

<td>17.2</td>

<td>0.68</td>

<td>581.8</td>

<td>22.91</td>

<td>100</td>

<td>3.94</td>

</tr>

<tr>

<td>QXC5AT30PS08</td>

<td>Right Angle</td>

<td>6.0-30</td>

<td>4.4-22.1</td>

<td>775</td>

<td>1/2 in. Square</td>

<td>USB Only</td>

<td>40V Li-ion</td>

<td>2.18</td>

<td>4.8</td>

<td>17.2</td>

<td>0.68</td>

<td>581.8</td>

<td>22.91</td>

<td>100</td>

<td>3.94</td>

</tr>

<tr>

<td>QXC5AT35PS06</td>

<td>Right Angle</td>

<td>7.0-35</td>

<td>5.2-25.8</td>

<td>640</td>

<td>3/8 in. Square</td>

<td>USB Only</td>

<td>40V Li-ion</td>

<td>2.18</td>

<td>4.8</td>

<td>17.2</td>

<td>0.68</td>

<td>581.8</td>

<td>22.91</td>

<td>100</td>

<td>3.94</td>

</tr>

<tr>

<td>QXC5AT35PS08</td>

<td>Right Angle</td>

<td>7.0-35</td>

<td>5.2-25.8</td>

<td>640</td>

<td>1/2 in. Square</td>

<td>USB Only</td>

<td>40V Li-ion</td>

<td>2.18</td>

<td>4.8</td>

<td>17.2</td>

<td>0.68</td>

<td>581.8</td>

<td>22.91</td>

<td>100</td>

<td>3.94</td>

</tr>

<tr>

<td>QXC5AT40ES08</td>

<td>Right Angle-ETS</td>

<td>8.0-40</td>

<td>5.9-29.5</td>

<td>545</td>

<td>1/2 in. Square</td>

<td>USB Only</td>

<td>40V Li-ion</td>

<td>2.27</td>

<td>5</td>

<td>21.6</td>

<td>0.85</td>

<td>586.1</td>

<td>23.07</td>

<td>100</td>

<td>3.94</td>

</tr>

<tr>

<td>QXC5AT40PS08</td>

<td>Right Angle</td>

<td>8.0-40</td>

<td>5.9-29.5</td>

<td>545</td>

<td>1/2 in. Square</td>

<td>USB Only</td>

<td>40V Li-ion</td>

<td>2.27</td>

<td>5</td>

<td>21.6</td>

<td>0.85</td>

<td>586.1</td>

<td>23.07</td>

<td>100</td>

<td>3.94</td>

</tr>

<tr>

<td>QXC5AT80ES08</td>

<td>Right Angle-ETS</td>

<td>12.0-80</td>

<td>8.8-59.0</td>

<td>375</td>

<td>1/2 in. Square</td>

<td>USB Only</td>

<td>40V Li-ion</td>

<td>2.27</td>

<td>5</td>

<td>21.6</td>

<td>0.85</td>

<td>586.1</td>

<td>23.07</td>

<td>100</td>

<td>3.94</td>

</tr>

<tr>

<td>QXC5AT80PS08</td>

<td>Right Angle</td>

<td>12.0-80</td>

<td>8.8-59.0</td>

<td>375</td>

<td>1/2 in. Square</td>

<td>USB Only</td>

<td>40V Li-ion</td>

<td>2.27</td>

<td>5</td>

<td>21.6</td>

<td>0.85</td>

<td>586.1</td>

<td>23.07</td>

<td>100</td>

<td>3.94</td>

</tr>

</tbody>

</table>
