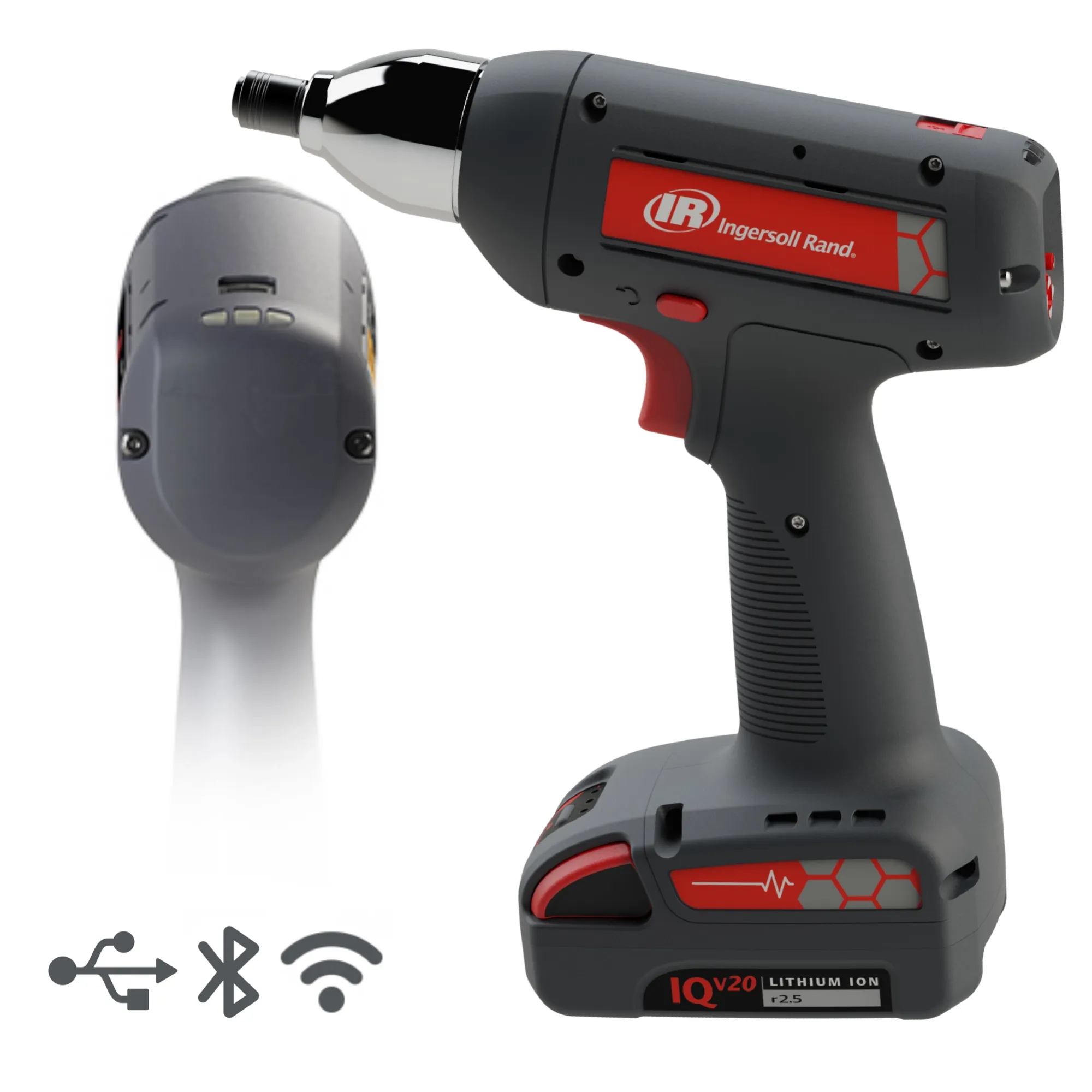

QXX 充电式精密螺丝刀

PTL-En-Product-Photo-qxxn-precision-screwdriver

PTL-En-Product-Photo-qxxn-precision-screwdriver-V2

PTL-En-Product-Photo-qxxn-precision-screwdriver-V3

PTL-En-Product-Photo-qxxn-precision-screwdriver-V4

PTL-En-Product-Photo-qxxn-precision-screwdriver-V5

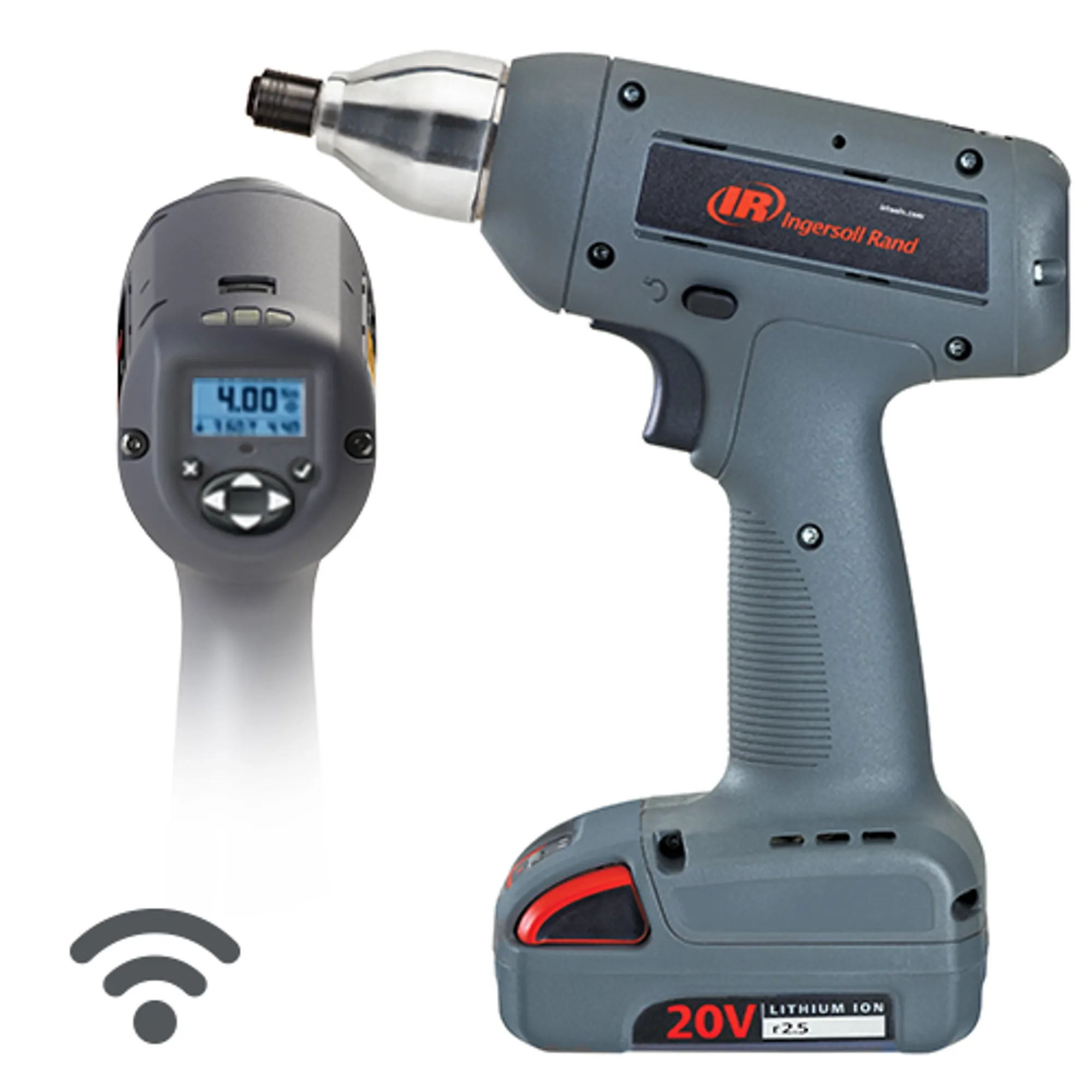

PTL-En-Product-Photo-qxxn-precision-screwdriver-V6

PTL-En-Product-Photo-qxxn-precision-screwdriver-V7

PTL-En-Product-Photo-qxxn-precision-screwdriver-V8

PTL-En-Product-Photo-qxxn-precision-screwdriver-V9

PTL-En-Product-Photo-qxxn-precision-screwdriver-V10

PTL-En-Product-Photo-qxxn-precision-screwdriver-V11

PTL-En-Product-Photo-qxxn-precision-screwdriver-V12

PTL-En-Product-Photo-qxxn-precision-screwdriver

PTL-En-Product-Photo-qxxn-precision-screwdriver-V2

PTL-En-Product-Photo-qxxn-precision-screwdriver-V3

PTL-En-Product-Photo-qxxn-precision-screwdriver-V4

PTL-En-Product-Photo-qxxn-precision-screwdriver-V5

PTL-En-Product-Photo-qxxn-precision-screwdriver-V6

PTL-En-Product-Photo-qxxn-precision-screwdriver-V7

PTL-En-Product-Photo-qxxn-precision-screwdriver-V8

PTL-En-Product-Photo-qxxn-precision-screwdriver-V9

PTL-En-Product-Photo-qxxn-precision-screwdriver-V10

PTL-En-Product-Photo-qxxn-precision-screwdriver-V11

PTL-En-Product-Photo-qxxn-precision-screwdriver-V12

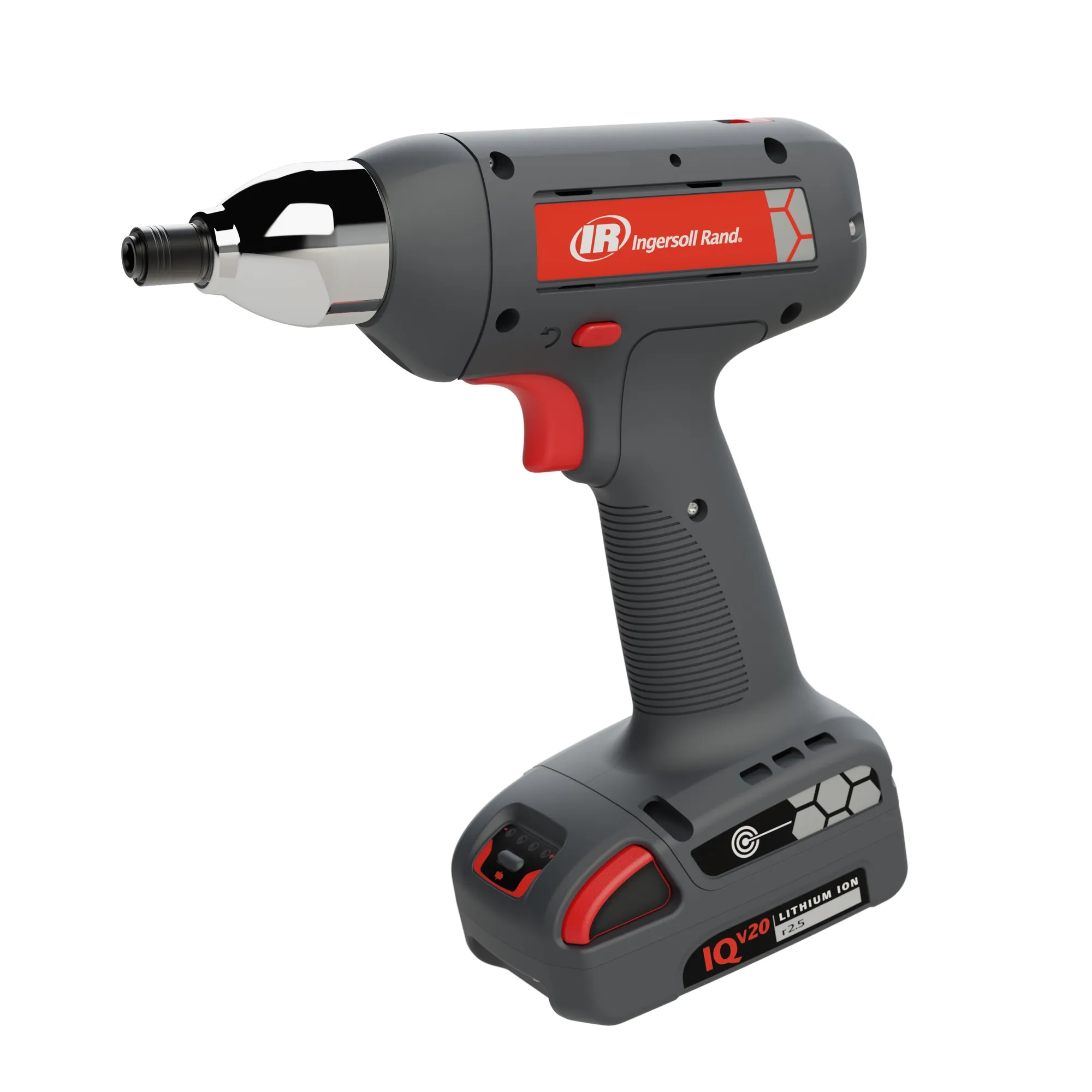

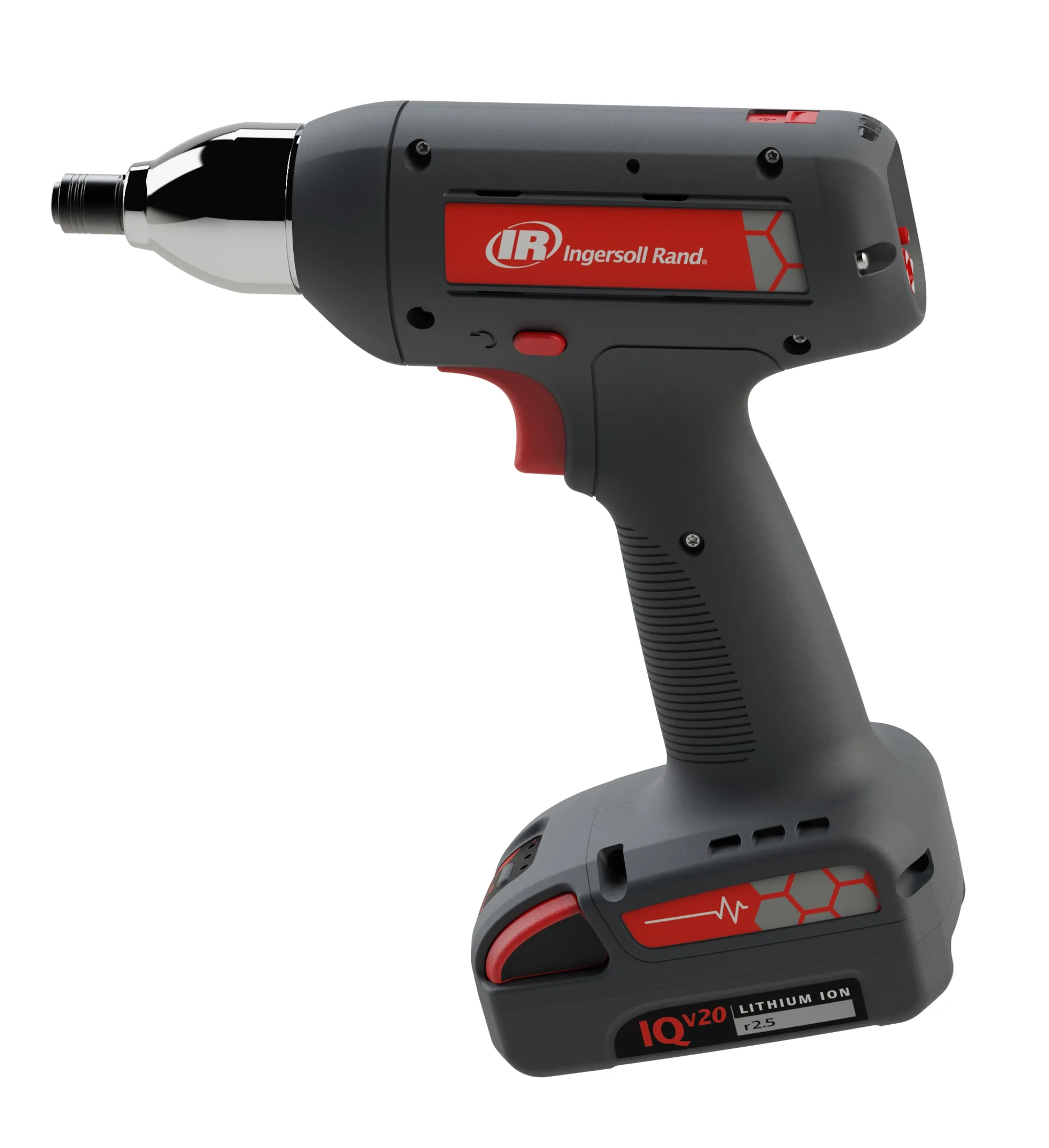

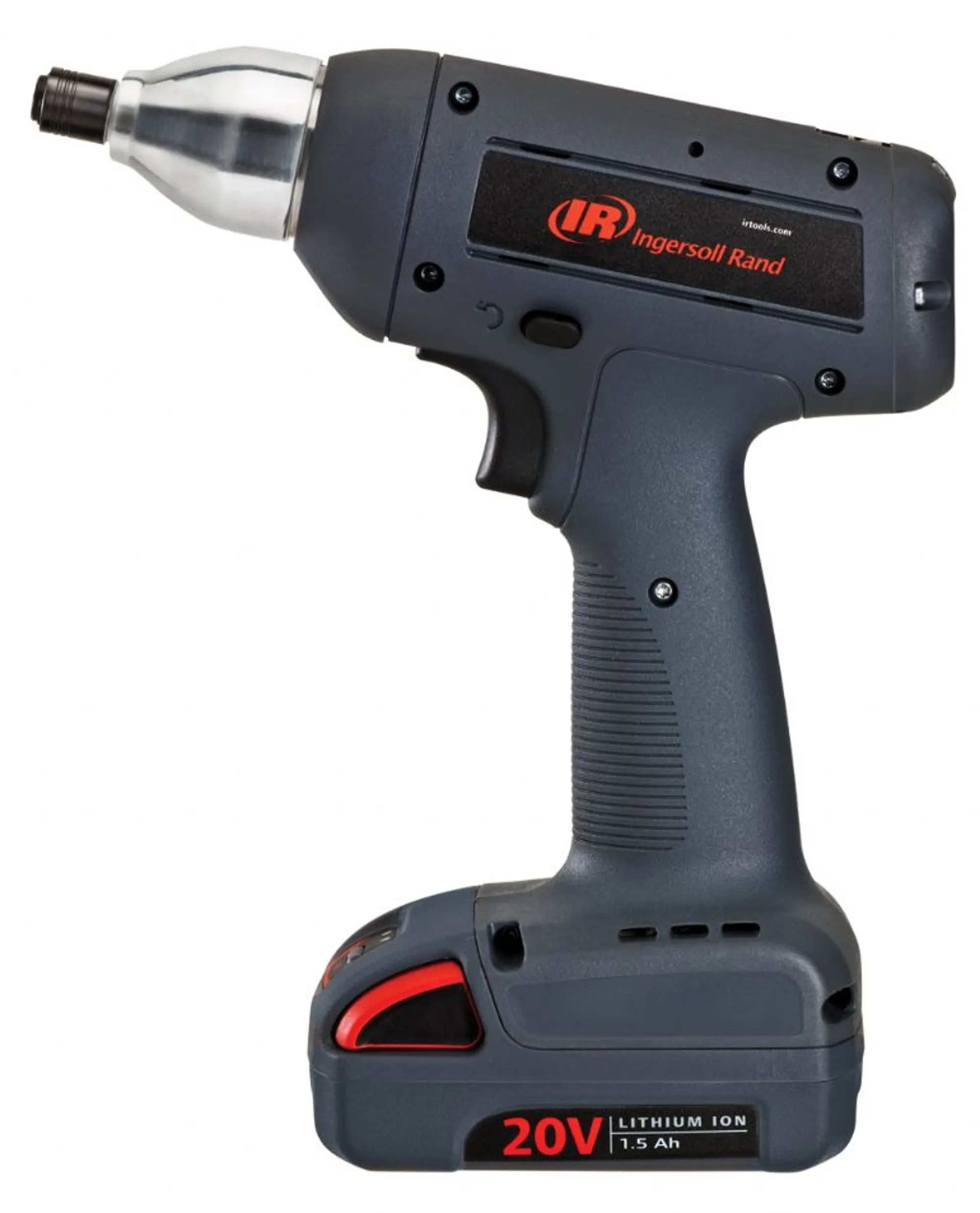

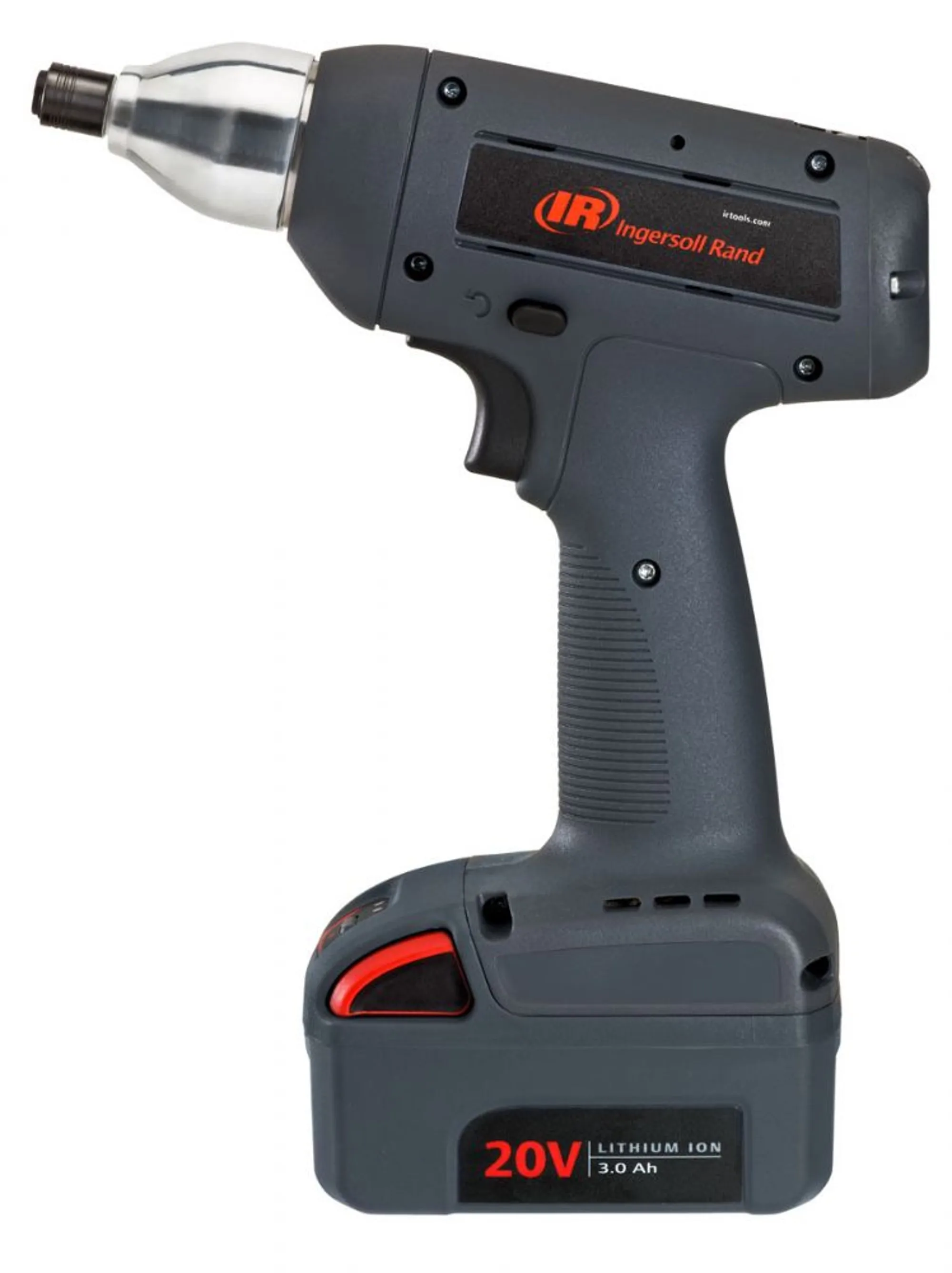

20V 枪式握柄 QXX 充电式精密螺丝刀属于 QX 系列精密紧固系统，提供 QX 系列的全套功能。这款工具提供最多 8 种可编程配置和无线数据传输功能，工具上带有显示屏，能够提高精密紧固和装配操作的准确度和生产率。使用 QX 系列符合人体工程学的拧紧系统，可以轻松减少扭矩反作用力。

使用 INSIGHT Connect 应用程序增加移动性并进一步增强 Ingersoll Rand QX 系列充电式装配工具的简单性和灵活性。

INSIGHT Connect 应用程序

需求服务、备件或支持

通过将数据无线传输至远程服务器，实现无限周期的数据存储
能够与生产线或其他外围设备集成，实现最大控制，防止出错
支持通过 ICS 无线远程访问和分析最多 10 个连接的 QXX 工具
共提供 8 种可编程拧紧配置
通过绿色、红色和黄色指示灯提供直观的定性反馈
存储 1,200 个周期的本机拧紧数据
可使用 ICS 软件通过 USB 编程
可配置预防性维护警报
改进的定量反馈 – 显示实际测量的扭矩或角度结果

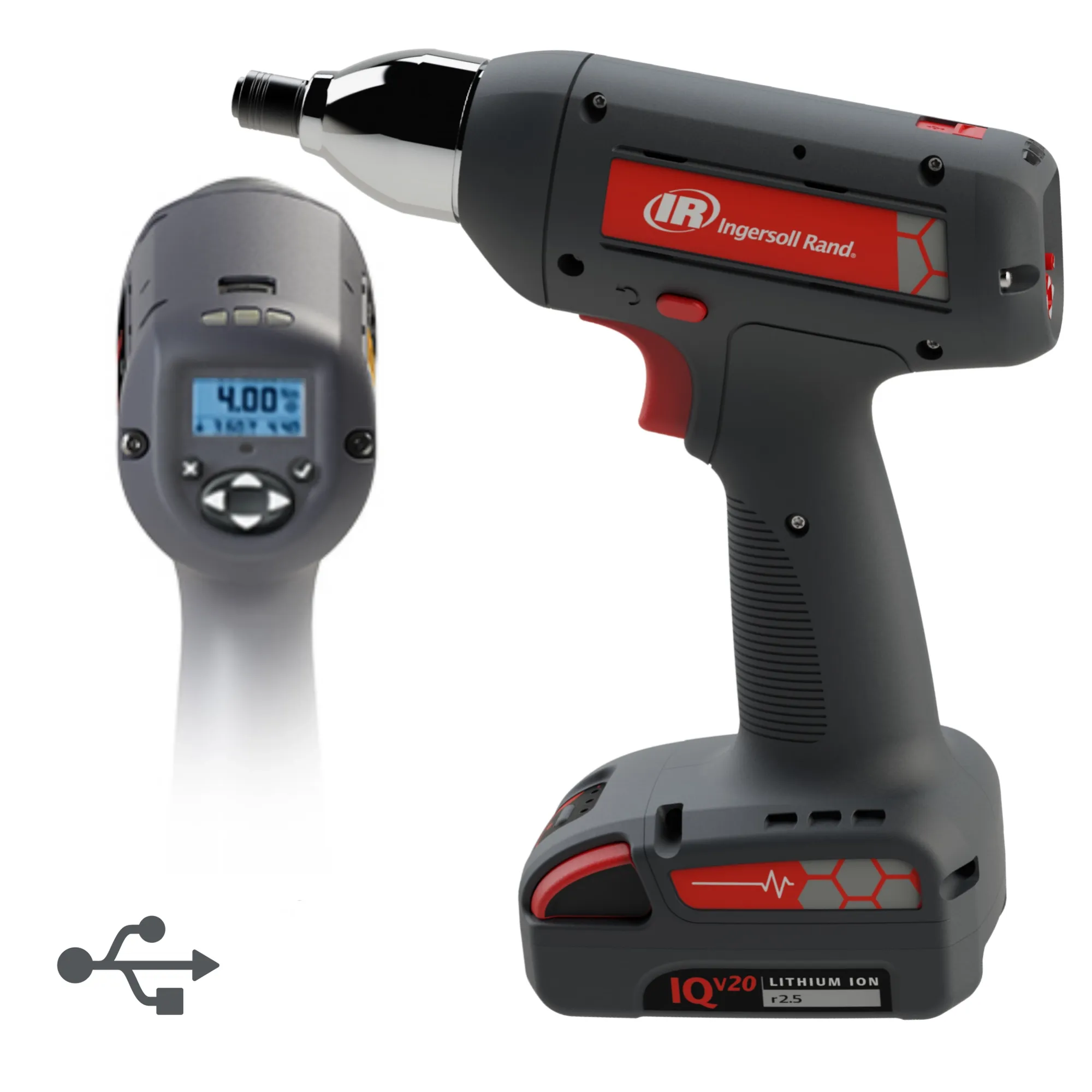

还可通过本机键盘/显示屏进行编程
所有 QX Series™ IQV20 工具都兼容 BL2022 和 BL2012 电池。 BL2022 最适合长时间使用， BL2012 则非常适合狭小空间，可减轻重量。这种 20 伏特电池采用我们的 IQv 锂离子通用充电器 BC1121。

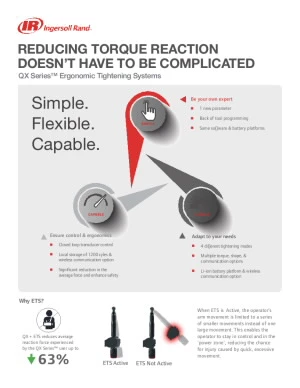

可选配符合人体工程学的拧紧系统，减少操作员感受到的扭矩反作用力。请访问 QX ETS 了解详情。

现在使用 QXX2PT24ES6 型号可实现高达 24 Nm 的最大扭矩输出！

<table>

<thead>

<tr>

<th>Model</th>

<th>Configuration</th>

<th>Torque Range (Nm)</th>

<th>Torque Range (in-lbs)</th>

<th>Free Speed (RPM)</th>

<th>Drive Size/Type</th>

<th>Communication</th>

<th>Battery Type</th>

<th>Weight w/out Battery (kg)</th>

<th>Weight w/out Battery (lbs)</th>

<th>Side to Center (mm)</th>

<th>Side To Center (in)</th>

<th>Length (mm)</th>

<th>Length (in)</th>

<th>Height with slim battery (mm)</th>

<th>Height with slim battery (in)</th>

<th>Height with large battery (mm)</th>

<th>Height with large battery (in)</th>

</tr>

</thead>

<tbody>

<tr>

<td>QXX2PT04PQ4</td>

<td>Pistol</td>

<td>0.8-4</td>

<td>7-35</td>

<td>1500</td>

<td>1/4 in. Quick Change</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>206.5</td>

<td>8.13</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT04PS4</td>

<td>Pistol</td>

<td>0.8-4</td>

<td>7-35</td>

<td>1500</td>

<td>1/4 in. Square</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>199.3</td>

<td>7.85</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT04PS6</td>

<td>Pistol</td>

<td>0.8-4</td>

<td>7-35</td>

<td>1500</td>

<td>3/8 in. Square</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>203</td>

<td>7.99</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT04VQ4</td>

<td>Pistol- Haz Tool</td>

<td>0.8-4</td>

<td>7-35</td>

<td>1500</td>

<td>1/4 in. Quick Change</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>206.5</td>

<td>8.13</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT04VS6</td>

<td>Pistol- Haz Tool</td>

<td>0.8-4</td>

<td>7-35</td>

<td>1500</td>

<td>3/8 in. Square</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>203</td>

<td>7.99</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT08ES6</td>

<td>Pistol-ETS</td>

<td>1.6-8</td>

<td>14-70</td>

<td>1150</td>

<td>3/8 in. Square</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>203</td>

<td>7.99</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT08EQ4</td>

<td>Pistol-ETS</td>

<td>1.6-8</td>

<td>14-70</td>

<td>1150</td>

<td>1/4 in. Quick Change</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>206.5</td>

<td>8.13</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT08PQ4</td>

<td>Pistol</td>

<td>1.6-8</td>

<td>14-70</td>

<td>1150</td>

<td>1/4 in. Quick Change</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>206.5</td>

<td>8.13</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT08PS4</td>

<td>Pistol</td>

<td>1.6-8</td>

<td>14-70</td>

<td>1150</td>

<td>1/4 in. Square</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>199.3</td>

<td>7.85</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT08PS6</td>

<td>Pistol</td>

<td>1.6-8</td>

<td>14-70</td>

<td>1150</td>

<td>3/8 in. Square</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>203</td>

<td>7.99</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT08VQ4</td>

<td>Pistol- Haz Tool</td>

<td>1.6 - 8</td>

<td>14-70</td>

<td>1150</td>

<td>1/4 in. Quick Change</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>206.5</td>

<td>8.13</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT08VS6</td>

<td>Pistol- Haz Tool</td>

<td>1.6 - 8</td>

<td>14-70</td>

<td>1150</td>

<td>3/8 in. Square</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>203</td>

<td>7.99</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT12ES6</td>

<td>Pistol-ETS</td>

<td>2.4-12</td>

<td>21-106</td>

<td>750</td>

<td>3/8 in. Square</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>203</td>

<td>7.99</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT12EQ4</td>

<td>Pistol-ETS</td>

<td>2.4-12</td>

<td>21-106</td>

<td>750</td>

<td>1/4 in. Quick Change</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>206.5</td>

<td>8.13</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT12PQ4</td>

<td>Pistol</td>

<td>2.4-12</td>

<td>21-106</td>

<td>750</td>

<td>1/4 in. Quick Change</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>206.5</td>

<td>8.13</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT12PS4</td>

<td>Pistol</td>

<td>2.4-12</td>

<td>21-106</td>

<td>750</td>

<td>1/4 in. Square</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>199.3</td>

<td>7.85</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT12PS6</td>

<td>Pistol</td>

<td>2.4-12</td>

<td>21-106</td>

<td>750</td>

<td>3/8 in. Square</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>203</td>

<td>7.99</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT12VQ4</td>

<td>Pistol- Haz Tool</td>

<td>2.4 - 12</td>

<td>21-106</td>

<td>750</td>

<td>1/4 in. Quick Change</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>206.5</td>

<td>8.13</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT12VS6</td>

<td>Pistol- Haz Tool</td>

<td>2.4 - 12</td>

<td>21-106</td>

<td>750</td>

<td>3/8 in. Square</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>203</td>

<td>7.99</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT18ES6&nbsp;</td>

<td>Pistol-ETS</td>

<td>3.6-18</td>

<td>32-159</td>

<td>500</td>

<td>3/8 in. Square</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>203</td>

<td>7.99</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT18EQ4</td>

<td>Pistol-ETS</td>

<td>3.6-18</td>

<td>32-159</td>

<td>500</td>

<td>1/4 in. Quick Change</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>206.5</td>

<td>8.13</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT18PQ4</td>

<td>Pistol</td>

<td>3.6-18</td>

<td>32-159</td>

<td>500</td>

<td>1/4 in. Quick Change</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>206.5</td>

<td>8.13</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT18PS6</td>

<td>Pistol</td>

<td>3.6-18</td>

<td>32-159</td>

<td>500</td>

<td>3/8 in. Square</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>203</td>

<td>7.99</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

<tr>

<td>QXX2PT24ES6</td>

<td>Pistol – ETS</td>

<td>4.8 – 24</td>

<td>42 - 212</td>

<td>500</td>

<td>3/8” Square</td>

<td>Wireless Enabled + USB</td>

<td>20V Li-Ion</td>

<td>0.91</td>

<td>2</td>

<td>26</td>

<td>1</td>

<td>203</td>

<td>7.99</td>

<td>237</td>

<td>9.33</td>

<td>255.7</td>

<td>10.07</td>

</tr>

</tbody>

</table>
