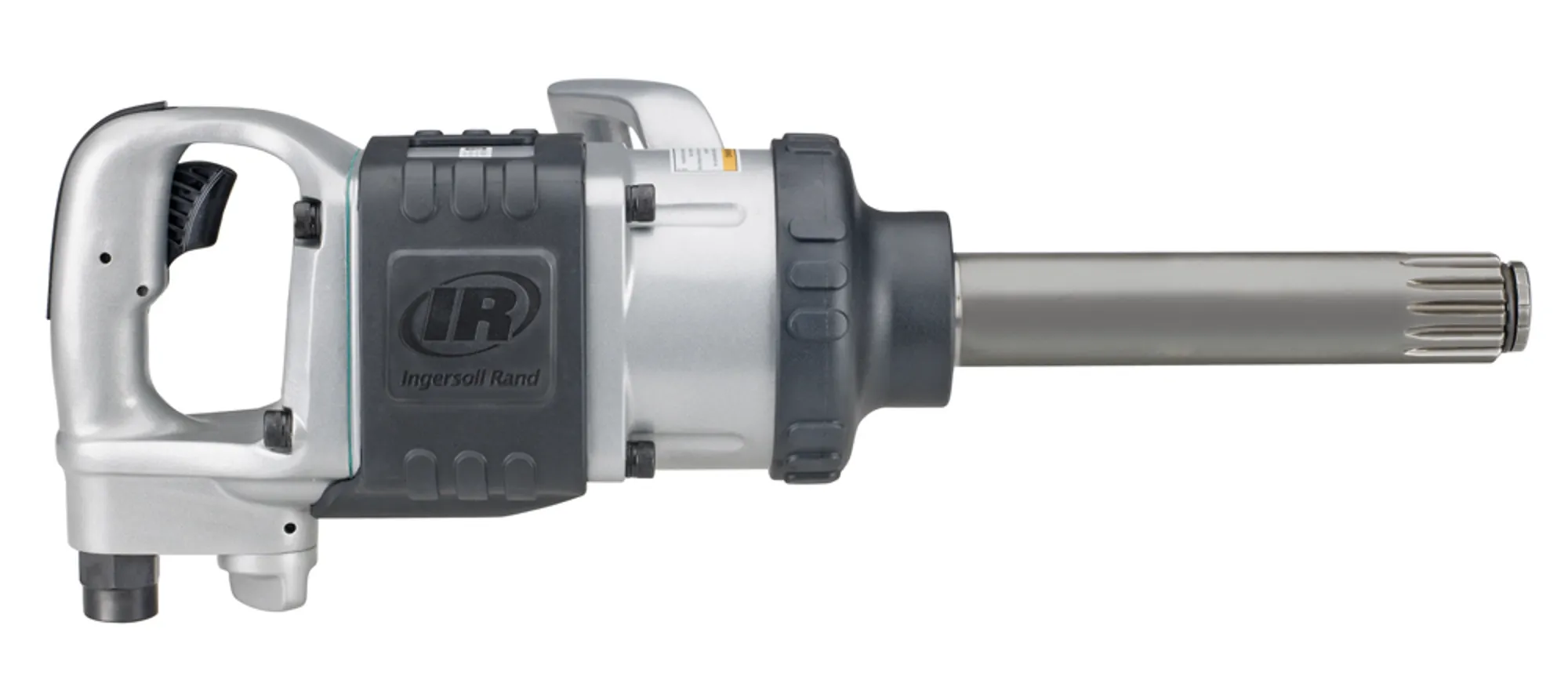

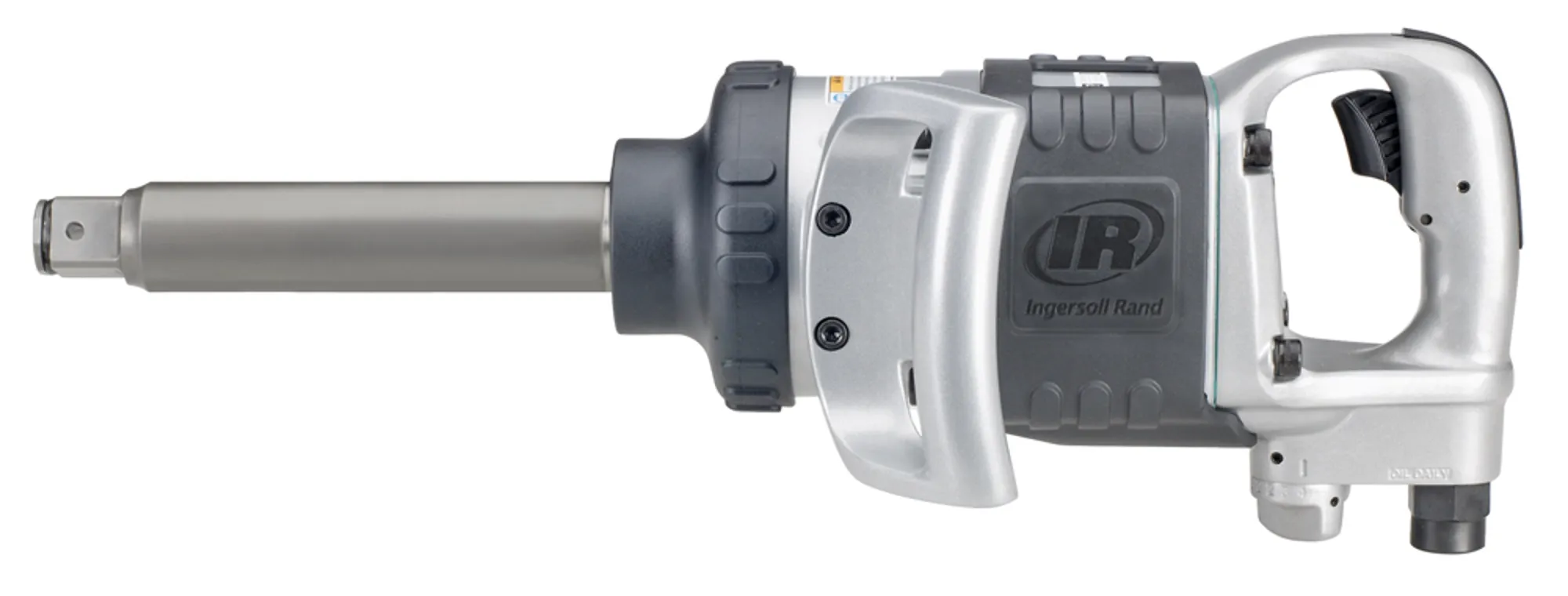

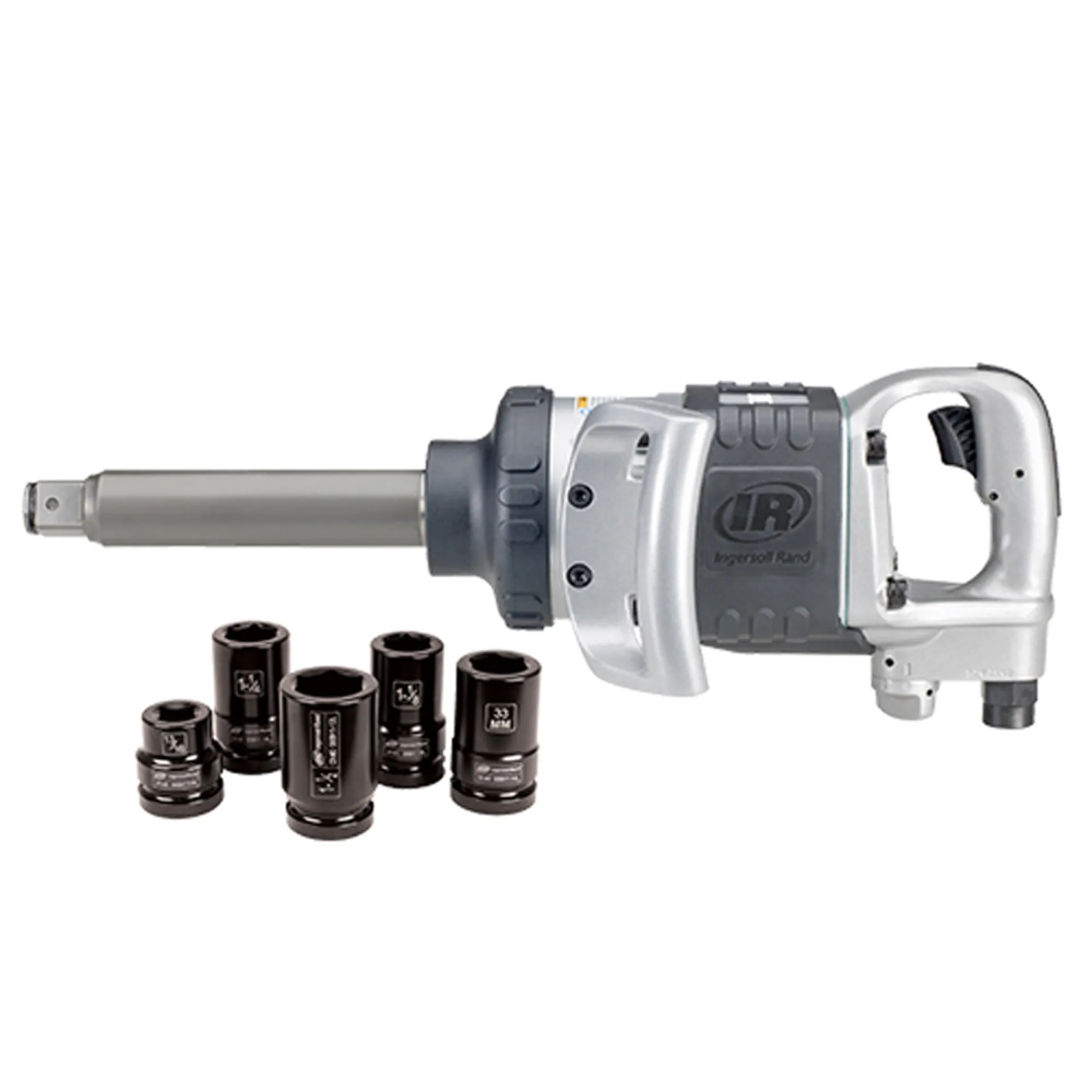

285B 系列冲击扳手

可靠性高

这款扳手采用钢锤套和金属外壳，不惧反复掉落和恶劣气候条件。

可达性好

285B 系列冲击扳手采用多种固定方式，让您能够伸入难以够及的空间，同时还可与套筒保持坚固连接。

动力强劲

这款工具采用摇摆机构，惯性大、BPM 低，只需少量空气即可输出强劲动力，为您提供理想的动力，让您毫不费力。

• 采用专业设计，扭矩超过 1475 ft-lbs，适合最苛刻的应用
• 采用新型树脂叶片，可耐受恶劣环境，减少工作中的停机时间
• 这款气动冲击扳手的所有型号均提供橡胶工具保护套
• 采用耐用设计，可应对苛刻作业
• 这款气动冲击扳手采用轻触式扳机，操控性极佳

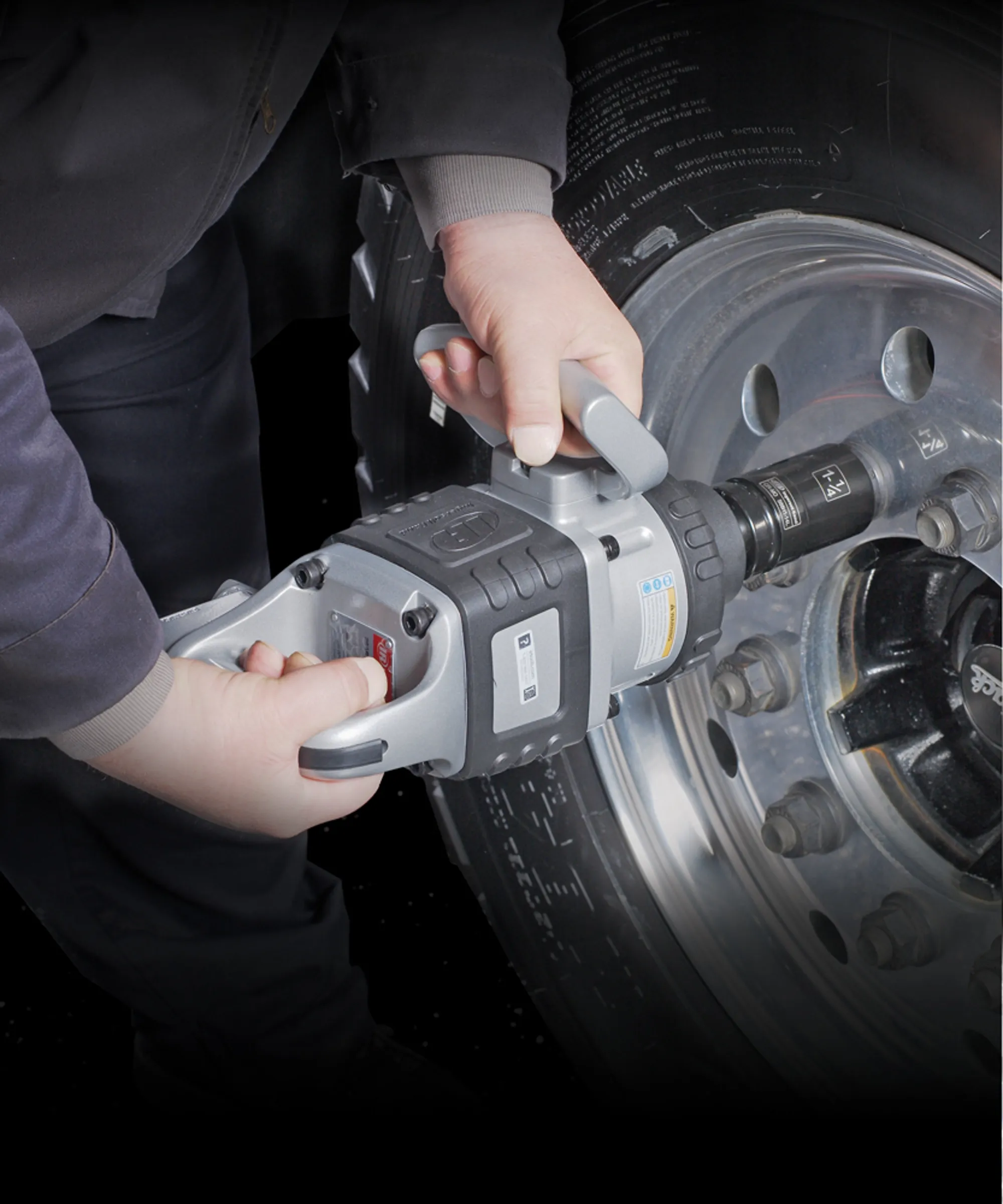

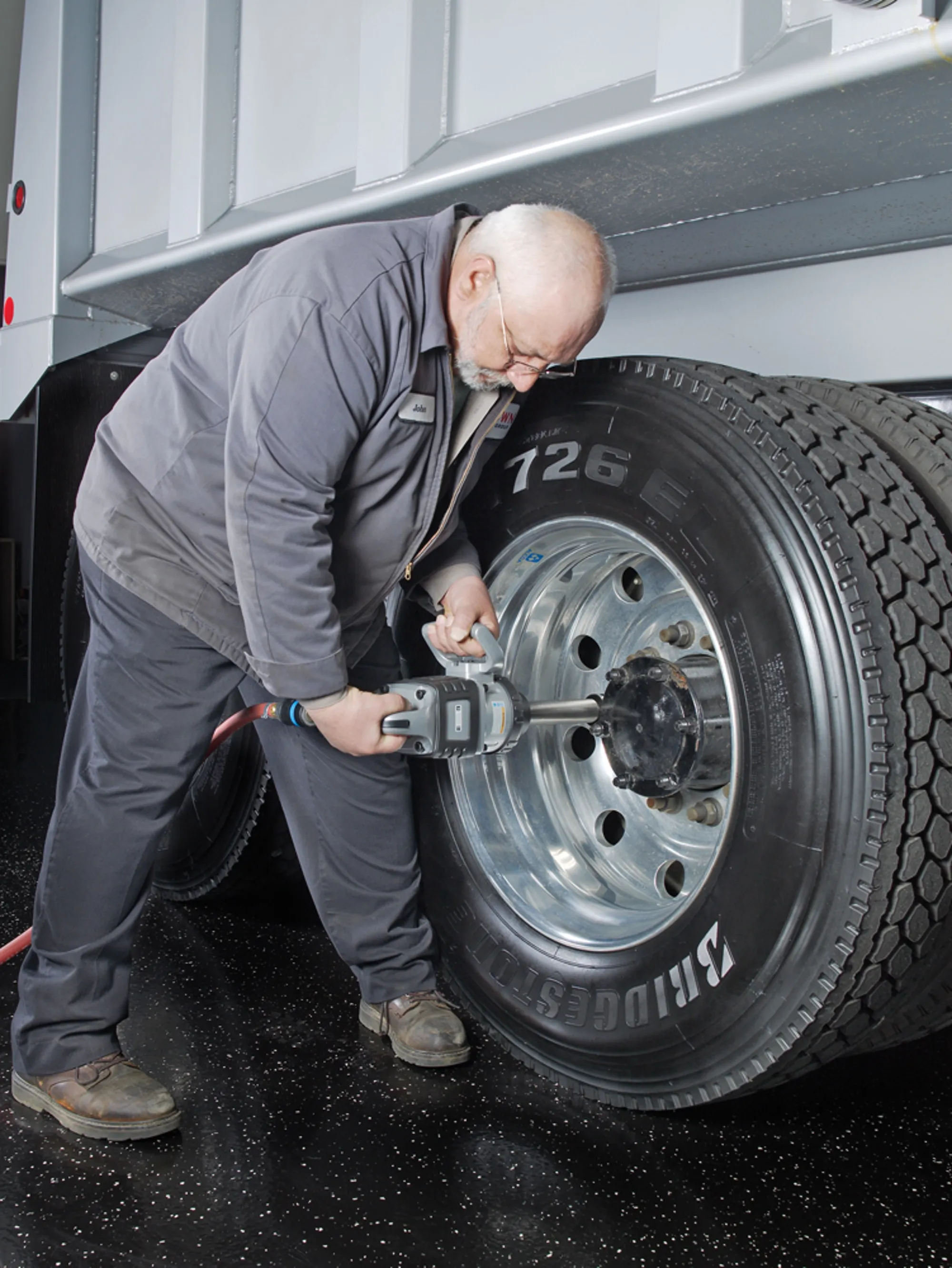

• 经过优化，适合车辆维修行业、重型卡车、轮胎安装和 MRO
• 1 年保修

<table>

<thead>

<tr>

<th>Model</th>

<th>Configuration</th>

<th>Actuation</th>

<th>Drive Size</th>

<th>Drive Type</th>

<th>Forward Torque (ft-lbs)</th>

<th>Forward Torque (Nm)</th>

<th>Max Reverse Torque (ft-lbs)</th>

<th>Max Reverse Torque (Nm)</th>

<th>Blows per minute</th>

<th>Free Speed (RPM)</th>

<th>Impacting Sound Level dB(A) -- ISO15744 (pressure/power)</th>

<th>Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power)</th>

<th>Vibration Level m/s2 (K)</th>

<th>Weight (lbs)</th>

<th>Weight (kg)</th>

<th>Width (in)</th>

<th>Width (mm)</th>

<th>Height (in)</th>

<th>Height (mm)</th>

<th>Length (in)</th>

<th>Length (mm)</th>

<th>Air Inlet</th>

<th>Min Hose Size (in)</th>

<th>Min Hose Size (mm)</th>

<th>Air Consumption @ Load (cfm)</th>

<th>Air Consumption @ Load (L/min)</th>

<th>Average Air Consumption (cfm)</th>

<th>Average Air Consumption (L/min)</th>

<th>PSI</th>

<th>Bar</th>

</tr>

</thead>

<tbody>

<tr>

<td>285B</td>

<td>D-Handle</td>

<td>Inside Trigger</td>

<td>1 in.</td>

<td>Square, Hog-Ring and Thru-Hole</td>

<td>1475</td>

<td>2000</td>

<td>1475</td>

<td>2000</td>

<td>700</td>

<td>5250</td>

<td>98.8 / 109.8</td>

<td>103.4 / 114.4</td>

<td>8 (1.2)</td>

<td>24.6</td>

<td>11.16</td>

<td>8.1</td>

<td>206</td>

<td>7.2</td>

<td>182</td>

<td>14.2</td>

<td>361</td>

<td>1/2 in.</td>

<td>3/4</td>

<td>19</td>

<td>46</td>

<td>1303</td>

<td>11</td>

<td>312</td>

<td>90</td>

<td>6.2</td>

</tr>

<tr>

<td>285B-6</td>

<td>D-Handle</td>

<td>Inside Trigger</td>

<td>1 in.</td>

<td>Square, Hog-Ring and Thru-Hole, 6 in. Ext</td>

<td>1475</td>

<td>2000</td>

<td>1475</td>

<td>2000</td>

<td>700</td>

<td>5250</td>

<td>98.8 / 109.8</td>

<td>103.4 / 114.4</td>

<td>9 (2.7)</td>

<td>27.8</td>

<td>12.61</td>

<td>8.1</td>

<td>206</td>

<td>7.2</td>

<td>182</td>

<td>20.4</td>

<td>519</td>

<td>1/2 in.</td>

<td>3/4</td>

<td>19</td>

<td>46</td>

<td>1303</td>

<td>11</td>

<td>312</td>

<td>90</td>

<td>6.2</td>

</tr>

<tr>

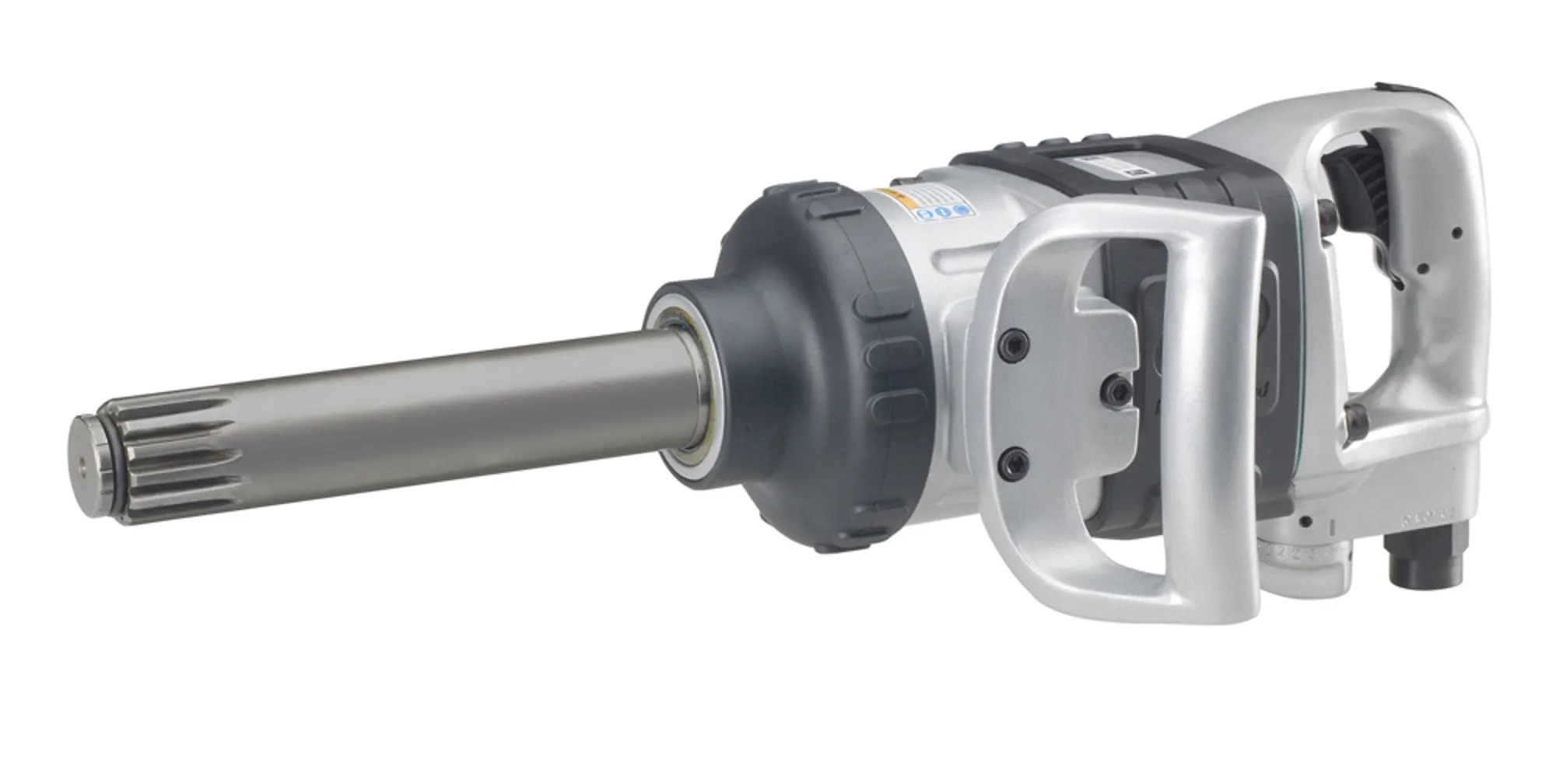

<td>285B-S6</td>

<td>D-Handle</td>

<td>Inside Trigger</td>

<td>No. 5</td>

<td>Spline, Hog Ring, 6 in. Ext</td>

<td>1475</td>

<td>2000</td>

<td>1475</td>

<td>2000</td>

<td>700</td>

<td>5250</td>

<td>98.8 / 109.8</td>

<td>103.4 / 114.4</td>

<td>9 (2.7)</td>

<td>27.8</td>

<td>12.61</td>

<td>8.1</td>

<td>206</td>

<td>7.2</td>

<td>182</td>

<td>20.4</td>

<td>519</td>

<td>1/2 in.</td>

<td>3/4</td>

<td>19</td>

<td>46</td>

<td>1303</td>

<td>11</td>

<td>312</td>

<td>90</td>

<td>6.2</td>

</tr>

</tbody>

</table>
