耐用性好
48 系列能够抵御恶劣的环境，充当您坚实的后盾。您无需为此马达担心。
保养简便
得益于简便的保养，您能够将大部分时间用在手头的工作而不是修复工具上。

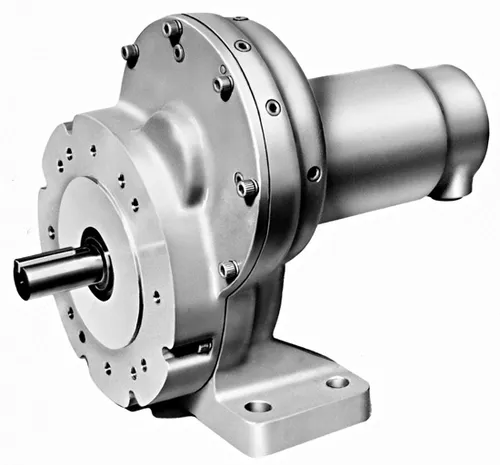

48 系列气动马达
Model | Max. Power (hp) | Max. Power (kW) | Reversible | Torque Stall (ft-lb) | Torque Stall (Nm) | Free Speed (rpm) | Torque Output @ Max. H.P. (ft-lb) | Torque Output @ Max. H.P. (Nm) | Speed at Max. Power (rpm) | Starting Torque (ft-lb) | Starting Torque (Nm) | Air Consumption at Max. Power (scfm) | Air Consumption at Max. Power (m³/min) | Weight (lb) | Weight (kg) | Length (in) | Length (mm) | Diameter/Width (in) | Diameter/Width (mm) | In Line Motor |
48RA005 | 3.1 | 2.31 | Yes | 35 | 47.5 | 1690 | 17.5 | 23.73 | 845 | 26 | 35.3 | 95 | 2.69 | 44 | 20 | 15.88 | 403.2 | 10.5 | 266.7 | No |
48RA008 | 3.1 | 2.31 | Yes | 51.5 | 69.8 | 1160 | 25.75 | 34.91 | 580 | 38 | 51.5 | 95 | 2.69 | 44 | 20 | 15.88 | 403.2 | 10.5 | 266.7 | No |
48RA011 | 3.1 | 2.31 | Yes | 77.5 | 105 | 772 | 38.75 | 52.54 | 386 | 57 | 77.3 | 95 | 2.69 | 44 | 20 | 15.88 | 403.2 | 10.5 | 266.7 | No |
48RA014 | 3.1 | 2.31 | Yes | 98 | 133 | 612 | 49 | 66.44 | 306 | 72 | 97.6 | 95 | 2.69 | 44 | 20 | 15.88 | 403.2 | 10.5 | 266.7 | No |
48RA017 | 3.1 | 2.31 | Yes | 117 | 159 | 511 | 58.5 | 79.32 | 255.5 | 86 | 117 | 95 | 2.69 | 44 | 20 | 15.88 | 403.2 | 10.5 | 266.7 | No |
48RA022 | 3.1 | 2.31 | Yes | 154 | 209 | 390 | 77 | 104.4 | 195 | 113 | 153 | 95 | 2.69 | 44 | 20 | 15.88 | 403.2 | 10.5 | 266.7 | No |
48RB029 | 3 | 2.24 | Yes | 189 | 256 | 292 | 94.5 | 128.12 | 146 | 135 | 183 | 90 | 2.55 | 75 | 34 | 15.88 | 403.2 | 10.5 | 266.7 | No |
48RB036 | 3 | 2.24 | Yes | 234 | 317 | 236 | 117 | 158.63 | 118 | 167 | 227 | 90 | 2.55 | 75 | 34 | 15.88 | 403.2 | 10.5 | 266.7 | No |
48RB045 | 3 | 2.24 | Yes | 295 | 400 | 188 | 147.5 | 199.98 | 94 | 209 | 283 | 90 | 2.55 | 75 | 34 | 15.88 | 403.2 | 10.5 | 266.7 | No |
48RB078 | 3 | 2.24 | Yes | 513 | 696 | 108 | 256.5 | 347.77 | 54 | 364 | 494 | 90 | 2.55 | 75 | 34 | 15.88 | 403.2 | 10.5 | 266.7 | No |
