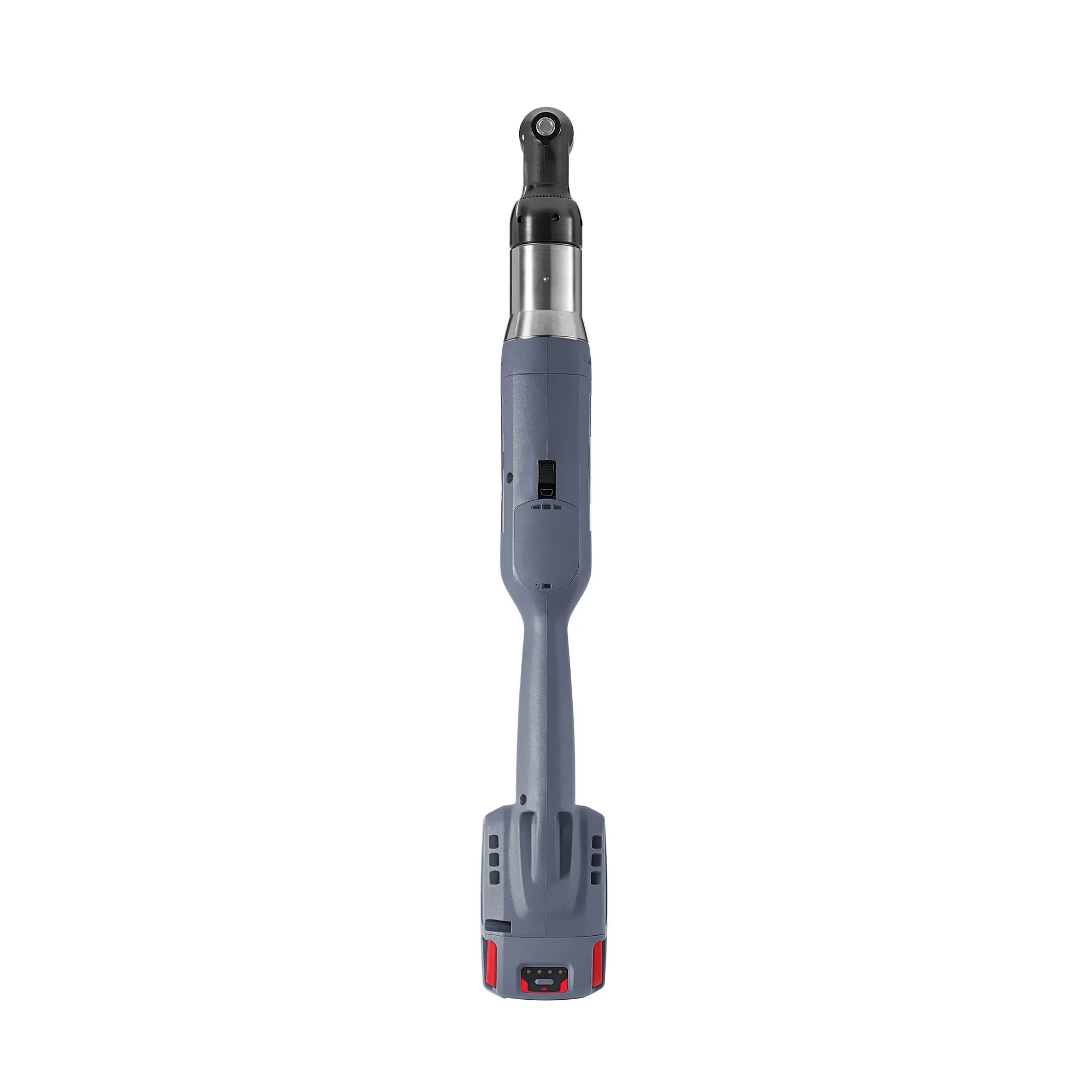

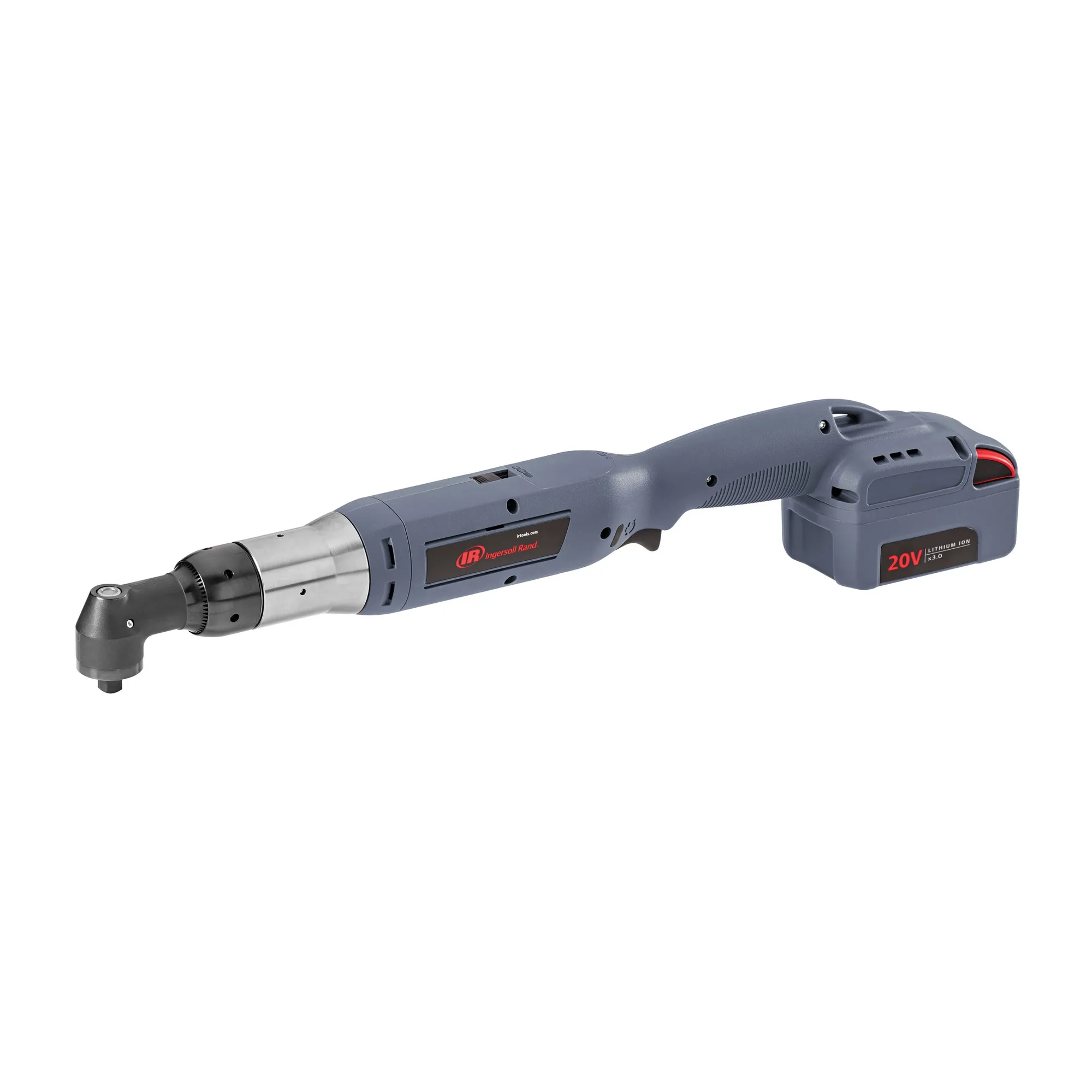

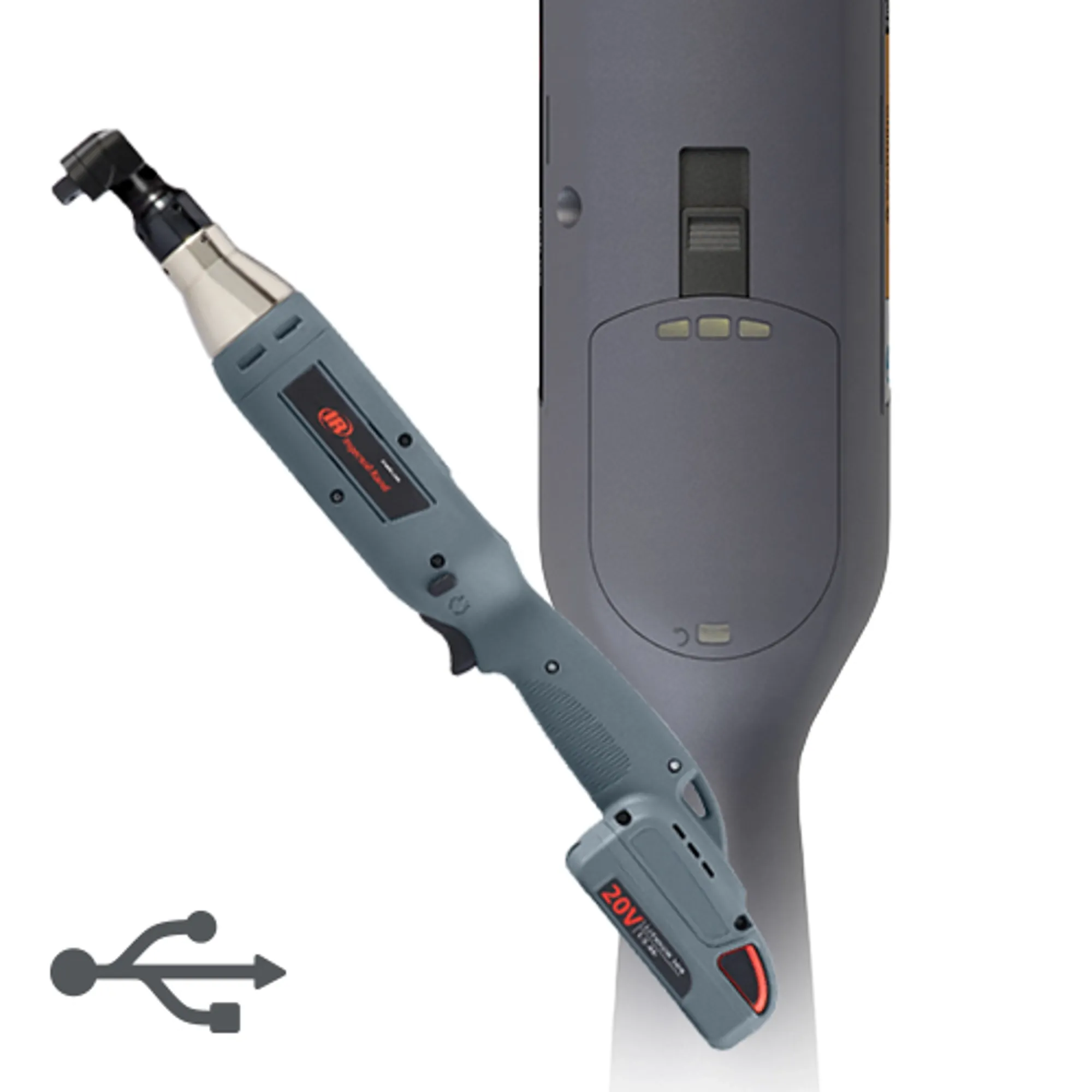

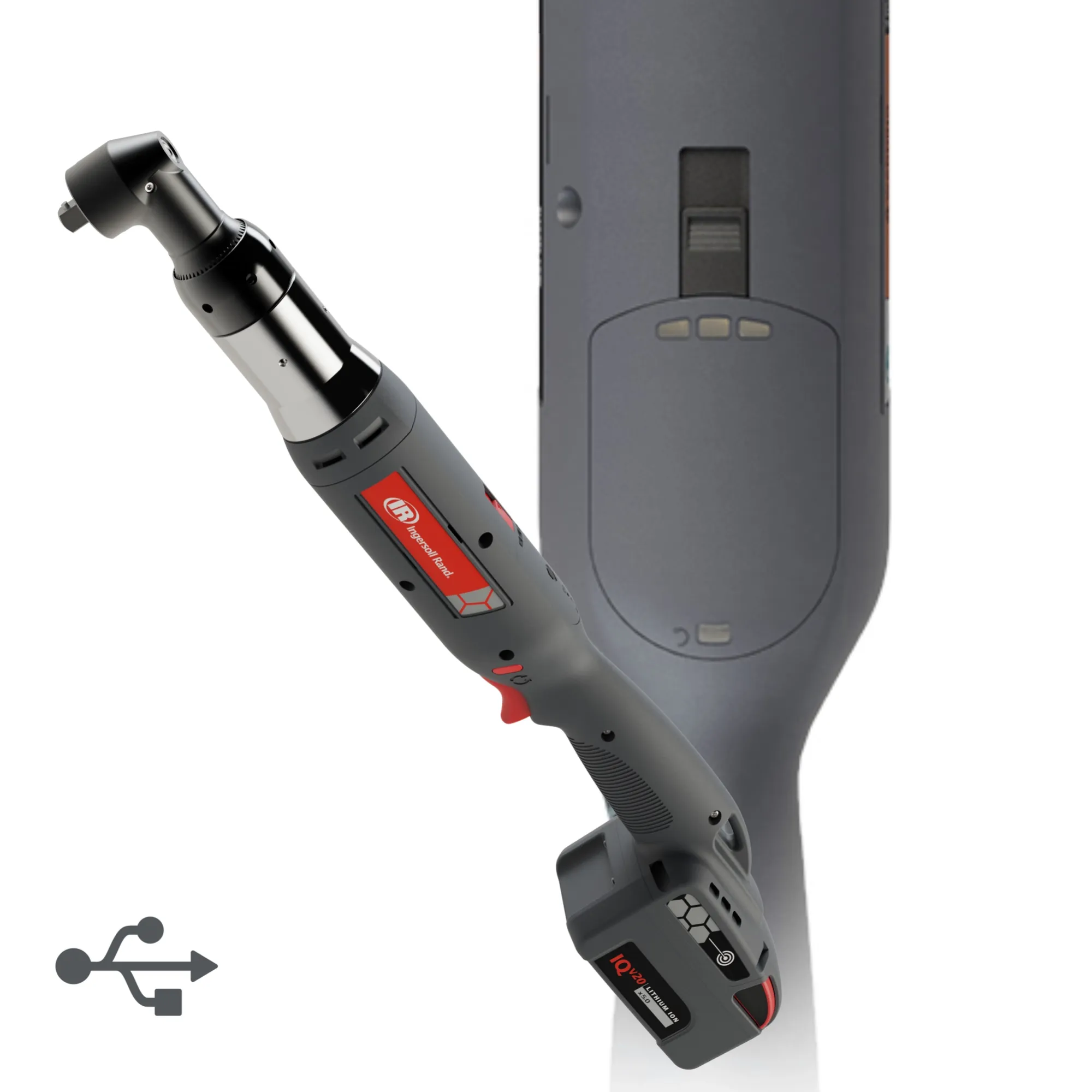

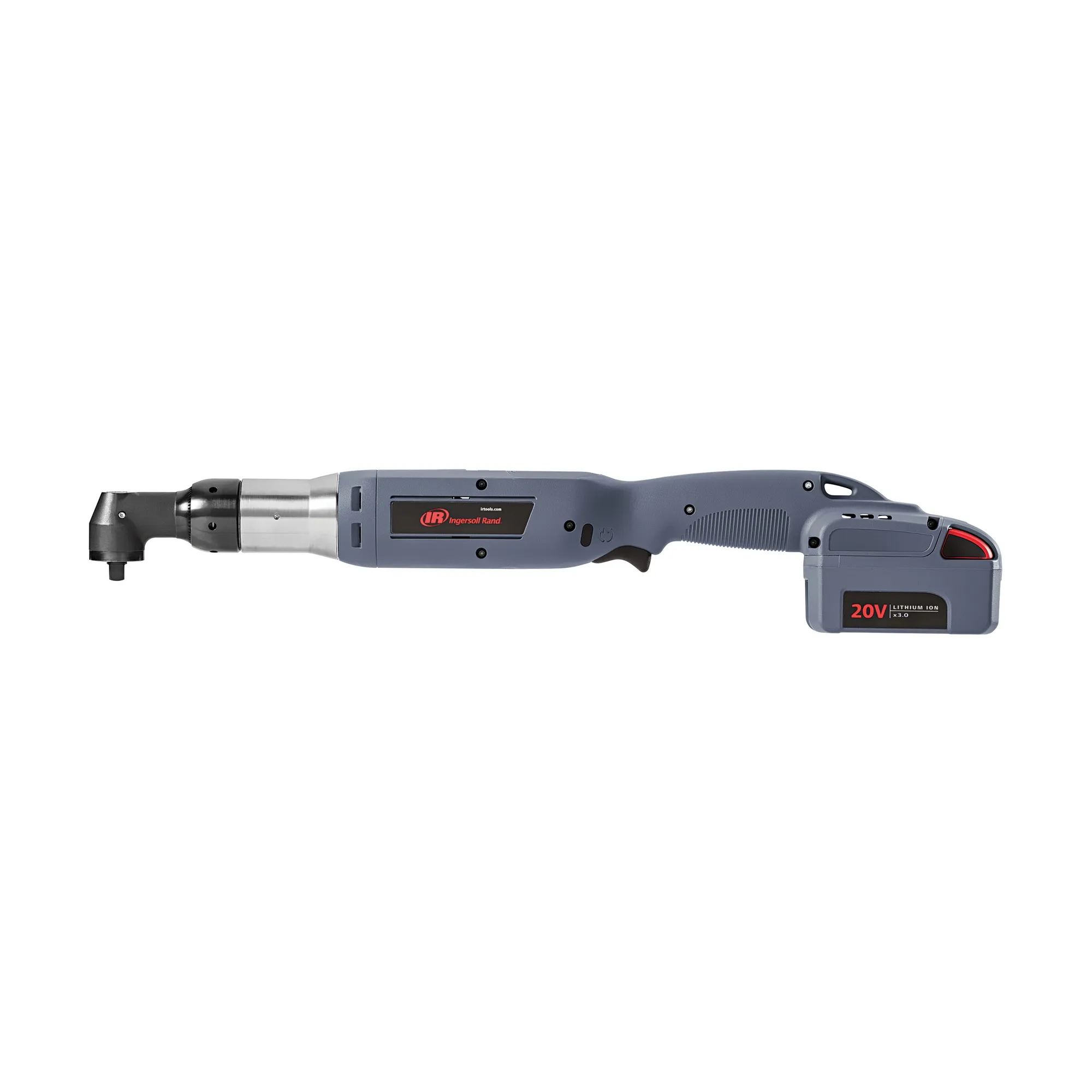

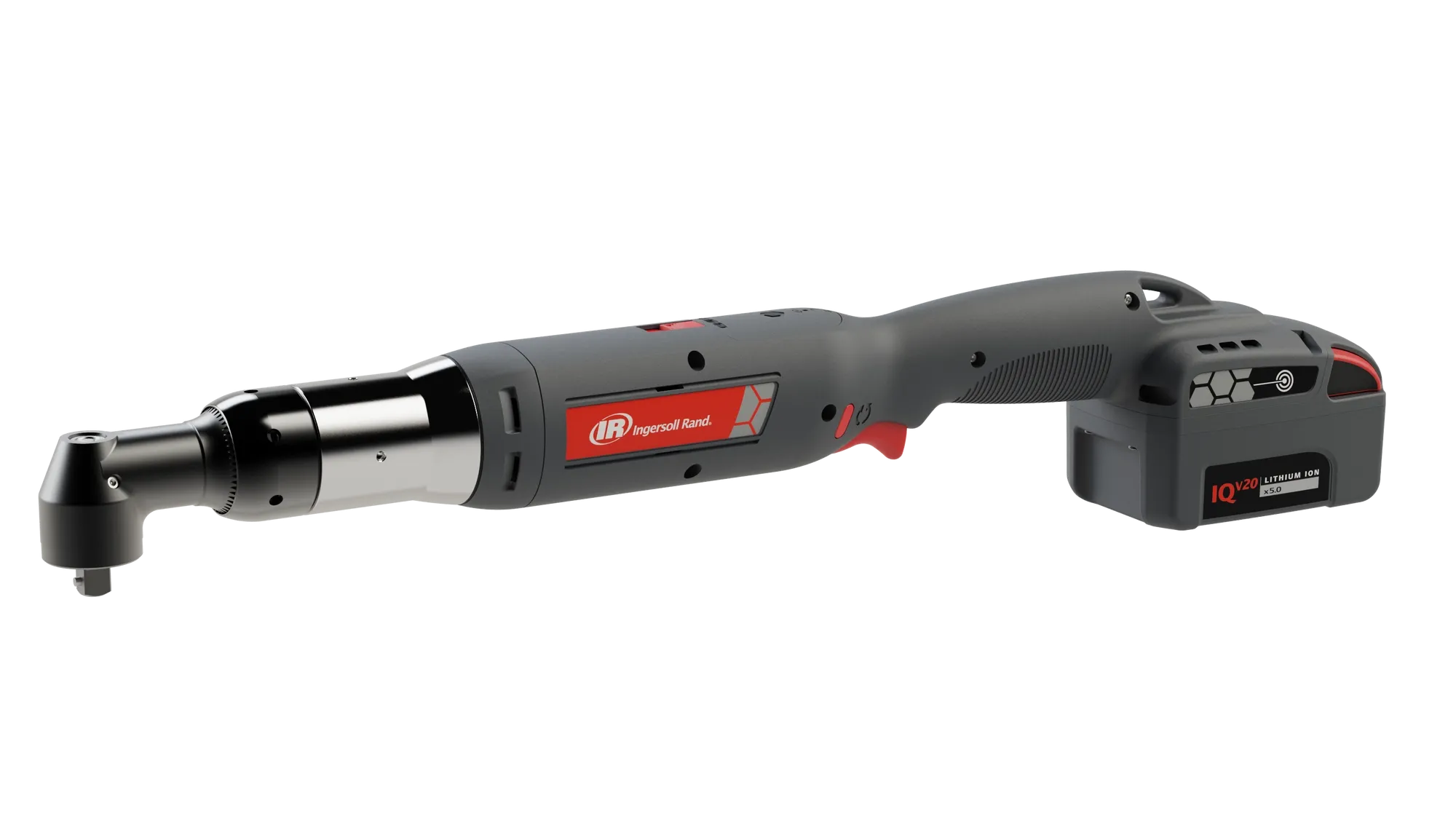

QXN 充电式弯头扳手

PTL-En-Product-Photo-qxfn-angle-wrench

PTL-En-Product-Photo-qxfn-angle-wrench-V2

PTL-En-Product-Photo-qxfn-angle-wrench-V23

PTL-En-Product-Photo-qxfn-angle-wrench-V4

PTL-En-Product-Photo-qxfn-angle-wrench-V5

PTL-En-Product-Photo-qxfn-angle-wrench-V6

PTL-En-Product-Photo-qxfn-angle-wrench-V7

PTL-En-Product-Photo-qxfn-angle-wrench-V8

PTL-En-Product-Photo-qxfn-angle-wrench-V9

PTL-En-Product-Photo-qxfn-angle-wrench

PTL-En-Product-Photo-qxfn-angle-wrench-V2

PTL-En-Product-Photo-qxfn-angle-wrench-V23

PTL-En-Product-Photo-qxfn-angle-wrench-V4

PTL-En-Product-Photo-qxfn-angle-wrench-V5

PTL-En-Product-Photo-qxfn-angle-wrench-V6

PTL-En-Product-Photo-qxfn-angle-wrench-V7

PTL-En-Product-Photo-qxfn-angle-wrench-V8

PTL-En-Product-Photo-qxfn-angle-wrench-V9

这种 20V 弯头 QXN 精密螺丝刀设计用于替代传统离合器工具，可满足 QX 系列工具的精确性和质量，同时性价比高，设置简单。使用 QX 系列符合人体工程学的拧紧系统，可以轻松减少扭矩反作用力。

使用 INSIGHT Connect 应用程序增加移动性并进一步增强 Ingersoll Rand QX 系列充电式装配工具的简单性和灵活性。

INSIGHT Connect 应用程序

需求服务、备件或支持

提供 1 种可编程拧紧配置
通过绿色、红色和黄色指示灯提供直观的定性反馈
存储 1,200 个周期的本机拧紧数据
可使用 ICS 软件通过 USB 编程
可配置预防性维护警报
所有 QX Series™ IQV20 工具都兼容 BL2022 和 BL2012 电池。 BL2022 最适合长时间使用， BL2012 则非常适合狭小空间，可减轻重量。这种 20 伏特电池采用我们的 IQv 锂离子通用充电器 BC1121。

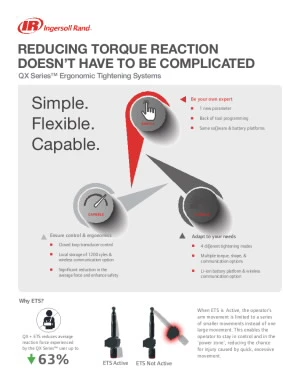

可选配符合人体工程学的拧紧系统，减少操作员感受到的扭矩反作用力。请访问 QX ETS 了解详情。

<table>

<thead>

<tr>

<th>Model</th>

<th>Configuration</th>

<th>Torque Range (Nm)</th>

<th>Torque Range (in-lbs)</th>

<th>Free Speed (RPM)</th>

<th>Drive Size/Type</th>

<th>Communication</th>

<th>Battery Type</th>

<th>Weight w/out Battery (kg)</th>

<th>Weight w/out Battery (lbs)</th>

<th>Side to Center (mm)</th>

<th>Side To Center (in)</th>

<th>Length (mm)</th>

<th>Length (in)</th>

<th>Height with slim battery (mm)</th>

<th>Height with slim battery (in)</th>

<th>Height with large battery (mm)</th>

<th>Height with large battery (in)</th>

</tr>

</thead>

<tbody>

<tr>

<td>QXN2AT05PQ4</td>

<td>Right Angle</td>

<td>1.0-5</td>

<td>9-44</td>

<td>1213</td>

<td>1/4 in. Quick Change</td>

<td>USB Only</td>

<td>20V Li-ion</td>

<td>1.14</td>

<td>2.5</td>

<td>9.2</td>

<td>0.36</td>

<td>550.2</td>

<td>21.67</td>

<td>80.6</td>

<td>3.17</td>

<td>100</td>

<td>3.94</td>

</tr>

<tr>

<td>QXN2AT10PS6</td>

<td>Right Angle</td>

<td>2.0-10</td>

<td>18-89</td>

<td>936</td>

<td>3/8 in. Square</td>

<td>USB Only</td>

<td>20V Li-ion</td>

<td>1.18</td>

<td>2.6</td>

<td>12.5</td>

<td>0.49</td>

<td>525</td>

<td>20.67</td>

<td>80.6</td>

<td>3.17</td>

<td>100</td>

<td>3.94</td>

</tr>

<tr>

<td>QXN2AT15PS6</td>

<td>Right Angle</td>

<td>3.0-15</td>

<td>27-133</td>

<td>600</td>

<td>3/8 in. Square</td>

<td>USB Only</td>

<td>20V Li-ion</td>

<td>1.18</td>

<td>2.6</td>

<td>12.5</td>

<td>0.49</td>

<td>525</td>

<td>20.67</td>

<td>80.6</td>

<td>3.17</td>

<td>100</td>

<td>3.94</td>

</tr>

<tr>

<td>QXN2AT18PQ4</td>

<td>Right Angle</td>

<td>3.6-18</td>

<td>32-159</td>

<td>500</td>

<td>1/4 in. Quick Change</td>

<td>USB Only</td>

<td>20V Li-ion</td>

<td>1.27</td>

<td>2.8</td>

<td>13.3</td>

<td>0.52</td>

<td>542</td>

<td>21.34</td>

<td>80.6</td>

<td>3.17</td>

<td>100</td>

<td>3.94</td>

</tr>

<tr>

<td>QXN2AT18PS6</td>

<td>Right Angle</td>

<td>3.6-18</td>

<td>32-159</td>

<td>500</td>

<td>3/8 in. Square</td>

<td>USB Only</td>

<td>20V Li-ion</td>

<td>1.27</td>

<td>2.8</td>

<td>13.3</td>

<td>0.52</td>

<td>542</td>

<td>21.34</td>

<td>80.6</td>

<td>3.17</td>

<td>100</td>

<td>3.94</td>

</tr>

<tr>

<td>QXN2AT27ES6</td>

<td>Right Angle-ETS</td>

<td>5.4-27</td>

<td>48-239</td>

<td>330</td>

<td>3/8 in. Square</td>

<td>USB Only</td>

<td>20V Li-ion</td>

<td>1.68</td>

<td>3.7</td>

<td>17.2</td>

<td>0.67</td>

<td>552</td>

<td>21.73</td>

<td>80.6</td>

<td>3.17</td>

<td>100</td>

<td>3.94</td>

</tr>

<tr>

<td>QXN2AT27PS6</td>

<td>Right Angle</td>

<td>5.4-27</td>

<td>48-239</td>

<td>330</td>

<td>3/8 in. Square</td>

<td>USB Only</td>

<td>20V Li-ion</td>

<td>1.68</td>

<td>3.7</td>

<td>17.2</td>

<td>0.67</td>

<td>552</td>

<td>21.73</td>

<td>80.6</td>

<td>3.17</td>

<td>100</td>

<td>3.94</td>

</tr>

</tbody>

</table>
