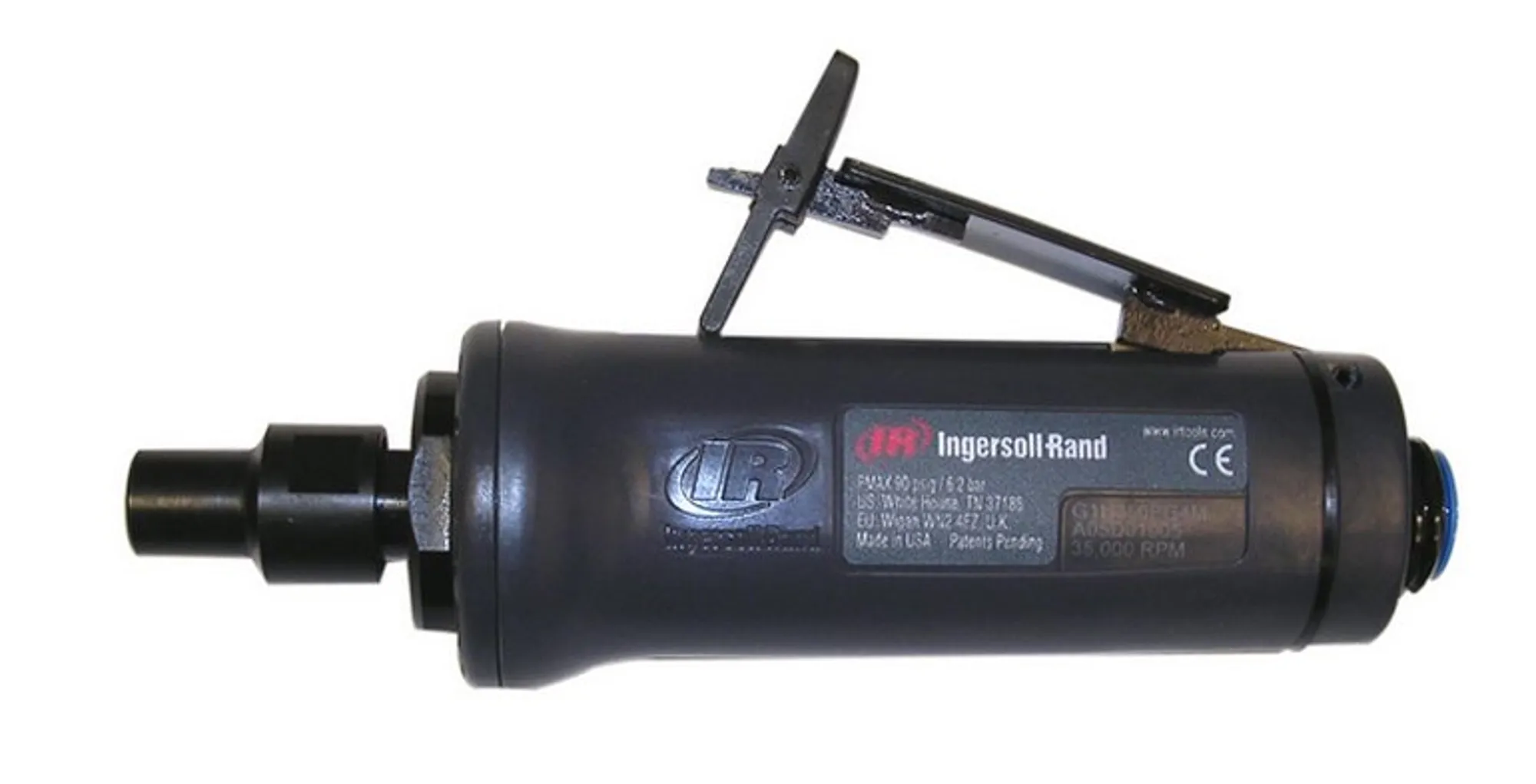

G1 系列修磨机

PTL-En-Product-Photo-g1-die

PTL-En-Product-Photo-g1-die-V2

PTL-En-Product-Photo-g1-die-V3

PTL-En-Product-Photo-g1-die

PTL-En-Product-Photo-g1-die-V2

PTL-En-Product-Photo-g1-die-V3

G1 系列修磨机采用叶片马达和轻盈的复合材料外壳，能够抵御恶劣的温度变化条件。这种强劲的工具与管道输出式排气套件兼容，因此可在前、后和双排气管选项之间切换。

需求服务、备件或支持

耐用性好
这种工具能够抵御反复掉落、腐蚀性化学品和恶劣的工作环境，可随时随地投入工作。

可靠性高
耐用性好，能够出色地完成一件又一件的工作，因此在造船、重型机械、铁路、石油天然气、汽车修理厂甚至航空航天环境中都会配有这种工具。

舒适性好
无论您是在修理汽车还是建造房屋，这些修磨机都能借助舒适且符合人体工程学的外形确保您很好地完成工作，并减轻疲劳。

其他特性

G1 系列的功率为 0.3 KW，尺寸虽小，动力强劲
极其适合轻质材料清除、清洁粗糙铸件、零件除毛刺、清理焊缝以及其他修整任务。
符合人体工程学的 D 形手柄设计
取下一个螺母就能完成所有马达保养

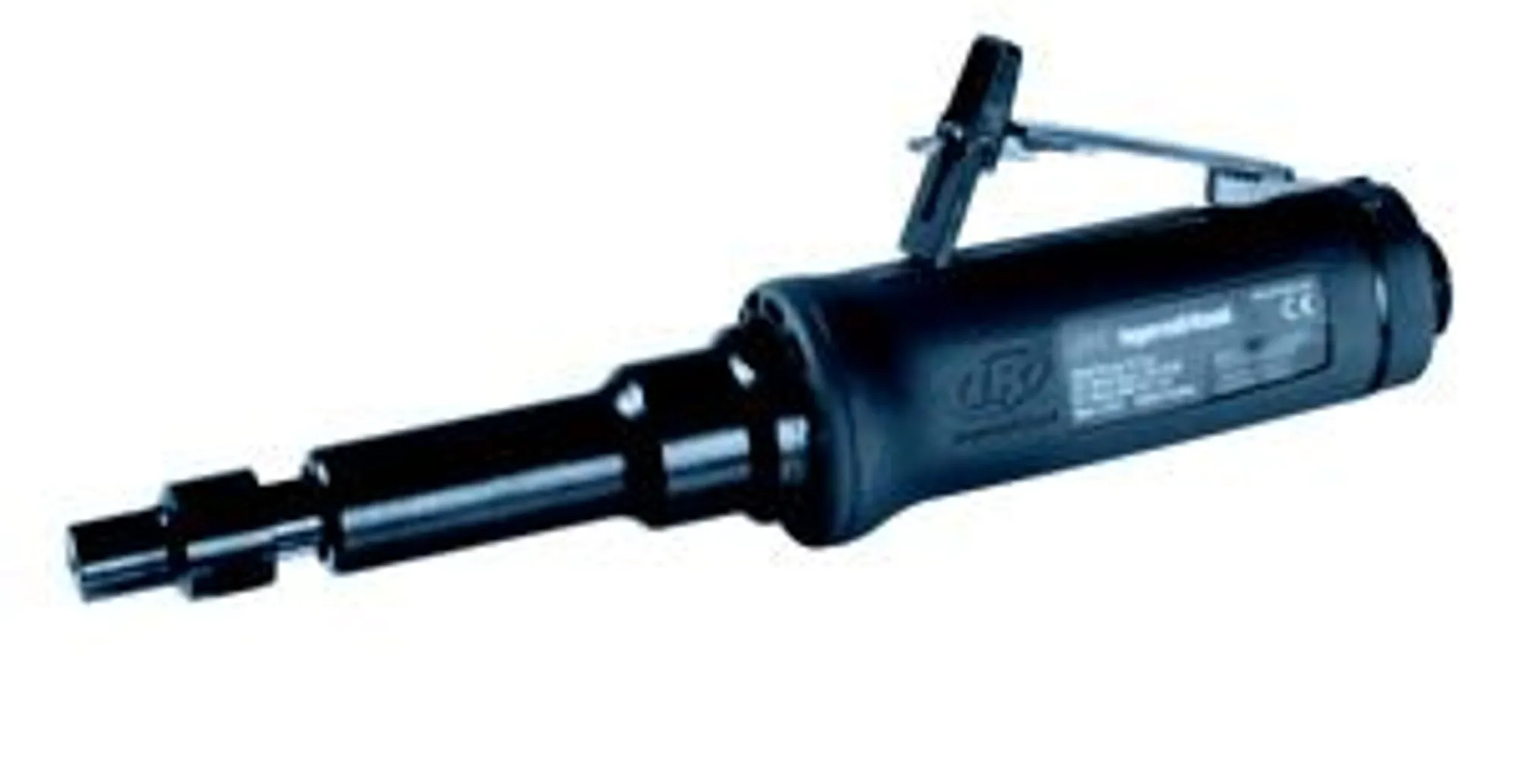

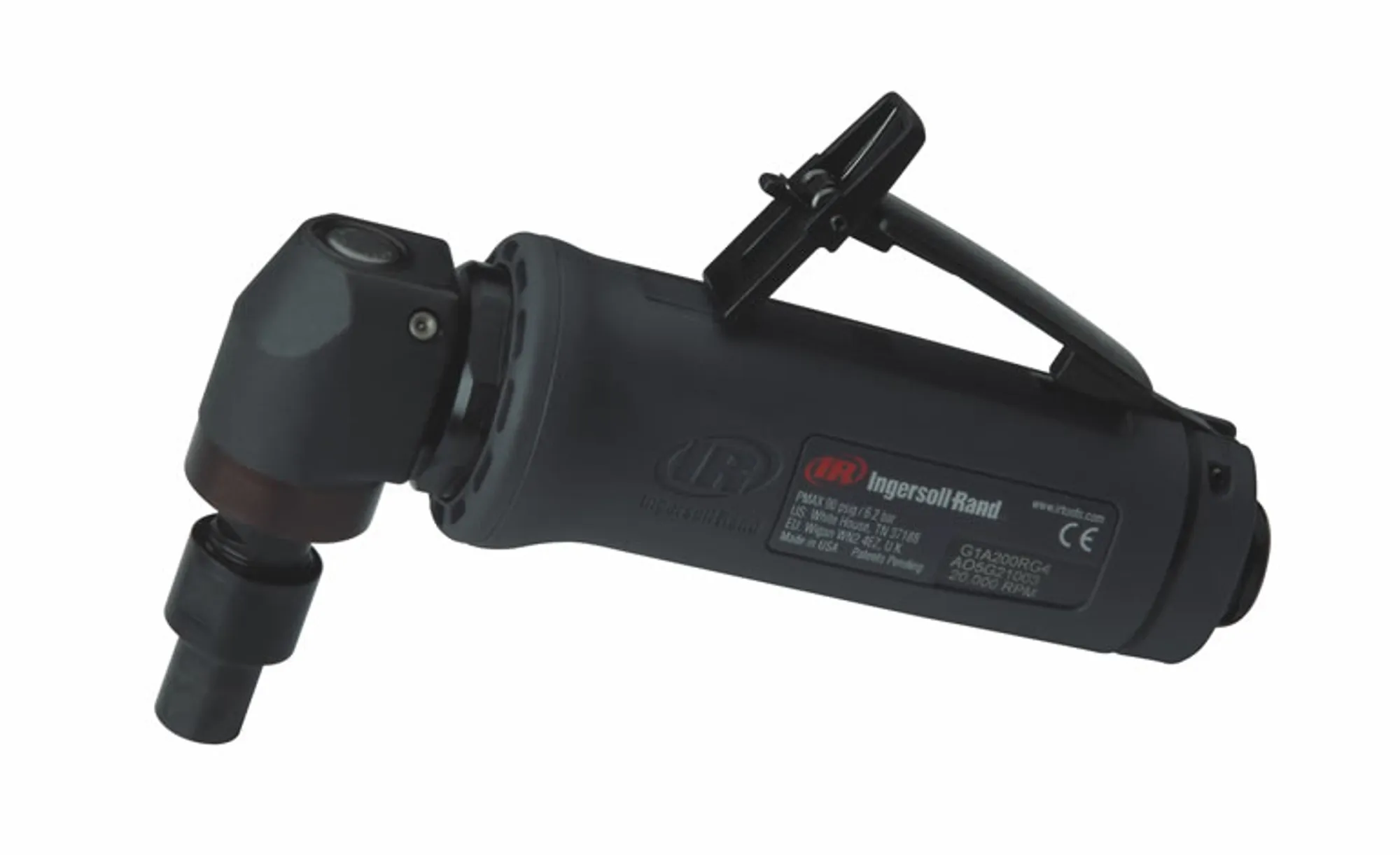

提供弯头、横向和加长横向配置
这款工具采用软式安装系统，可减少振动，延长电机和开关寿命
1 年保修

<table>

<thead>

<tr>

<th>Model</th>

<th>Rated Power (hp)</th>

<th>Rated Power (kW)</th>

<th>Max Free Speed (rpm)</th>

<th>Output</th>

<th>Weight (lbs)</th>

<th>Weight (kg)</th>

<th>Length (in)</th>

<th>Length (mm)</th>

<th>Air Consumption @ Load (cfm)</th>

<th>Air Consumption @ Load (L/min)</th>

<th>Air Inlet Size (in)</th>

<th>Exhaust</th>

<th>Vibration m/s2</th>

<th>Min Hose Size (in)</th>

<th>Min Hose Size (mm)</th>

</tr>

</thead>

<tbody>

<tr>

<td>G1A120FG4</td>

<td>0.4</td>

<td>0.3</td>

<td>12000</td>

<td>Collet- 1/4 in.</td>

<td>1.1</td>

<td>0.5</td>

<td>6</td>

<td>152</td>

<td>19</td>

<td>538</td>

<td>1/4</td>

<td>Front</td>

<td>3.4</td>

<td>uncertainty: 0.9</td>

<td>3/8</td>

</tr>

<tr>

<td>G1A120RG4</td>

<td>0.4</td>

<td>0.3</td>

<td>12000</td>

<td>Collet- 1/4 in.</td>

<td>1.1</td>

<td>0.5</td>

<td>6</td>

<td>152</td>

<td>19</td>

<td>538</td>

<td>1/4</td>

<td>Rear</td>

<td>3.4</td>

<td>uncertainty: 0.9</td>

<td>3/8</td>

</tr>

<tr>

<td>G1A200FG4</td>

<td>0.4</td>

<td>0.3</td>

<td>20000</td>

<td>Collet- 1/4 in.</td>

<td>1.1</td>

<td>0.5</td>

<td>6</td>

<td>152</td>

<td>25</td>

<td>708</td>

<td>1/4</td>

<td>Front</td>

<td>5.6</td>

<td>uncertainty: 1.1</td>

<td>3/8</td>

</tr>

<tr>

<td>G1A200RG4</td>

<td>0.4</td>

<td>0.3</td>

<td>20000</td>

<td>Collet- 1/4 in.</td>

<td>1.1</td>

<td>0.5</td>

<td>6</td>

<td>152</td>

<td>25</td>

<td>708</td>

<td>1/4</td>

<td>Rear</td>

<td>5.6</td>

<td>uncertainty: 1.1</td>

<td>3/8</td>

</tr>

<tr>

<td>G1H200FG4</td>

<td>0.4</td>

<td>0.3</td>

<td>20000</td>

<td>Collet- 1/4 in.</td>

<td>0.9</td>

<td>0.4</td>

<td>6.13</td>

<td>155</td>

<td>19</td>

<td>538</td>

<td>1/4</td>

<td>Front</td>

<td>2.9</td>

<td>uncertainty: 1.7</td>

<td>3/8</td>

</tr>

<tr>

<td>G1H200PG4M</td>

<td>0.4</td>

<td>0.3</td>

<td>20000</td>

<td>Collett- 6 mm</td>

<td>0.9</td>

<td>0.41</td>

<td>6.13</td>

<td>156</td>

<td></td>

<td></td>

<td>1/4</td>

<td>Piped Away</td>

<td>2.9</td>

<td>5/16</td>

<td></td>

</tr>

<tr>

<td>G1H200RG4</td>

<td>0.4</td>

<td>0.3</td>

<td>20000</td>

<td>Collet- 1/4 in.</td>

<td>0.9</td>

<td>0.4</td>

<td>6.13</td>

<td>155</td>

<td>19</td>

<td>538</td>

<td>1/4</td>

<td>Rear</td>

<td>2.9</td>

<td>uncertainty: 1.7</td>

<td>3/8</td>

</tr>

<tr>

<td>G1H250PG4M</td>

<td>0.4</td>

<td>0.3</td>

<td>25000</td>

<td>Collett- 6 mm</td>

<td></td>

<td></td>

<td></td>

<td></td>

<td></td>

<td></td>

<td></td>

<td>Piped Away</td>

<td>2.5</td>

<td></td>

<td></td>

</tr>

<tr>

<td>G1H250RG4</td>

<td>0.4</td>

<td>0.3</td>

<td>25000</td>

<td>Collet- 1/4 in.</td>

<td>0.9</td>

<td>0.4</td>

<td>6.13</td>

<td>155</td>

<td>20</td>

<td>566</td>

<td>1/4</td>

<td>Rear</td>

<td>2.5</td>

<td>uncertainty: 1.4</td>

<td>3/8</td>

</tr>

<tr>

<td>G1H350FG4</td>

<td>0.4</td>

<td>0.3</td>

<td>35000</td>

<td>Collet- 1/4 in.</td>

<td>0.9</td>

<td>0.4</td>

<td>6.13</td>

<td>155</td>

<td>25</td>

<td>708</td>

<td>1/4</td>

<td>Front</td>

<td>&lt; 2.5</td>

<td>3/8</td>

<td>10</td>

</tr>

<tr>

<td>G1H350PG4M</td>

<td>0.4</td>

<td>0.3</td>

<td>35000</td>

<td>Collett- 6 mm</td>

<td></td>

<td></td>

<td></td>

<td></td>

<td></td>

<td></td>

<td></td>

<td>Piped Away</td>

<td>&lt;2.5</td>

<td></td>

<td></td>

</tr>

<tr>

<td>G1H350RG4</td>

<td>0.4</td>

<td>0.3</td>

<td>35000</td>

<td>Collet- 1/4 in.</td>

<td>0.9</td>

<td>0.4</td>

<td>6.13</td>

<td>155</td>

<td>25</td>

<td>708</td>

<td>1/4</td>

<td>Rear</td>

<td>&lt; 2.5</td>

<td>3/8</td>

<td>10</td>

</tr>

<tr>

<td>G1X200RG4</td>

<td>0.4</td>

<td>0.3</td>

<td>20000</td>

<td>Collet- 1/4 in.</td>

<td>1.3</td>

<td>0.6</td>

<td>9.13</td>

<td>231</td>

<td>25</td>

<td>708</td>

<td>1/4</td>

<td>Rear</td>

<td>&lt; 2.5</td>

<td>3/8</td>

<td>10</td>

</tr>

<tr>

<td>G1X250RG4</td>

<td>0.4</td>

<td>0.3</td>

<td>25000</td>

<td>Collet- 1/4 in.</td>

<td>1.3</td>

<td>0.6</td>

<td>9.13</td>

<td>231</td>

<td>25</td>

<td>708</td>

<td>1/4</td>

<td>Rear</td>

<td>&lt; 2.5</td>

<td>3/8</td>

<td>10</td>

</tr>

<tr>

<td>G1X350RG4</td>

<td>0.4</td>

<td>0.3</td>

<td>35000</td>

<td>Collet- 1/4 in.</td>

<td>1.3</td>

<td>0.6</td>

<td>9.13</td>

<td>231</td>

<td>25</td>

<td>708</td>

<td>1/4</td>

<td>Rear</td>

<td>&lt; 2.5</td>

<td>3/8</td>

<td>10</td>

</tr>

<tr>

<td>G1A200PG4M</td>

<td>0.40</td>

<td>0.30</td>

<td>20000</td>

<td>6mm</td>

<td>1.10</td>

<td>0.50</td>

<td>5.98</td>

<td>152</td>

<td>25</td>

<td>708</td>

<td>1/4"</td>

<td>Piped Away</td>

<td>5.6/1.1</td>

<td>0.31</td>

<td>8</td>

</tr>

<tr>

<td>G1X350PG4M</td>

<td>0.40</td>

<td>0.30</td>

<td>35000</td>

<td>6mm</td>

<td>1.3</td>

<td>0.59</td>

<td>9.1</td>

<td>232</td>

<td>9.1</td>

<td>232</td>

<td>1/4"</td>

<td>Piped Away</td>

<td>&lt;2.5</td>

<td>0.31</td>

<td>8</td>

</tr>

<tr>

<td>G1A120PS4</td>

<td>0.40</td>

<td>0.30</td>

<td>12000</td>

<td>1/4"-20</td>

<td>1.10</td>

<td>0.50</td>

<td>5.98</td>

<td>152</td>

<td>18.96</td>

<td>537</td>

<td>1/4"</td>

<td>Piped Away</td>

<td>3.0/1.0</td>

<td>0.31</td>

<td>8</td>

</tr>

<tr>

<td>G1A200PG4M</td>

<td>0.40</td>

<td>0.30</td>

<td>20000</td>

<td>6mm</td>

<td>1.10</td>

<td>0.50</td>

<td>5.98</td>

<td>152</td>

<td>25</td>

<td>708</td>

<td>1/4"</td>

<td>Piped Away</td>

<td>5.6/1.1</td>

<td>0.31</td>

<td>8</td>

</tr>

<tr>

<td>G1A200PS4</td>

<td>0.40</td>

<td>0.30</td>

<td>20000</td>

<td>1/4"-20</td>

<td>1.10</td>

<td>0.50</td>

<td>5.98</td>

<td>152</td>

<td>25</td>

<td>708</td>

<td>1/4"</td>

<td>Piped Away</td>

<td>&lt;2.5</td>

<td>0.31</td>

<td>8</td>

</tr>

<tr>

<td>G1A120PG4M</td>

<td>0.40</td>

<td>.30</td>

<td>12000</td>

<td>6mm</td>

<td>1.10</td>

<td>0.50</td>

<td>5.98</td>

<td>152</td>

<td>18.96</td>

<td>537</td>

<td>1/4"</td>

<td>Piped Away</td>

<td>3.4/0.9</td>

<td>0.39</td>

<td>10</td>

</tr>

</tbody>

</table>
