可达性好
Revolution 系列可采用直柄、弯头和加长配置，适合用于各种工作，即使是难进入的位置也能到达。
舒适性好
Revolution 系列修磨机配备复合材料外壳，轻盈并可舒适贴合，在温度波动条件下可为操作员提供保护。

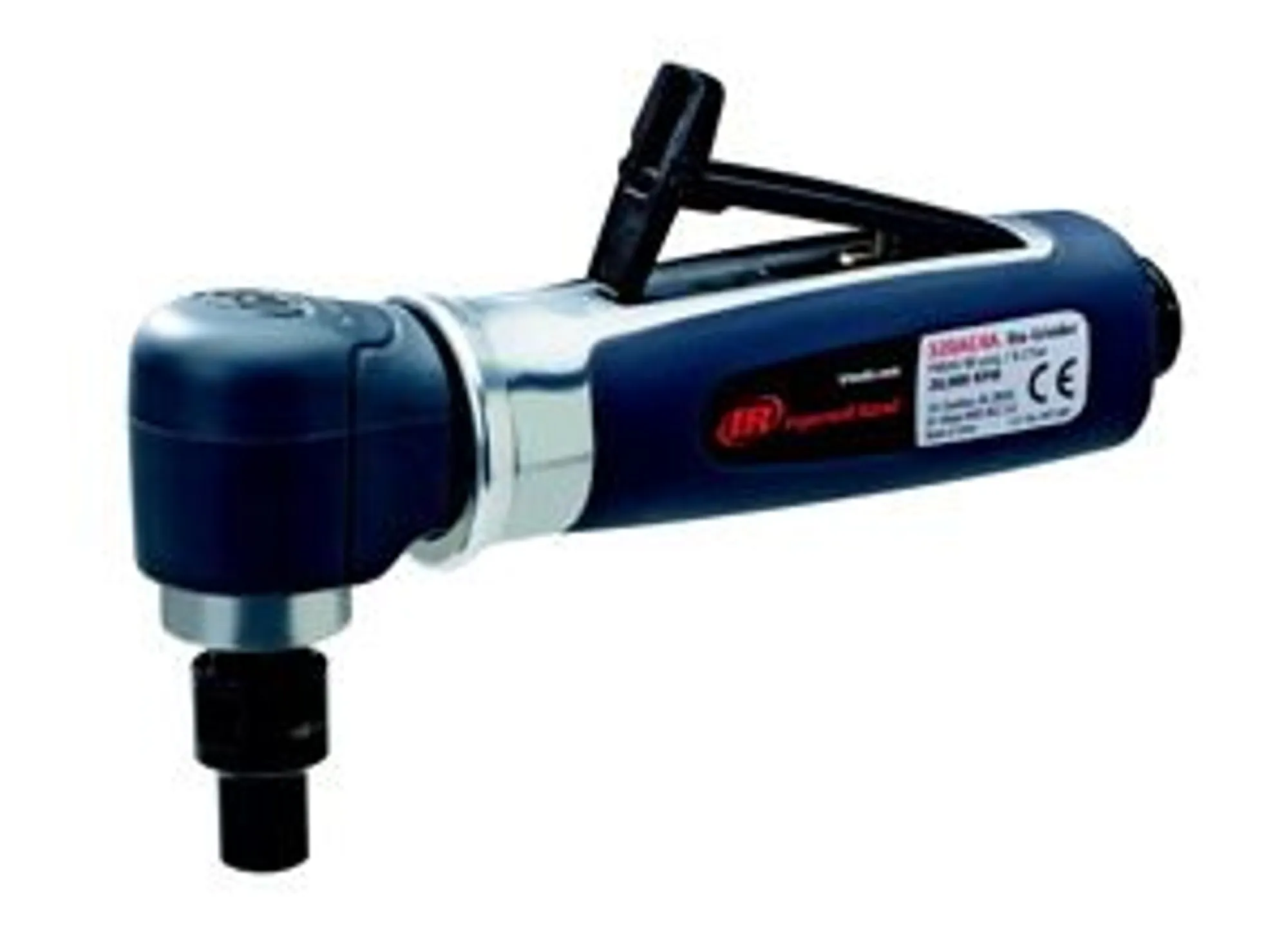

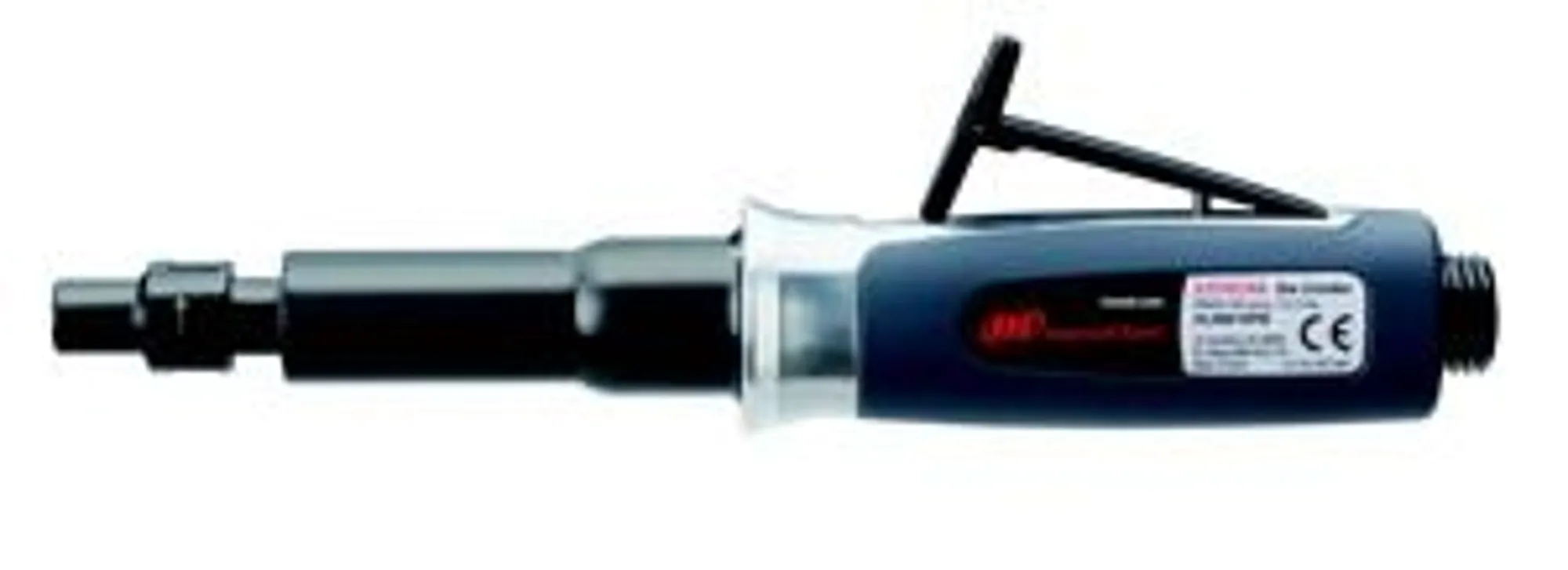

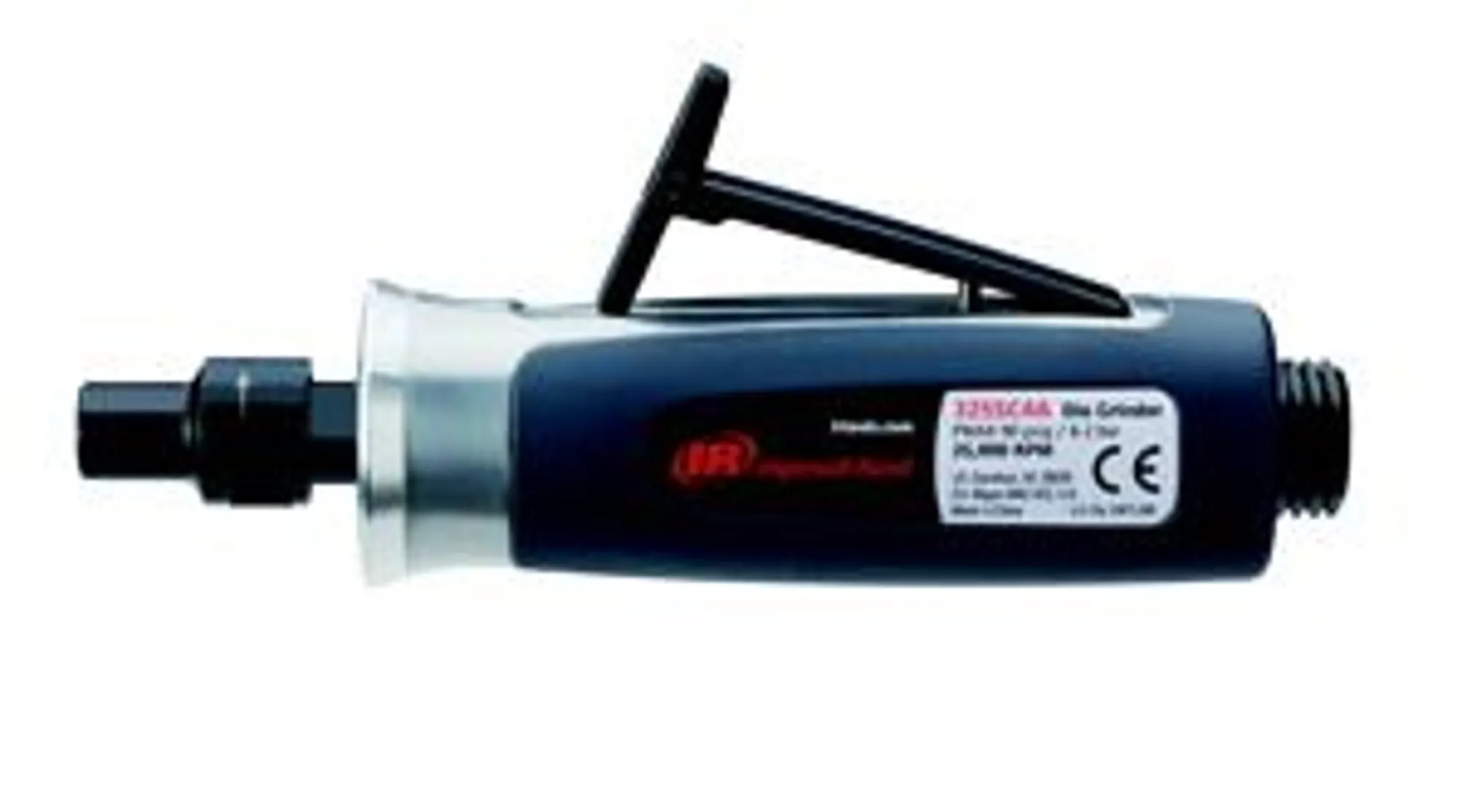

Revolution 系列修磨机
| Model | Rated Power (hp) | Rated Power (kW) | Max Free Speed (rpm) | Output | Weight (lbs) | Weight (kg) | Length (in) | Length (mm) | Air Consumption @ Load (cfm) | Air Consumption @ Load (L/min) | Air Inlet Size (in) | Exhaust | Vibration m/s2 | Min Hose Size (in) | Min Hose Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 312AC4A | 0.4 | 0.3 | 12000 | Collet- 1/4 in. | 1.2 | 0.55 | 6.7 | 170 | 32 | 908 | 1/4 | Rear | 3.4 | uncertainty: 1.0 | 3/8 |
| 314AC4A | 0.33 | 0.25 | 14000 | Collet- 1/4 in. | 1.2 | 0.55 | 6.7 | 170 | 30 | 851 | 1/4 | Rear | 3.2 | uncertainty: 0.7 | 3/8 |
| 320AC4A | 0.4 | 0.3 | 20000 | Collet- 1/4 in. | 1.2 | 0.55 | 6.7 | 170 | 32 | 908 | 1/4 | Rear | 2.5 | uncertainty: 1.1 | 3/8 |
| 325SC4A | 0.4 | 0.3 | 25000 | Collet- 1/4 in. | 0.9 | 0.43 | 6.5 | 166 | 32 | 908 | 1/4 | Rear | 2.6 | uncertainty: 1.1 | 3/8 |
| 325XC4A | 0.4 | 0.3 | 25000 | Collet- 1/4 in. | 1.4 | 0.62 | 9.6 | 244 | 33 | 936 | 1/4 | Rear | < 2.5 | 3/8 | 10 |
| 330SC4A | 0.33 | 0.25 | 30000 | Collet- 1/4 in. | 0.9 | 0.43 | 6.5 | 166 | 30 | 851 | 1/4 | Rear | 3.6 | uncertainty: 1.9 | 3/8 |
| 330XC4A | 0.33 | 0.25 | 30000 | Collet- 1/4 in. | 1.4 | 0.62 | 9.6 | 244 | 30 | 851 | 1/4 | Rear | < 2.5 | 3/8 | 10 |
| 335SC4A | 0.37 | 0.28 | 35000 | Collet- 1/4 in. | 0.9 | 0.43 | 6.5 | 166 | 30 | 851 | 1/4 | Rear | 3.0 | uncertainty: 0.8 | 3/8 |
