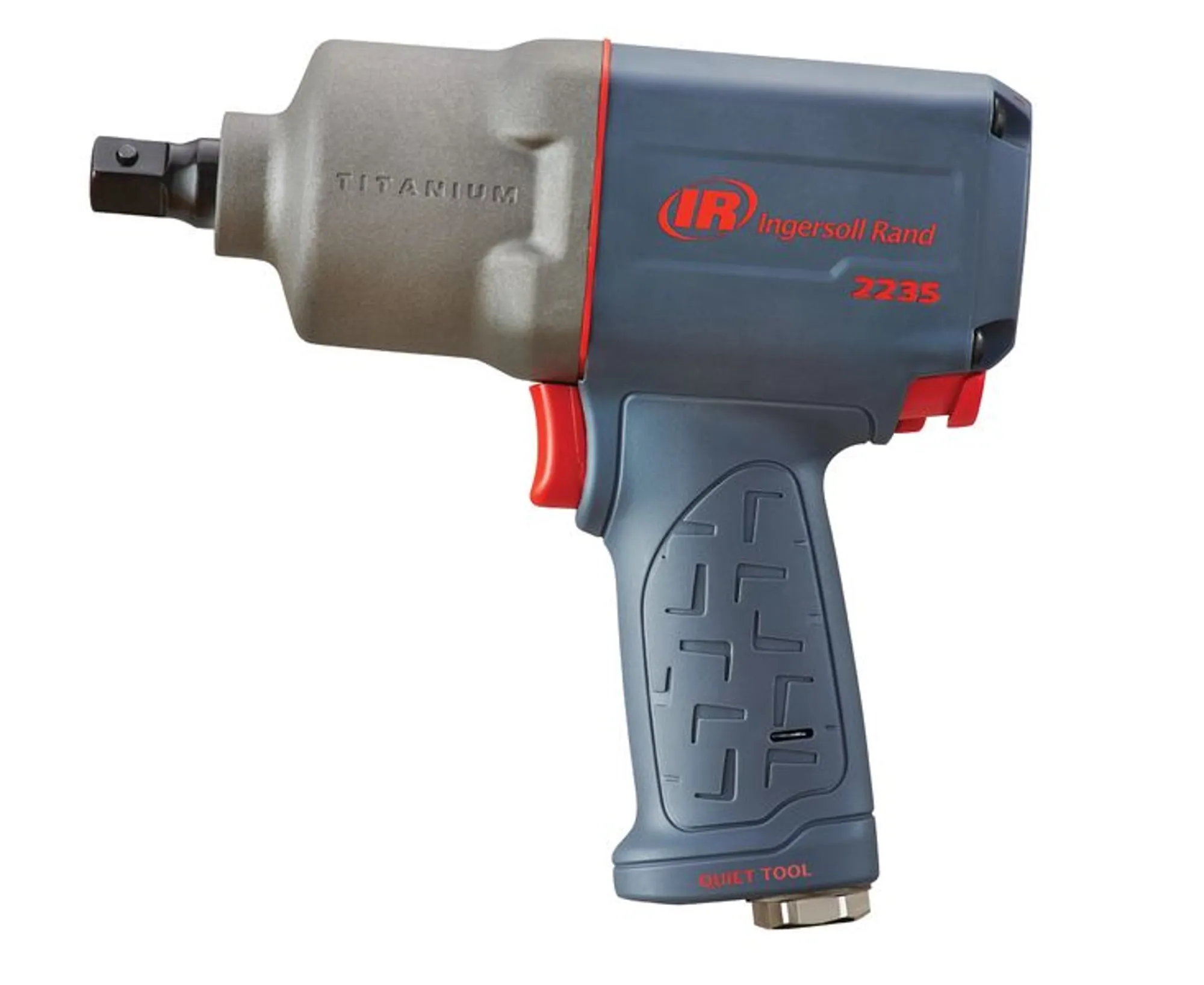

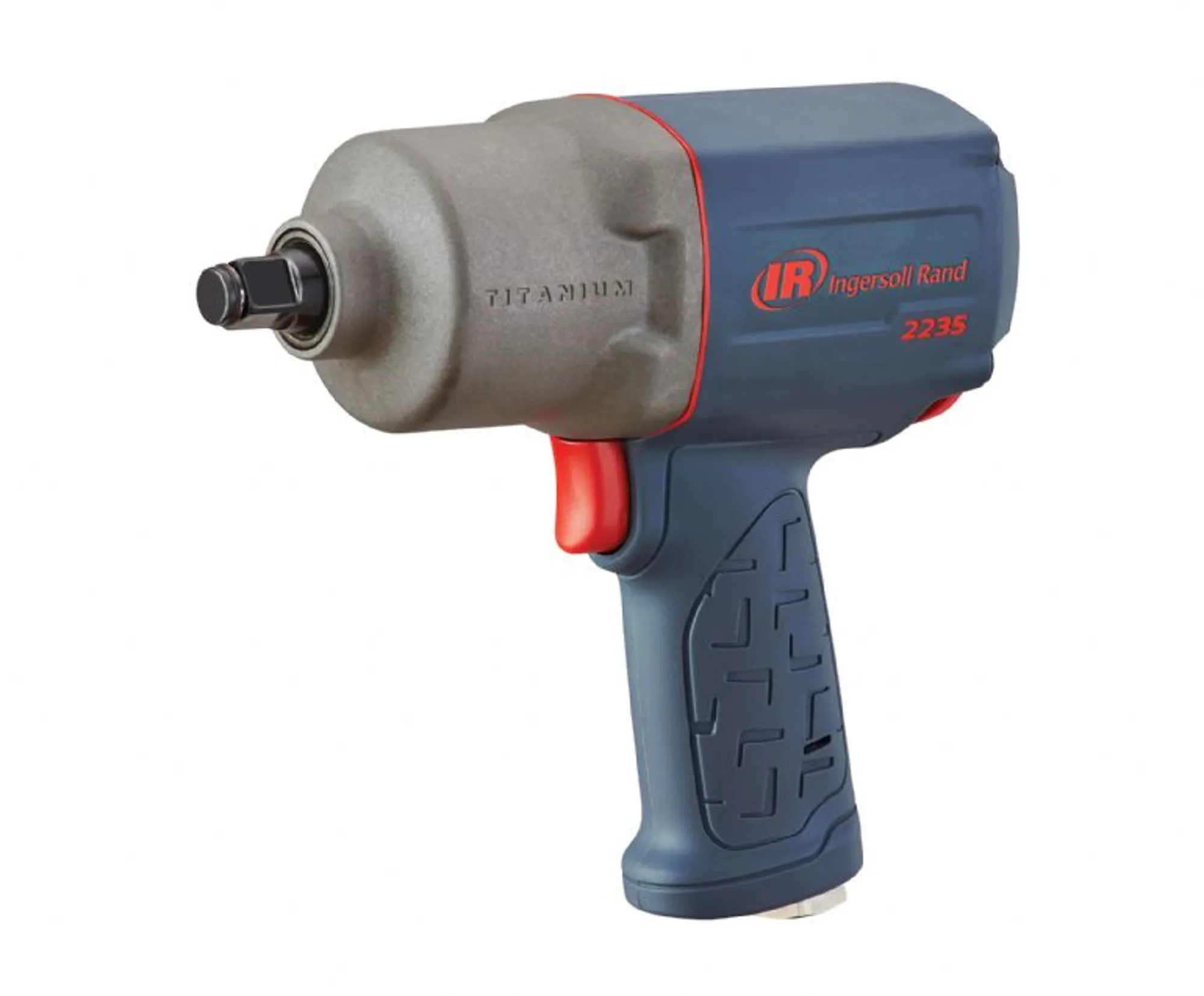

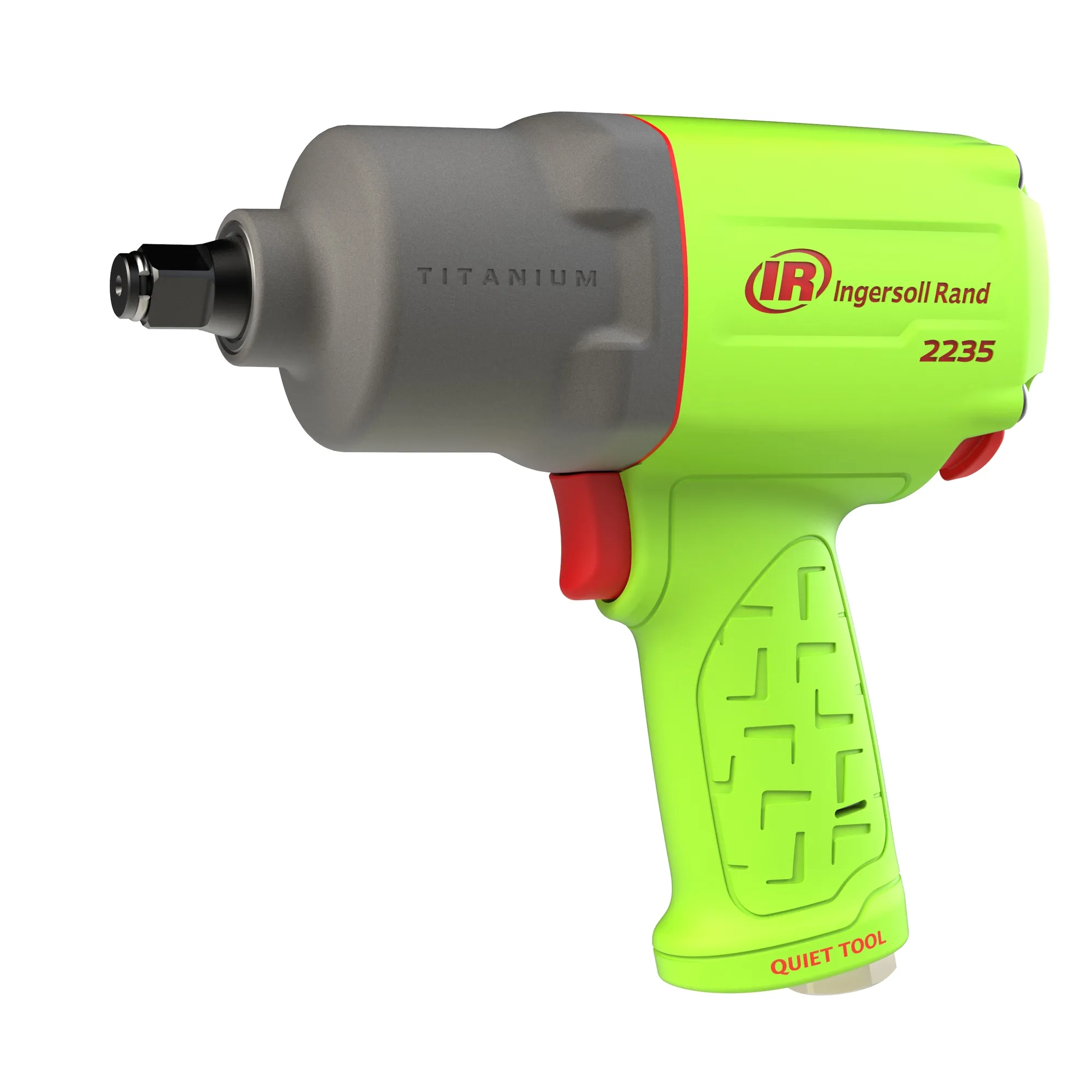

2235TiMAX 系列冲击扳手

动力强劲：这款工具采用叶片马达，动力强劲、扭矩大，经过优化后提高了安全性，让您更好地操控工具。

耐用性好：您可以随意反复让其掉落 — 这款冲击扳手即使在最恶劣的环境中也有出色表现。

可靠性高：如果您正在寻找能够耐用多年的冲击扳手，2235TiMAX 系列正是您的专业之选。

保修：2235TiMAX 系列享受两年制造保修，任何缺陷或严重问题都可保修。

• 冲击机构和电机经过精心调校，扭矩更大、更耐用、效率更高。
• 螺母切断扭矩达 1,350 ft-lb
• 这款气动冲击扳手重量轻、平衡性好，重量仅 4.6 lbs
• 这款气动冲击扳手设计采用钛合金锤套，坚固耐用，保护内部部件
• 外壳抗冲击、耐化学腐蚀，可抵御反复掉落和各种液体
• 2235QTiMAX 和 2235QTiMAX-2 采用安静工具技术，降低噪声，但不影响出色的动力性能。
• 这款工具经过优化，适合车辆维修行业、重型卡车、轮胎更换、车队维护、汽车修理厂、一般工业应用、MRO、轨道、重工业、石油天然气、造船和建筑
• 2 年保修

<table>

<thead>

<tr>

<th>Model</th>

<th>Configuration</th>

<th>Actuation</th>

<th>Drive Size</th>

<th>Drive Type</th>

<th>Nut-Busting Torque (ft-lbs)</th>

<th>Nut-Busting Torque (Nm)</th>

<th>Forward Torque (ft-lbs)</th>

<th>Forward Torque (Nm)</th>

<th>Max Reverse Torque (ft-lbs)</th>

<th>Max Reverse Torque (Nm)</th>

<th>Blows per minute</th>

<th>Free Speed (RPM)</th>

<th>Impacting Sound Level dB(A) -- ISO15744 (pressure/power)</th>

<th>Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power)</th>

<th>Vibration Level m/s2 (K)</th>

<th>Weight (lbs)</th>

<th>Weight (kg)</th>

<th>Width (in)</th>

<th>Width (mm)</th>

<th>Height (in)</th>

<th>Height (mm)</th>

<th>Length (in)</th>

<th>Length (mm)</th>

<th>Air Inlet</th>

<th>Min Hose Size (in)</th>

<th>Min Hose Size (mm)</th>

<th>Air Consumption @ Load (cfm)</th>

<th>Air Consumption @ Load (L/min)</th>

<th>Average Air Consumption (cfm)</th>

<th>Average Air Consumption (L/min)</th>

<th>PSI</th>

<th>Bar</th>

</tr>

</thead>

<tbody>

<tr>

<td>2235QTiMAX</td>

<td>Pistol</td>

<td>Trigger</td>

<td>1/2 in.</td>

<td>Square, Hog-Ring</td>

<td>1300</td>

<td>1760</td>

<td>870</td>

<td>1180</td>

<td>900</td>

<td>1220</td>

<td>1220</td>

<td>8500</td>

<td>91.9 / 102.9</td>

<td>88.7 / 99.7</td>

<td>9 (2.8)</td>

<td>4.7</td>

<td>2.1</td>

<td>2.9</td>

<td>74</td>

<td>7.2</td>

<td>183</td>

<td>7.6</td>

<td>193</td>

<td>1/4 in.</td>

<td>3/8</td>

<td>10</td>

<td>24</td>

<td>680</td>

<td>6</td>

<td>170</td>

<td>90</td>

<td>6.2</td>

</tr>

<tr>

<td>2235QTiMAX-2</td>

<td>Pistol</td>

<td>Trigger</td>

<td>1/2 in.</td>

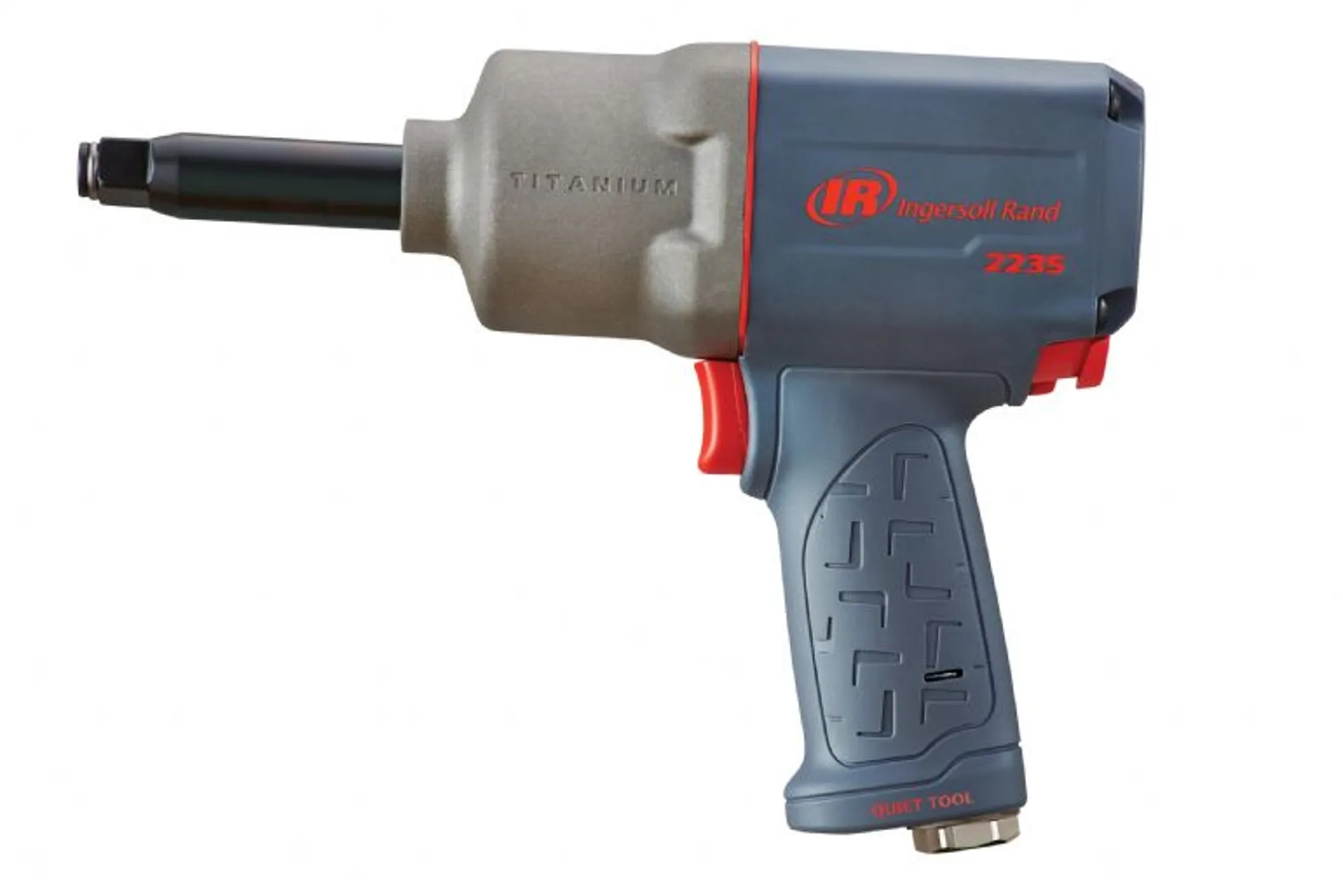

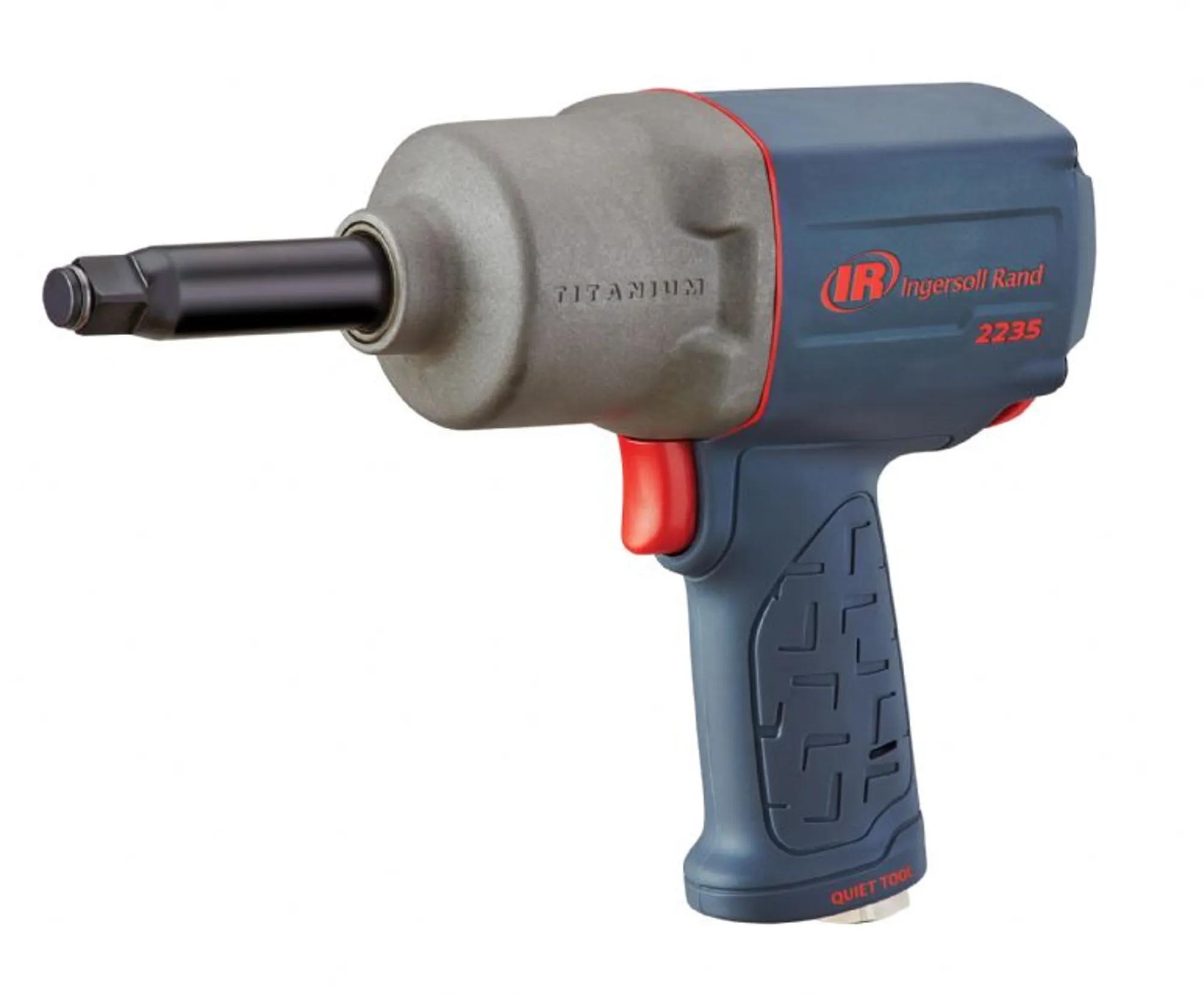

<td>Square, Hog-Ring, 2 in. Ext.</td>

<td>1300</td>

<td>1760</td>

<td>870</td>

<td>1180</td>

<td>900</td>

<td>1220</td>

<td>1220</td>

<td>8500</td>

<td>91.9 / 102.9</td>

<td>88.7 / 99.7</td>

<td>7.7 (2.7)</td>

<td>5</td>

<td>2.3</td>

<td>2.9</td>

<td>74</td>

<td>7.2</td>

<td>183</td>

<td>9.6</td>

<td>244</td>

<td>1/4 in.</td>

<td>3/8</td>

<td>10</td>

<td>24</td>

<td>680</td>

<td>6</td>

<td>170</td>

<td>90</td>

<td>6.2</td>

</tr>

<tr>

<td>2235TiMAX</td>

<td>Pistol</td>

<td>Trigger</td>

<td>1/2 in.</td>

<td>Square, Hog-Ring</td>

<td>1350</td>

<td>1830</td>

<td>900</td>

<td>1220</td>

<td>930</td>

<td>1260</td>

<td>1220</td>

<td>8500</td>

<td>98.0 / 109.0</td>

<td>103.6 / 114.6</td>

<td>9 (2.8)</td>

<td>4.6</td>

<td>2.1</td>

<td>2.9</td>

<td>74</td>

<td>7.2</td>

<td>183</td>

<td>7.6</td>

<td>193</td>

<td>1/4 in.</td>

<td>3/8</td>

<td>10</td>

<td>24</td>

<td>680</td>

<td>6</td>

<td>170</td>

<td>90</td>

<td>6.2</td>

</tr>

<tr>

<td>2235TiMAX-2</td>

<td>Pistol</td>

<td>Trigger</td>

<td>1/2 in.</td>

<td>Square, Hog-Ring, 2 in. Ext.</td>

<td>1350</td>

<td>1830</td>

<td>900</td>

<td>1220</td>

<td>930</td>

<td>1260</td>

<td>1220</td>

<td>8500</td>

<td>98.0 / 109.0</td>

<td>103.6 / 114.6</td>

<td>7.7 (2.7)</td>

<td>4.9</td>

<td>2.2</td>

<td>2.9</td>

<td>74</td>

<td>7.2</td>

<td>183</td>

<td>9.6</td>

<td>244</td>

<td>1/4 in.</td>

<td>3/8</td>

<td>10</td>

<td>24</td>

<td>680</td>

<td>6</td>

<td>170</td>

<td>90</td>

<td>6.2</td>

</tr>

</tbody>

</table>
