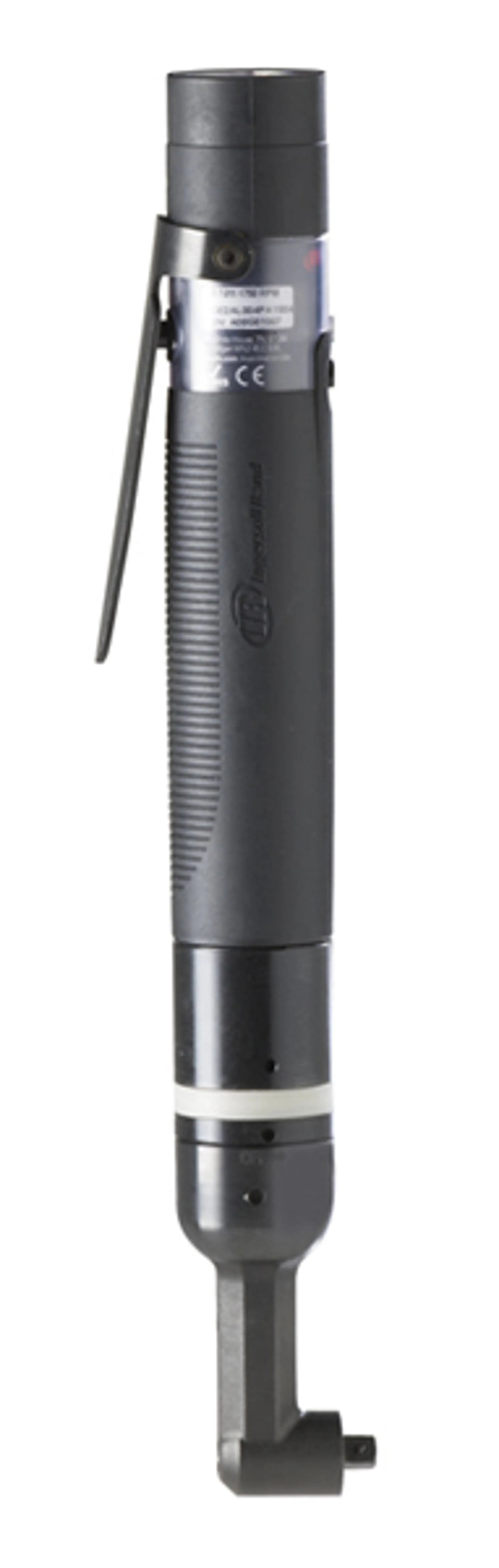

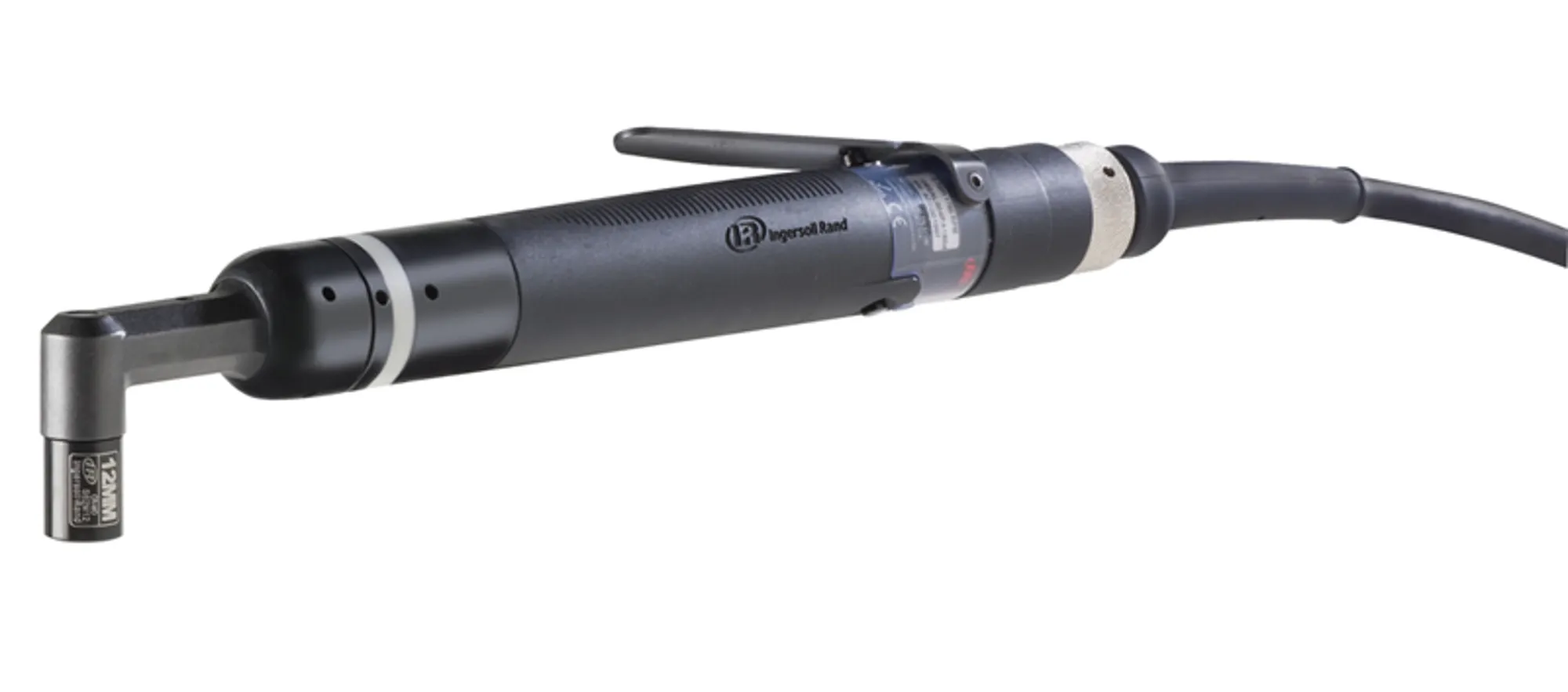

QE2 弯角系列

准确
闭环转换控制提供优异的精确度和可追溯性，实现高级扭矩控制策略。

多功能
可以按照您的需求定制，这些工具让您能够改变扭矩输出、机身风格、动作和拧紧轴类型。

可靠性高
采用重型齿轮传动机构，无刷直流电机和非接触式开关，该系列可靠性好、效率高。

使用方便
具有一系列功能，旨在增强用户体验，QE2 弯角系列能够让您专心工作、不分心。

安全性好
提供符合静电释放 (ESD) 安全和 RoHS 标准的选项。

<table>

<thead>

<tr>

<th>Model</th>

<th>Torque Range (Nm)</th>

<th>Torque Range (in-lbs)</th>

<th>Torque Range (ft-lbs)</th>

<th>Max Torque (Nm)</th>

<th>Actuation</th>

<th>Configuration</th>

<th>Free Speed (rpm)</th>

<th>Spindle Length (mm)</th>

<th>Float (mm)</th>

<th>Overall Length (mm)</th>

<th>Length (in)</th>

<th>Weight (kg)</th>

<th>Weight (lbs)</th>

<th>Drive (size/style)</th>

</tr>

</thead>

<tbody>

<tr>

<td>QE2AL003PA1S04</td>

<td>0.8 - 4</td>

<td>7.1 - 35.4</td>

<td>0.6-3.0</td>

<td>3</td>

<td>Lever Start</td>

<td>Angle</td>

<td>2000</td>

<td>N/A</td>

<td>N/A</td>

<td>312</td>

<td>12.283464566929135</td>

<td>0.83</td>

<td>1.82</td>

<td>1/4 in. Square</td>

</tr>

<tr>

<td>QE2AL005PA3H04</td>

<td>1.0 - 5.0</td>

<td>8.9 - 44.3</td>

<td>0.7-3.7</td>

<td>5</td>

<td>Lever Start</td>

<td>Angle</td>

<td>1590</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>1/4 in. Hex Detent</td>

</tr>

<tr>

<td>QE2AL005PA3Q04</td>

<td>1.0 - 5.0</td>

<td>8.9 - 44.3</td>

<td>0.7-3.7</td>

<td>5</td>

<td>Lever Start</td>

<td>Angle</td>

<td>1590</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>1/4 in. Quick Change</td>

</tr>

<tr>

<td>QE2AL005PA3S04</td>

<td>1.0 - 5.0</td>

<td>8.9 - 44.3</td>

<td>0.7-3.7</td>

<td>5</td>

<td>Lever Start</td>

<td>Angle</td>

<td>1590</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>1/4 in. Square</td>

</tr>

<tr>

<td>QE2AL005PA3S06</td>

<td>1.0 - 5.0</td>

<td>8.9 - 44.3</td>

<td>0.7-3.7</td>

<td>5</td>

<td>Lever Start</td>

<td>Angle</td>

<td>1590</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>3/8 in. Square</td>

</tr>

<tr>

<td>QE2AL007PA3H04</td>

<td>1.4 - 7.0</td>

<td>12.4 - 62.0</td>

<td>1.0-5.2</td>

<td>7</td>

<td>Lever Start</td>

<td>Angle</td>

<td>1100</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>1/4 in. Hex Detent</td>

</tr>

<tr>

<td>QE2AL007PA3Q04</td>

<td>1.4 - 7.0</td>

<td>12.4 - 62.0</td>

<td>1.0-5.2</td>

<td>7</td>

<td>Lever Start</td>

<td>Angle</td>

<td>1100</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>1/4 in. Quick Change</td>

</tr>

<tr>

<td>QE2AL007PA3S04</td>

<td>1.4 - 7.0</td>

<td>12.4 - 62.0</td>

<td>1.0-5.2</td>

<td>7</td>

<td>Lever Start</td>

<td>Angle</td>

<td>1100</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>1/4 in. Square</td>

</tr>

<tr>

<td>QE2AL007PA3S06</td>

<td>1.4 - 7.0</td>

<td>12.4 - 62.0</td>

<td>1.0-5.2</td>

<td>7</td>

<td>Lever Start</td>

<td>Angle</td>

<td>1100</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>3/8 in. Square</td>

</tr>

<tr>

<td>QE2AL010PA3H04</td>

<td>2.0 - 10.0</td>

<td>17.7 - 88.5</td>

<td>1.5-7.4</td>

<td>10</td>

<td>Lever Start</td>

<td>Angle</td>

<td>800</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>1/4 in. Hex Detent</td>

</tr>

<tr>

<td>QE2AL010PA3Q04</td>

<td>2.0 - 10.0</td>

<td>17.7 - 88.5</td>

<td>1.5-7.4</td>

<td>10</td>

<td>Lever Start</td>

<td>Angle</td>

<td>800</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>1/4 in. Quick Change</td>

</tr>

<tr>

<td>QE2AL010PA3S04</td>

<td>2.0 - 10.0</td>

<td>17.7 - 88.5</td>

<td>1.5-7.4</td>

<td>10</td>

<td>Lever Start</td>

<td>Angle</td>

<td>800</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>1/4 in. Square</td>

</tr>

<tr>

<td>QE2AL010PA3S06</td>

<td>2.0 - 10.0</td>

<td>17.7 - 88.5</td>

<td>1.5-7.4</td>

<td>10</td>

<td>Lever Start</td>

<td>Angle</td>

<td>800</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>3/8 in. Square</td>

</tr>

<tr>

<td>QE2AL015PA3H04</td>

<td>3.0 - 15.0</td>

<td>26.6 - 132.8</td>

<td>2.2-11.1</td>

<td>15</td>

<td>Lever Start</td>

<td>Angle</td>

<td>560</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>1/4 in. Hex Detent</td>

</tr>

<tr>

<td>QE2AL015PA3Q04</td>

<td>3.0 - 15.0</td>

<td>26.6 - 132.8</td>

<td>2.2-11.1</td>

<td>15</td>

<td>Lever Start</td>

<td>Angle</td>

<td>560</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>1/4 in. Quick Change</td>

</tr>

<tr>

<td>QE2AL015PA3S04</td>

<td>3.0 - 15.0</td>

<td>26.6 - 132.8</td>

<td>2.2-11.1</td>

<td>15</td>

<td>Lever Start</td>

<td>Angle</td>

<td>560</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>1/4 in. Square</td>

</tr>

<tr>

<td>QE2AL015PA3S06</td>

<td>3.0 - 15.0</td>

<td>26.6 - 132.8</td>

<td>2.2-11.1</td>

<td>15</td>

<td>Lever Start</td>

<td>Angle</td>

<td>560</td>

<td>N/A</td>

<td>N/A</td>

<td>318</td>

<td>12.51968503937008</td>

<td>0.95</td>

<td>2.10</td>

<td>3/8 in. Square</td>

</tr>

</tbody>

</table>
